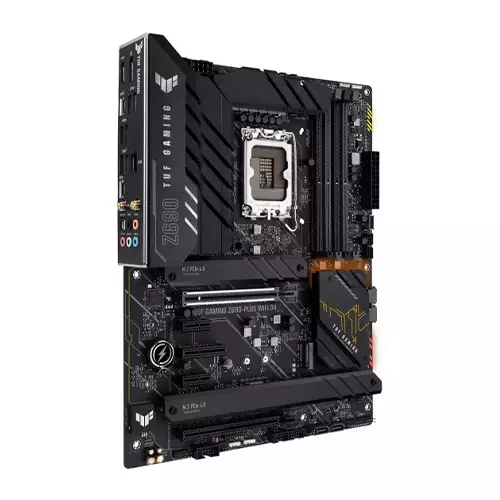

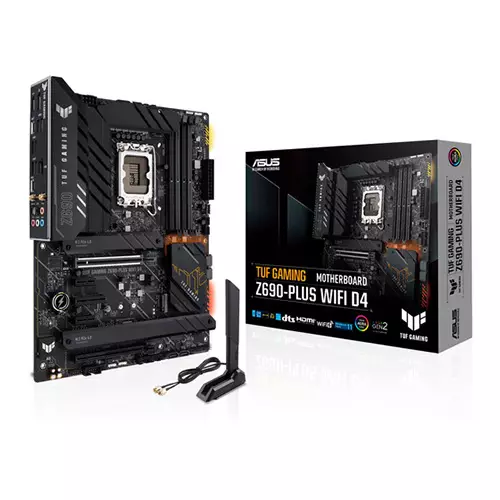

ASUS TUF Gaming Z690-Plus WiFi D4 LGA 1700 Intel 12th Gen ATX Motherboard
ASUS TUF Gaming Z690-Plus WiFi D4 LGA 1700 Intel 12th Gen ATX Motherboard
ASUS TUF Gaming Z690-Plus WiFi D4 LGA 1700 Intel 12th Gen ATX Motherboard - 1
ASUS TUF Gaming Z690-Plus WiFi D4 LGA 1700 Intel 12th Gen ATX Motherboard - 2

ASUS TUF Gaming Z690-Plus WiFi D4 LGA 1700 Intel 12th Gen ATX Motherboard

3 Reviews
Stock : Discontinued
PID : P00025063838
Brand : Asus
Model : TUF GAMING Z690-PLUS WIFI D4
Warranty : 3 Years
  • ATX Form Factor
  • Intel Z690 Chipset
  • LGA 1700 Socket
  • 4 x Dual-Channel DDR4 Slots

SPECIFICATIONS

Processor

Supported CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Mainboard

Chipset Intel Z690 Chipset
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Memory

Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)
/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

Storage

Supported Storage Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Intel® 12th Gen processors support PCIe 4.0 x4 mode

Intel® Z690 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

Graphics

Graphics 1 x DisplayPort

1 x HDMI port

Networking & Connectivity

WiFi Intel® Wi-Fi 6

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Audio & Microphone

Audio Realtek 7.1 Surround Sound High Definition Audio CODEC

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Supports up to 24-Bit/192 kHz playback

Audio Features

Audio Shielding

Rear optical S/PDIF out port

Premium audio capacitors

Dedicated audio PCB layers

Ports

Slots Intel® 12th Gen Processors*

1 x PCIe 5.0 x16 slot

Intel® Z690 Chipset**

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x4 slot

2 x PCIe 3.0 x1 slots
Internal I/O Ports Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header

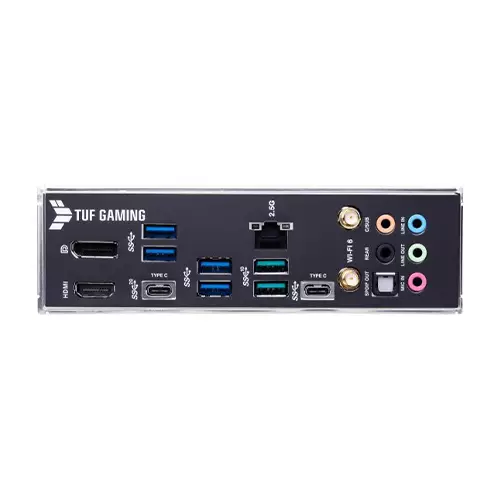

External I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)
1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port
USB Rear USB:Total 8 ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)

Front USB:Total 7 ports

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Physical Specification

Form Factor ATX
Dimension 30.5cm x 23.4cm

Warranty Information

Warranty 3 Years

DESCRIPTION

ASUS TUF Z690-Plus WIFI D4 Motherboard

The ASUS TUF Z690-PLUS WIFI D4 Motherboard from ASUS. Designed around Intel's 12th Gen processors, this ASUS TUF Z690-PLUS WIFI D4 Motherboard provides enhanced system-wide functionality by supporting a wide range of components, making it ideal for gaming enthusiasts. Based on the Intel Z690 chipset, you get an LGA1700 socket, four dual-channel DDR4 RAM slots, four SATA III ports, and four M.2 interfaces, all working in tandem to provide enhanced system performance. Connect a variety of graphics and utility cards with one PCIe 5.0 x16, one PCIe 3.0 x16, one PCIe 3.0 x4, and two PCIe 3.0 x1 slots. USB 3.2 Gen 1, Gen 2, and Gen 2x2 ports support a wide range of peripherals, including keyboards, mice, external drives, and more. Bluetooth 5.2 technology provides wireless connectivity for devices such as controllers and headphones. Wi-Fi 6 (802.11ax) connectivity allows you to use wireless networking or use the 2.5 Gigabit Ethernet port, both of which are suitable for competitive online gaming. Additionally, the ASUS TUF Z690-PLUS WIFI D4 Motherboard supports both Windows 10 and 11 (64-bit) right out of the box.




REVIEWS

Login to write a review.

Overall Rating

5 out of 5 stars
3
Total Reviews
5 star
3
4 star
0
3 star
0
2 star
0
1 star
0
Nuha

Very beautiful and performs without a hitch out of the box

14 November, 2021

Febrian

Another solid, high-value TUF-line motherboard from ASUS.

14 November, 2021

Rayhan Abdullah

Great MoBo! Buy it! I've purchased a lot of Asus components. And usually love them.

14 November, 2021

What is the ASUS TUF Gaming Z690-Plus WiFi D4 LGA 1700 Intel 12th Gen ATX Motherboard Price in Bangladesh 2026 ?

The Asus TUF GAMING Z690-PLUS WIFI D4 Price in BD is 29,449৳ . This ASUS TUF Gaming Z690-Plus WiFi D4 LGA 1700 Intel 12th Gen ATX Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 3 reviews. Tech Land BD Offers you Asus TUF GAMING Z690-PLUS WIFI D4 by 29,449৳ and its regular price is 31,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
