Asus TUF GAMING Z490-PLUS ATX motherboard
Asus TUF GAMING Z490-PLUS ATX motherboard
Asus TUF GAMING Z490-PLUS ATX motherboard - 1
Asus TUF GAMING Z490-PLUS ATX motherboard - 2
Asus TUF GAMING Z490-PLUS ATX motherboard - 3

Asus TUF GAMING Z490-PLUS ATX motherboard

0 Reviews
Stock : Discontinued
PID : P00025063032
Brand : Asus
Model : Z490-Plus
Warranty : 3 Years
  • 5.3 GHz clock speed
  • DDR4-2933 Memory
  • 2.5 G Ethernet
  • New Wi-Fi 6 Gig+

SPECIFICATIONS

Processor

Supported CPU Build in Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Mainboard

Chipset Intel Z490 Chipset
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Memory

Memory 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

Storage

Supported Storage Intel Z490 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
Intel Optane Memory Ready

Graphics

Multi-GPU Supports AMD 2-Way CrossFireX Technology
Graphics Integrated Graphics Processor
1 x DisplayPort 1.4
1 x HDMI 1.4b

Networking & Connectivity

LAN Intel I219-V 1Gb Ethernet
TUF LANGuard

Audio & Microphone

Audio Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
Optical S/PDIF out port(s) at back panel
Audio cover
Audio Shielding
Dedicated audio PCB layers
Premium Japanese audio capacitors

Ports

Slots Intel 10th Gen Processors:
1 x PCIe 3.0 x16 (x16 mode)
Intel Z490 Chipset:
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe x1
Internal I/O Ports 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header

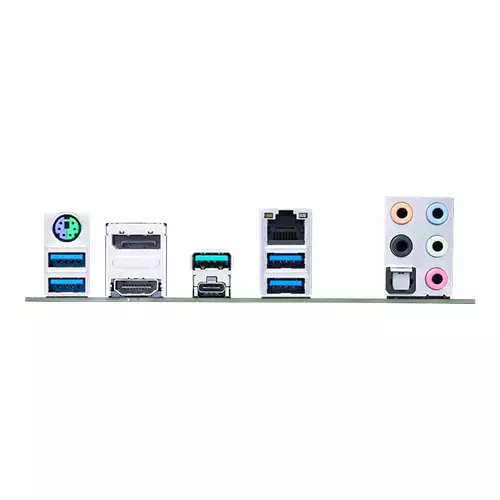

External I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
4 x USB 3.2 Gen 1 (blue) Type-A
1 x Optical S/PDIF out
5 x Audio jack(s)
USB 2 x USB 3.2 Gen 2 port(s)(1 + Type-A +1 + USB Type-C®)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®)
1 x USB 3.2 Gen 1 port(s)(2 x Type-A)
2 x USB 2.0 port(s)(4 x Type-A)
HDMI 1 x HDMI 1.4b

Others

Other Features ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
ASUS Enhanced DRAM Overcurrent Protection
ASUS ESD Guards
TUF LANGuard
ASUS Overvoltage Protection
ASUS SafeSlot
ASUS Stainless-Steel Back I/O
ASUS Q-Design
ASUS Q-DIMM
ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Q-Slot
Stylish heatsink
Procool
Standard RGB headers
Addressable Gen 2 RGB header

Physical Specification

Form Factor ATX Form Factor
Dimension 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty Information

Warranty 03 Year

DESCRIPTION

Asus TUF Gaming Z490-Plus motherboard in Bangladesh
TUF Gaming Z490-Plus distills essential elements of the latest Intel platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
TUF Z390 Plus Gaming
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for faster memory and storage, TUF Gaming Z490-Plus is the perfect foundation for your next high-core-count battle rig.
DrMOS
The onboard VRM of TUF Gaming Z490-Plus utilizes 12+2 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 10th Gen Intel Core processors demand.

EASY PC DIY
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
Build with confidence
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger

IMMERSIVE GAMING
TUF Gaming Z490-Plus provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
INTEL ETHERNET
Intel Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

NETWORK-OPTIMIZATION SOFTWARE
Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and an intuitive user interface, so you can reduce lag by up to 1.45X without expert knowledge. It even includes Game mode to prioritize game-related data transmissions, smoothing network operations every time you play

[product_table id="34" limit="10" type="filter" filter_category="6082"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Asus TUF GAMING Z490-PLUS ATX motherboard Price in Bangladesh 2026 ?

The Asus Z490-Plus Price in BD is 3,330৳ . This Asus TUF GAMING Z490-PLUS ATX motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus Z490-Plus by 3,330৳ and its regular price is 44,440৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
