Asus TUF H310M-PLUS GAMING LGA 1151 Micro-ATX Intel RGB Motherboard
Asus TUF H310M-PLUS GAMING LGA 1151 Micro-ATX Intel RGB Motherboard

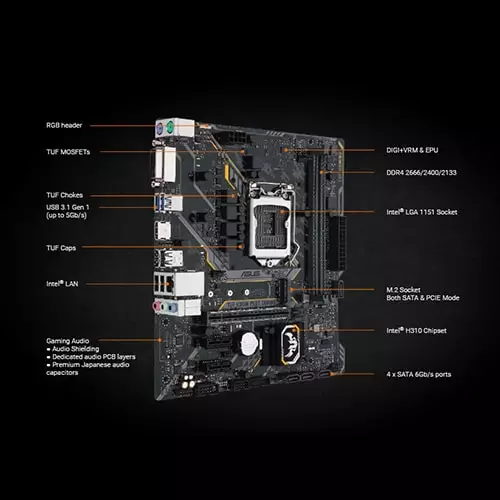

Asus TUF H310M-PLUS GAMING LGA 1151 Micro-ATX Intel RGB Motherboard - 1

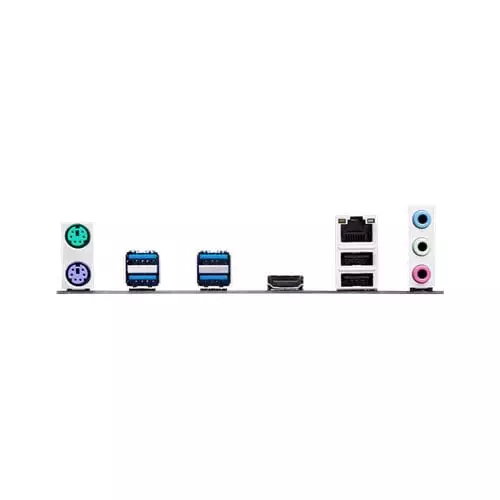

Asus TUF H310M-PLUS GAMING LGA 1151 Micro-ATX Intel RGB Motherboard - 2

Asus TUF H310M-PLUS GAMING LGA 1151 Micro-ATX Intel RGB Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061165
SKU : EFVLIHSVDC
Brand : Asus
Model : TUF H310M-PLUS GAMING
Warranty : 3 Years
  • Aura Sync RGB LED lighting
  • 20Gbps M.2
  • Micro-ATX Form Factor
  • Intel H310 Chipset

SPECIFICATIONS

Processor

Supported CPU Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0

Mainboard

Chipset Intel® H310
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF, F9 Search

Memory

Memory Type: 2 x DIMM
Slots: DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supported Memory: DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Maximum Memory: 32GB

Storage

Supported Storage Intel® H310 Chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support(both PCIE 2.0 x4 & SATA mode)*1
4 x SATA 6Gb/s port(s),

Graphics

Graphics Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Max Shared Memory: 1024 MB

Networking & Connectivity

LAN Intel® I219V, 1 x Gigabit LAN Controller(s)
TUF LANGuard

Audio & Microphone

Audio Realtek® ALC887 7.1-Channel High Definition Audio CODEC *2
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

Ports

Slots PCI:
Intel® H310 Chipset
1 x PCIe 3.0/2.0 x16 (x16 mode)
2 x PCIe 2.0 x1

M.2 Socket:
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support(both PCIE 2.0 x4 & SATA mode)
Internal I/O Ports 1 x RGB Header(s)
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector
USB Intel® H310 Chipset :
4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
Intel® H310 Chipset :
6 x USB 2.0/1.1 port(s) (4 at back panel, black, Type-A, 2 at mid-board)
HDMI 1 x HDMI

Physical Specification

Form Factor Micro ATX Form Factor
8.9 inch x 8.2 inch ( 22.6 cm x 20.8 cm )

Warranty Information

Warranty 03 years warranty.

DESCRIPTION

Asus TUF H310M-PLUS GAMING Motherboard

Specification:

●︎ Aura Sync RGB LED lighting

●︎ 20Gbps M.2

●︎ Micro-ATX Form Factor

●︎ Intel H310 Chipset

●︎ LGA 1151 Socket

●︎ DDR4 & Intel Optane Memory Support

**3 years warranty.


MSI Aura Sync RGB LED lighting, DDR4 2666MHz support, 20Gbps M.2

Powered exclusively by 8th Generation Intel Core processors, the TUF H310M-Plus Gaming LGA 1151 Micro-ATX Motherboard from ASUS supports the Intel H310 chipset and the LGA 1151 socket. It is designed for 24/7 performance in micro-ATX cases and is compatible with DDR4 memory, plus HDMI and VGA display outputs. Unlock your system's full potential with SafeSlot and Fan Xpert, while M.2 and Gigabit LAN maximize connectivity and transfer speeds. TUF components provide enhanced system durability, and a limited 3-year warranty protects the motherboard.


TUF Protection:

SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability


Fan Xpert:
Flexible cooling controls

Military-grade TUF Components:
TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability

Aura Sync RGB:
Synchronize LED lighting with a vast portfolio of compatible PC gear

Native M.2:
Lightning-fast storage speeds
