ASUS TUF GAMING Z790-PLUS WIFI 12TH/13TH GEN ATX MOTHERBOARD

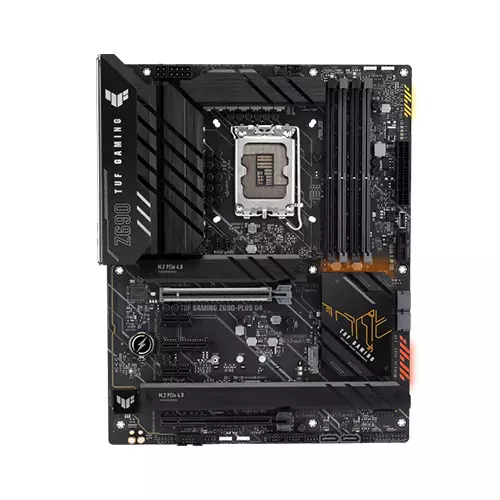

ASUS TUF GAMING Z690-PLUS D4 LGA 1700 Intel 12th Gen ATX Motherboard
- Aura Sync RGB lighting
- Intel LGA 1700 socket
- Intel 12th Gen Processors
- PCIe 5.0, DDR4 memory, four M.2 slot
SPECIFICATIONS
Processor
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Mainboard
Memory
5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)
/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)
/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC,
Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Storage
Intel 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel 12th Gen processors support PCIe 4.0 x4 mode
Intel Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Graphics
1 x HDMI port
Audio & Microphone
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Rear optical S/PDIF out port
Premium audio capacitors
Dedicated audio PCB layers
Audio Cover
Ports
1 x PCIe 5.0 x16 slot
Intel Z690 Chipset**
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x4 slot
2 x PCIe 3.0 x1 slots
1 x 4-pin CPU fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header

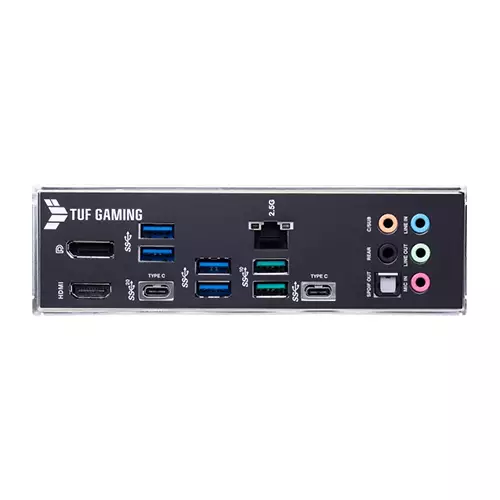

2 x USB 3.2 Gen 2 ports (2 x Type-A)
5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C)
1 x DisplayPort
1 x HDMI port
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C)
Front USB:Total 7 ports
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Physical Specification
DESCRIPTION
Features:
- Intel LGA 1700 socket: Ready for 12th Gen Intel Core processors
- Enhanced power solution: 14+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes, and durable capacitors for stable power delivery
- Next-gen connectivity: PCIe 5.0, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support
- Made for online gaming: Intel 2.5 Gb Ethernet and TUF LANGuard
- Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers, and Fan Xpert 4 utility in Armoury Crate
- Outshine RGB Aura Effect: Stylish edge and PCH lighting design, addressable RGB headers, and RGB strip header support
ASUS TUF GAMING Z690-PLUS D4 Motherboard in Bangladesh
ASUS TUF GAMING Z690-PLUS D4 takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. ASUS TUF GAMING Z690-PLUS D4 engineered with military-grade components, an upgraded power solution, and a comprehensive cooling system, this ASUS TUF GAMING Z690-PLUS D4 motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING Z690-PLUS D4 sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
Safe Slot & Safe DIMM
PCIe 5.0 is 2x faster than PCIe 4.0, so we adapted our SMT manufacturing process for the faster SafeSlot, to ensure the highest data speeds. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy, and confidence.
Immersive Gaming
ASUS TUF GAMING Z690-PLUS D4 LGA 1700 Intel 12th Gen ATX Gaming Motherboards provide a high-performance gaming package with a long list of features to improve your experiences. ASUS TUF GAMING Z690-PLUS D4 includes ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming. ASUS TUF GAMING Z690-PLUS D4 LGA 1700 Intel 12th Gen ATX Gaming Motherboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
Intel 2.5 Gb Ethernet
Onboard 2.5 Gb Ethernet gives your wired connection a boost with speeds that are up to 2.5x faster than standard Ethernet connections. In addition, ASUS TUF GAMING Z690-PLUS D4 translates to high-speed file transfers, low-lag online gaming, and high-res video streaming.
Outshine the Competition
A well-tuned system deserves a matching aesthetic. TUF Gaming Z690 series features edge lighting to enhance its rugged look, and now the PCH heatsink gets RGB lighting to take the style even further. ASUS Aura offers complete RGB control with a variety of functional presets for built-in LEDs and third-party strips you can connect to onboard RGB headers. And ASUS TUF GAMING Z690-PLUS D4 can all be synced with an ever-growing portfolio of Aura-capable hardware.
Addressable Gen 2 RGB Header
The ASUS TUF GAMING Z690-PLUS D4 addressable Gen 2 RGB header can now detect the number of LEDs on second-gen addressable RGB devices, allowing the software to tailor lighting effects specific devices automatically. The new header also offers backward compatibility with existing addressable RGB gear.
