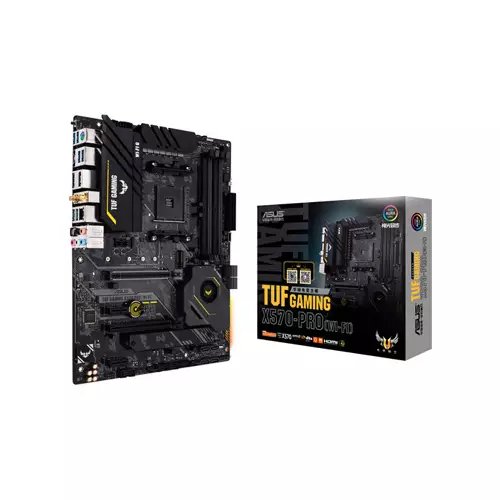

ASUS TUF X570-Pro AM4 ATX Gaming WI-FI Motherboard
ASUS TUF X570-Pro AM4 ATX Gaming WI-FI Motherboard
ASUS TUF X570-Pro AM4 ATX Gaming WI-FI Motherboard - 1
ASUS TUF X570-Pro AM4 ATX Gaming WI-FI Motherboard - 2

ASUS TUF X570-Pro AM4 ATX Gaming WI-FI Motherboard

0 Reviews
Stock : Discontinued
PID : P00025062806
Brand : Asus
Model : TUF GAMING X570-PRO (WI-FI)
Warranty : 3 Years
  • ATX Form Factor
  • AMD X570 Chipset
  • AM4 Socket
  • 4 x Dual-Channel DDR4-5100 (OC)

SPECIFICATIONS

Processor

Supported CPU AMD AM4 Socket 3rd and 2nd Gen AMD Ryzen/3rd, 2nd, and 1st Gen AMD Ryzen with Radeon Graphics Processors

Mainboard

BIOS 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Memory

Memory 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture

Storage

Supported Storage 3rd Gen AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen™/3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10

Graphics

Graphics Integrated Graphics in the 3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz

Networking & Connectivity

LAN Intel® I225-V 2.5Gb Ethernet
ASUS Turbo LAN Utility
TUF LANGuard
WiFi Intel® Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface

Audio & Microphone

Audio Realtek® ALC S1200A 8-Channel High Definition Audio CODEC
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

Ports

Slots 3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
2 x PCIe 4.0 x1
Internal I/O Ports 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x SPI TPM header
8 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
External I/O Ports x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x BIOS FlashBack™ Button(s)
1 x ASUS Wi-Fi Module
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)
USB Rear USB Port ( Total 7 )
3 x USB 3.2 Gen 2 port(s)(2 x Type-A +1 x Type-C)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Front USB Port ( Total 7 )
1 x USB 3.2 Gen 2 front panel connector port(s)(1 x Type-C)
2 x USB 3.1 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)

Physical Specification

Form Factor ATX Form Factor

Warranty Information

Warranty 03 Years

DESCRIPTION

ASUS TUF GAMING X570-PRO Motherboard in Bangladesh

Bring wired connections and Wi-Fi 6 to your next build with the TUF Gaming X570-PRO Wi-Fi AM4 ATX Motherboard from ASUS. Designed for Ryzen 2nd- and 3rd-gen processors, this motherboard features the AMD X570 chipset and an AM4 socket. Install up to 128GB of dual-channel DDR4 RAM across four slots, with support for accelerations up to 5100 MHz when overclocking. Eight SATA III and two M.2 connectors provide interfaces for storage drives, while two PCIe 4.0 x16 and two x1 slots accommodate graphics cards and other adapter cards, and support AMD 2-Way CrossFireX.

A rear I/O panel sports a USB 3.2 Gen 2 Type-C port and two Type-A ports, also as four Gen 1 Type-A ports. Connect a legacy mouse or keyboard via the PS/2 combo port. Output to a display via DisplayPort or HDMI. An RJ45 port supported wired 2.5 Gigabit Ethernet, while two Wi-Fi antenna connectors are often used with the supplied antenna. ASUS TUF GAMING X570-PRO Motherboard rear panel also sports five 3.5mm audio jacks and an S/PDIF port. A BIOS Flashback button is additionally present on the rear panel.


ASUS TUF GAMING X570-PRO Motherboard Internal headers support three chassis fans, three RGB connections, 8- and 4-pin power connections, a TPM, and a transparent CMOS. Front-panel USB and Audio connections also are supported, including a USB 3.2 Gen 2 Type-C connection. Audio on this motherboard is handled by the Realtek ALC S1200A codec, supporting 8-channel audio. additionally, to Wi-Fi 6, this motherboard also supports Bluetooth 5.1 connectivity after updating Windows 10 to create 19041 or later. The ASUS TUF Gaming X570-PRO Wi-Fi AM4 ATX Motherboard is compatible with Windows 10 64-bit operating systems.

AMD X570

ASUS TUF GAMING X570-PRO Motherboard motherboard uses the AMD X570 chipset and AM4 socket, making it compatible with 2nd and 3rd Gen Ryzen processors, and 1st, 2nd, and 3rd Gen Ryzen processors with Radeon Graphics.

Dr. MOS

The TUF Gaming X570-Pro Wi-Fi motherboard's CPU VRM utilizes 12+2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into one package, delivering the facility and efficiency that AMD's latest processors demand.

6-Layer PCB Design

ASUS TUF GAMING X570-PRO Motherboard Multiple PCB layers shift heat far away from critical components, providing more headroom to push your CPUs beyond stock speeds.

ProCool Sockets

Enhanced EATX 4- and 8-pin sockets are designed to be more durable, preventing hotspots and connector failures. ASUS TUF GAMING X570-PRO Motherboard Furthermore, ProCool sockets are built to tight specifications to make sure to flush contact with the PSU power lines.

Built TUF

ASUS TUF GAMING X570-PRO Motherboard Built Military-grade TUF chokes deliver steady power to the CPU, helping to enhance system stability, while TUF capacitors deliver +20% temperature tolerance and a couple of .5 times longer lifespan.

Digi+ VRM

The Digi+ voltage-regulator module, or VRM, ensures smooth and clean power delivery to the CPU in the least times.

VRM Heatsink

The ASUS TUF GAMING X570-PRO Motherboard high-mass heatsink provides an ample surface space that covers the VRM and chokes areas.

Stack Cool 3+

ASUS TUF GAMING X570-PRO Motherboard  Drawing heat far away from critical components, 2oz-copper layers ensure modules remain at their optimal operating temperatures, while also providing more headroom to push CPUs beyond stock speeds.

Dual PCIe Slots

ASUS TUF GAMING X570-PRO Motherboard  Dual PCIe 4.0 M.2 slots support up to type 22110 drives and supply NVMe SSD RAID support for a performance boost. Create a RAID configuration with up to 2 PCIe 4.0 storage devices for fast data-transfer speeds.


REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASUS TUF X570-Pro AM4 ATX Gaming WI-FI Motherboard Price in Bangladesh 2026 ?

The Asus TUF GAMING X570-PRO (WI-FI) Price in BD is 4,440৳ . This ASUS TUF X570-Pro AM4 ATX Gaming WI-FI Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus TUF GAMING X570-PRO (WI-FI) by 4,440৳ and its regular price is 55,550৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
