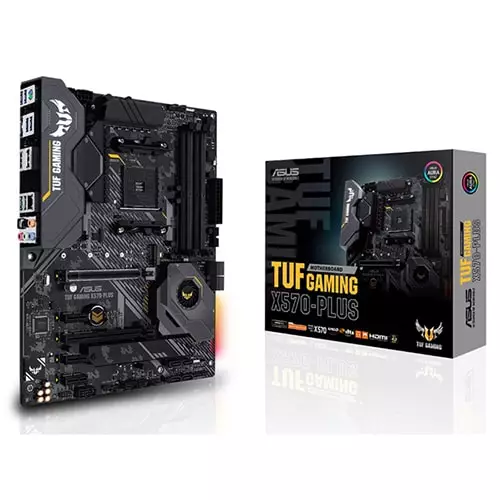

ASUS TUF GAMING X570-PLUS AM4 ATX Motherboard

ASUS TUF GAMING X570-PLUS AM4 ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061333
Brand : Asus
Model : TUF GAMING X570-PLUS
Warranty : 3 Years
  • Supported AMD Ryzen™ 2nd Generation/3rd Gen
  • Max. resolution 4096 x 2160 @ 60 Hz
  • Realtek® L8200A
  • ATX Form Factor 12.0 inch x 9.6 inch

SPECIFICATIONS

Processor

Supported CPU AMD AM4 Socket AMD Ryzen™ 2nd Generation/3rd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

Mainboard

BIOS 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Memory

Memory 3rd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory
2nd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.

Storage

Supported Storage 3rd Gen AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10

Graphics

Graphics Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz

Networking & Connectivity

LAN Realtek® L8200A
ASUS Turbo LAN Utility
TUF LANGuard

Audio & Microphone

Audio - Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

Ports

Slots 3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzen™ Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
2 x PCIe 4.0 x1
Internal I/O Ports 2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x SPI TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
External I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
5 x Audio jack(s)
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)
USB 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s) (4 at back panel, )
AMD X570 chipset :
3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-CTM)
AMD X570 chipset :
2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
AMD X570 chipset :
4 x USB 2.0 port(s) (4 at mid-board)

Physical Specification

Form Factor ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty Information

Warranty 03 Years

DESCRIPTION

ASUS TUF GAMING X570-PLUS AM4 ATX Motherboard

Features :

●︎ AMD AM4 Socket: Ready for 2nd and 3rd Gen AMD RyzenTMprocessors

●︎ Enhanced Power Solution: Military-grade TUF components, ProCool socket and Digi+ VRM for maximum durability

●︎ Comprehensive Cooling: Active PCH heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4

●︎ Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C

●︎ Gaming Networking: Exclusive Realtek® L8200A Gigabit Ethernet, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, Bluetooth 5.0, TUF LANGuard and TurboLAN technology

●︎ Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality

●︎ Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips

●︎ TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case

**03 Year Warranty

[product_table id="34" limit="10" type="filter" filter_category="7271"]


REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASUS TUF GAMING X570-PLUS AM4 ATX Motherboard Price in Bangladesh 2026 ?

The Asus TUF GAMING X570-PLUS Price in BD is 21,000৳ . This ASUS TUF GAMING X570-PLUS AM4 ATX Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus TUF GAMING X570-PLUS by 21,000৳ and its regular price is 22,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
