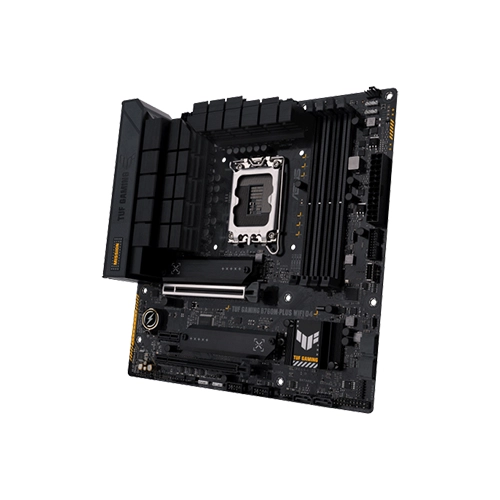

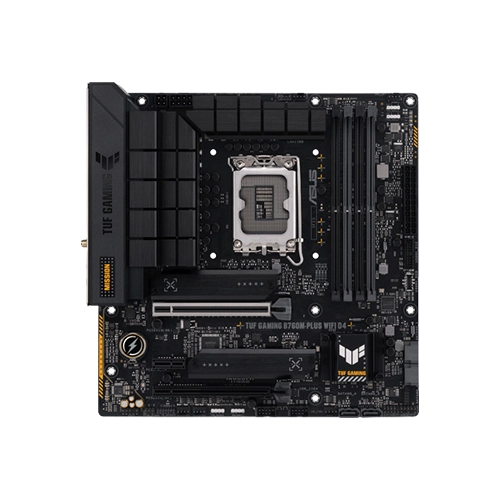

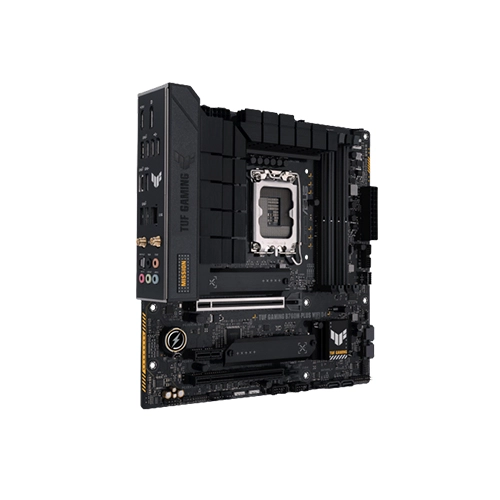

ASUS TUF GAMING B760M-PLUS WIFI D4 12TH/13TH GEN INTEL MOTHERBOARD
- Chipset - Intel B760
- Generation - 12th/13th
- Memory Max. - 128GB
- Memory Slot - 4
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Mainboard
Memory
5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/
3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support under the Support tab or visit
https://www.asus.com/support/
Storage
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Graphics
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
Networking & Connectivity
TUF LANGuard
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio & Microphone
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback "
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
Ports
1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header

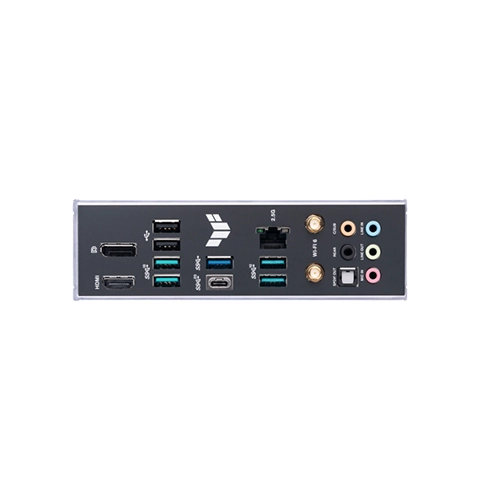

4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port

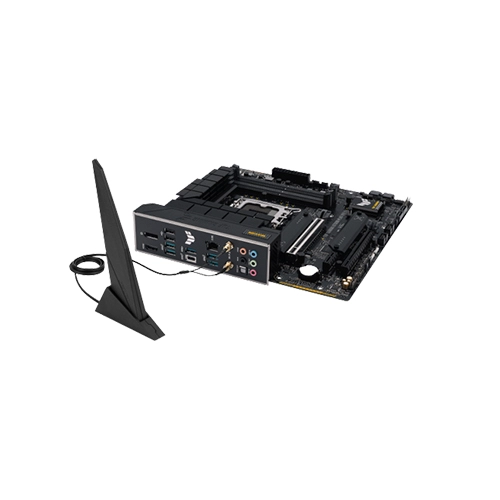

1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)*
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports*
* USB_E4 and USB_EC3 can only be enabled/disabled simultaneously.
Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+

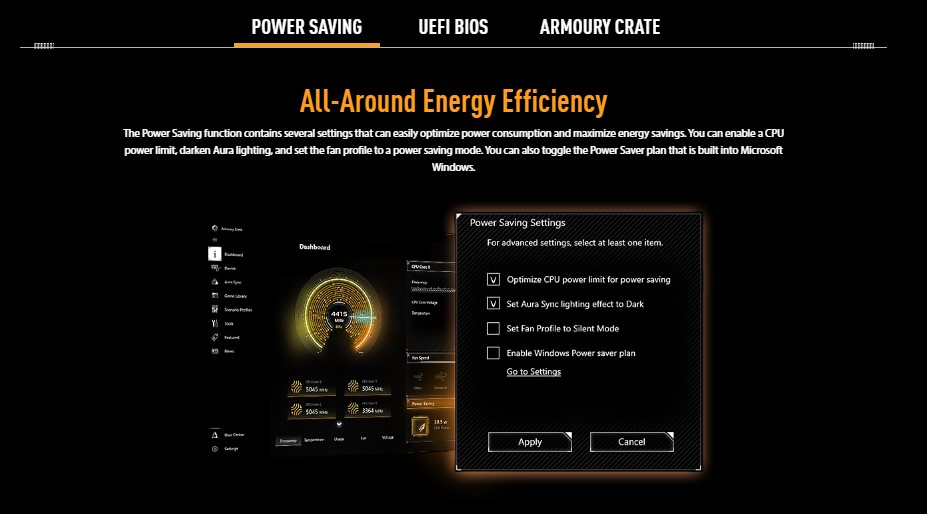

- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyASUS
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Special Features
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
Physical Specification
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Warranty Information
DESCRIPTION

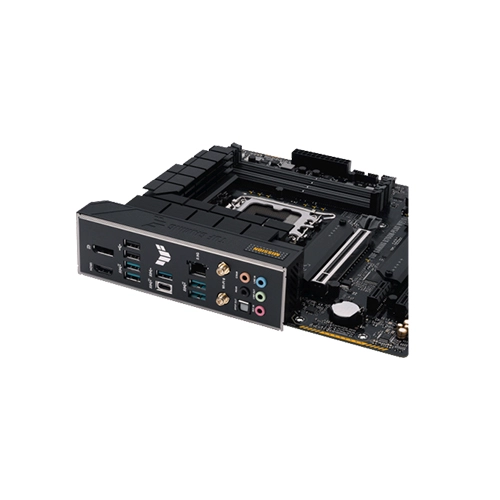

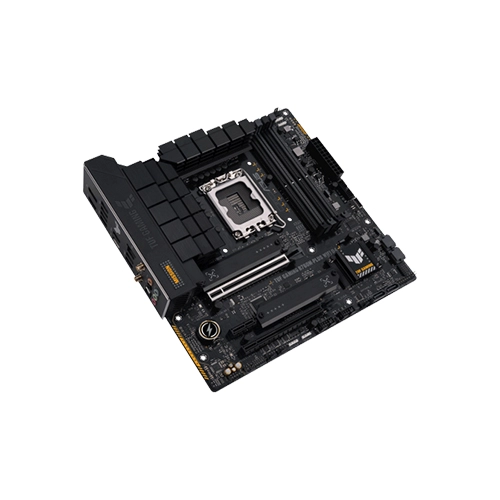

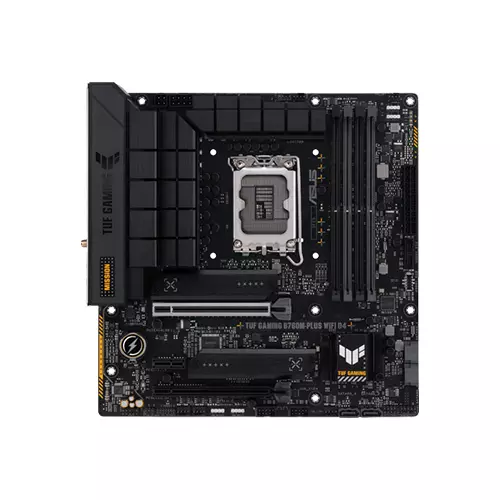

ASUS TUF GAMING B760M-PLUS WIFI D4 12TH/13TH GEN INTEL MOTHERBOARD

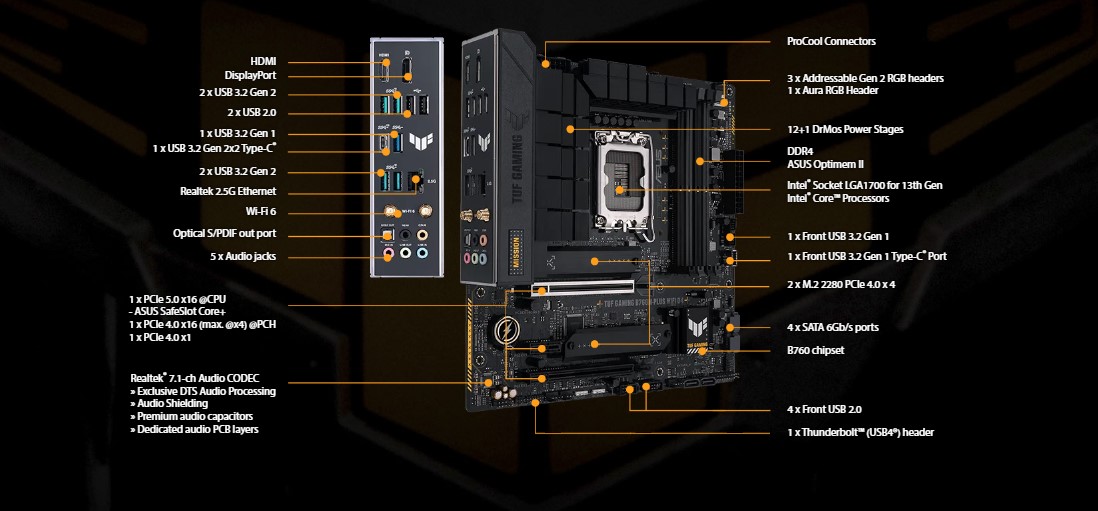

Asus TUF GAMING B760M-PLUS WIFI D4 is a motherboard model designed to support 13th and 12th Generation Intel Core processors, Pentium Gold, and Celeron processors with an LGA1700 socket. The motherboard supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. The chipset is Intel B760, and it has 4 DIMM slots for a maximum of 128GB DDR4 memory with a speed range of 2133MHz to 5333MHz. The motherboard has a Dual Channel Memory Architecture and supports Intel Extreme Memory Profile (XMP) and OptiMem II. Asus TUF GAMING B760M-PLUS WIFI D4 has 1 DisplayPort and 1 HDMI port for graphics, with support for up to 4K@60Hz. It has 1 PCIe 5.0 x16 slot, 1 PCIe 4.0 x16 slot (supports x4 mode), and 1 PCIe 4.0 x1 slot for expansion. The motherboard supports 2 x M.2 slots and 4 x SATA 6Gb/s ports for storage, and Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. Asus motherboard has 1 Realtek 2.5Gb Ethernet port, TUF LANGuard, Wi-Fi 6, and Bluetooth v5.2.
The rear panel has 8 USB ports (1 x USB 3.2 Gen 2x2 port, 4 x USB 3.2 Gen 2 ports, 1 x USB 3.2 Gen 1 port, and 2 x USB 2.0 ports), and the front panel has 7 USB ports (1 x USB 3.2 Gen 1 connector, 2 x USB 2.0 headers, and 1 x USB 3.2 Gen 1 header supporting additional 2 USB 3.2 Gen 1 ports). Asus TUF GAMING B760M-PLUS WIFI D4 has a Realtek 7.1 Surround Sound High Definition Audio CODEC with several audio features, including audio shielding, rear optical S/PDIF out port, premium audio capacitors, and dedicated audio PCB layers. The motherboard also has internal I/O connectors, including fan and cooling-related connectors, power-related connectors, storage-related connectors, and USB connectors. The Asus TUF GAMING B760M-PLUS WIFI D4 comes with a 3-year replacement warranty, and is compatible with Windows 10/11 operating systems, as well as Intel Core, Pentium Gold, and Celeron processors. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Asus Motherboard available at Techland BD is well recognized. The large selection of Asus Motherboard available at Techland BD is well recognized.
REVIEWS
Login to write a review.
Overall Rating
The ASUS TUF B760M-PLUS WIFI is a great choice for anyone looking for a high-performance motherboard with WiFi connectivity. The build quality is excellent, and the DDR5 support ensures future-proofing. The TUF Gaming Alliance branding also gives me confidence in the durability."
13 March, 2023
