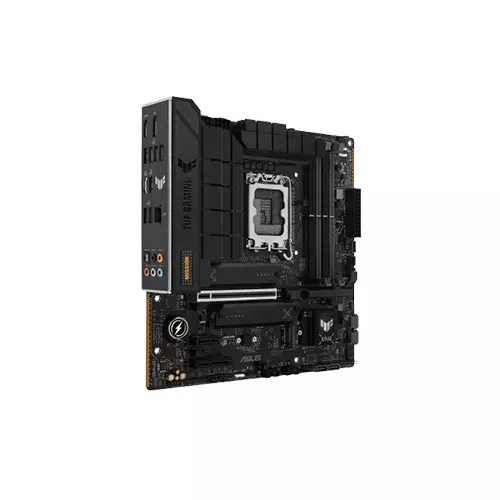

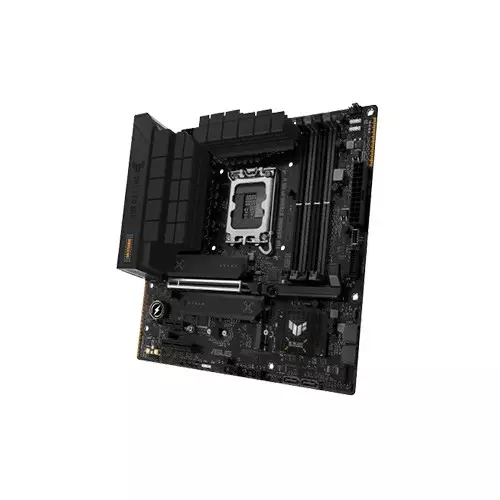

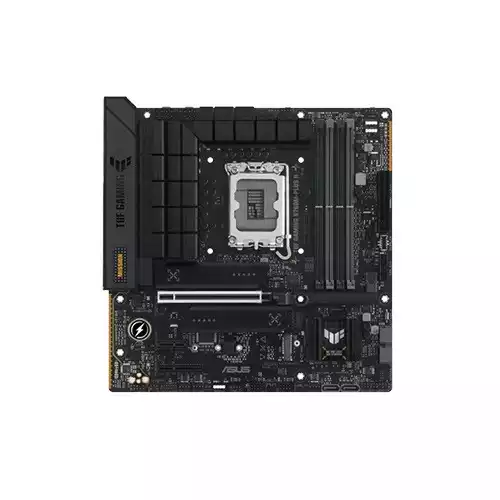

ASUS TUF GAMING B760M-PLUS II Intel LGA1700 Micro-ATX Motherboard
- Chipset - Intel B760 Chipset
- Memory - 192GB, DDR5
- Form Factor - Micro-ATX
- Cables - 2 x SATA 6Gb/s
Product Pricing
EMI Start From*
৳827
SPECIFICATIONS
Processor
CPU
Intel Core 14th & 13th Gen Processors,
Intel Core 12th Gen, Pentium Gold,
and Celeron Processors
Supports Intel Turbo Boost Technology 2.0
and Intel Turbo Boost Max Technology 3.0
Refer to www.asus.com
for the CPU support list.
Intel Turbo Boost Max Technology 3.0
support depends on the CPU types.
Intel Core 12th Gen, Pentium Gold,
and Celeron Processors
Supports Intel Turbo Boost Technology 2.0
and Intel Turbo Boost Max Technology 3.0
Refer to www.asus.com
for the CPU support list.
Intel Turbo Boost Max Technology 3.0
support depends on the CPU types.
CPU Socket
Intel Socket LGA1700
Mainboard
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Memory
Memory Size
192GB
Memory Type
DDR5
Memory
7800+
(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/
6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600/ 5400/ 5200/ 5000/
4800 Non-ECC, Un-buffered Memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed),
and number of DRAM modules varies depending
on the CPU and memory configuration,
for more information please refer to CPU/Memory
Support list under the Support tab of
product information site or visit
https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory
supports On-Die ECC function.
(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/
6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600/ 5400/ 5200/ 5000/
4800 Non-ECC, Un-buffered Memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed),
and number of DRAM modules varies depending
on the CPU and memory configuration,
for more information please refer to CPU/Memory
Support list under the Support tab of
product information site or visit
https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory
supports On-Die ECC function.
Storage
Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Processors (14th& 13th& 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
Intel®B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
Intel Rapid Storage Technology
supports SATA RAID 0/1/5/10.
Intel Core Processors (14th& 13th& 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
Intel®B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
Intel Rapid Storage Technology
supports SATA RAID 0/1/5/10.
Graphics
Graphics
1 x DisplayPort
1 x HDMI port
Graphics specifications may vary between
CPU types. Please refer to www.intel.com for any updates.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
VGA resolution support depends on the
processors' or graphic cards' resolution.
1 x HDMI port
Graphics specifications may vary between
CPU types. Please refer to www.intel.com for any updates.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
VGA resolution support depends on the
processors' or graphic cards' resolution.
Ports

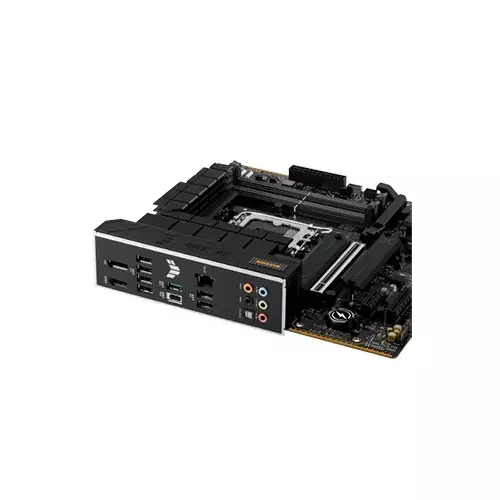

I/O Port
1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Connector
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front Panel Audio header (F-AUDIO)
1 20-pin System Panel header
with chassis intrusion function
1 x Thunderbolt (USB4) header
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front Panel Audio header (F-AUDIO)
1 20-pin System Panel header
with chassis intrusion function
1 x Thunderbolt (USB4) header
USB
Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 8 ports)
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 8 ports)
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
Software
Operating System
Windows11, Windows10 64-bit
Software Features
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- DIGI+ VRM
- PC CleanerTUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- DIGI+ VRM
- PC CleanerTUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Special Features
Speacial Features
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Others
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x M.2 rubber package
1 x TUF GAMING sticker
2 x Screw packages for M.2 SSD
Documentation
1 x TUF certification card
1 x Quick Start guide
2 x SATA 6Gb/s cables
Miscellaneous
1 x M.2 rubber package
1 x TUF GAMING sticker
2 x Screw packages for M.2 SSD
Documentation
1 x TUF certification card
1 x Quick Start guide
Physical Specification
Color
Black
Expansion Slots
Intel Core Processors (14th& 13th& 12th Gen)
1 x PCIe 5.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x4 slot
1 x PCIe 3.0 x1 slot
1 x PCIe 5.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x4 slot
1 x PCIe 3.0 x1 slot
Form Factor
micro-ATX
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Technical Info
Model
TUF GAMING B760M-PLUS II
Warranty Information
Warranty
3 years
DESCRIPTION
ASUS TUF GAMING B760M-PLUS II Intel LGA1700 Micro-ATX Motherboard in Bangladesh
ASUS TUF GAMING B760M-PLUS II is a feature-packed Intel LGA1700 Micro-ATX motherboard designed for gamers and PC enthusiasts in Bangladesh, available at Tech Land BD. Compatible with Intel Core 14th, 13th, and 12th Gen processors, as well as Pentium Gold and Celeron CPUs, this motherboard delivers exceptional performance with support for Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. It supports DDR5 memory up to 7800+ MT/s (OC) across four DIMM slots, with a maximum capacity of 192GB, and features Intel Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile II (AEMP II) for optimized memory performance. Storage options include three M.2 slots (two PCIe 4.0 x4 and one PCIe 4.0 x2) and four SATA 6Gb/s ports, supporting RAID 0/1/5/10 configurations. Graphics connectivity includes DisplayPort 1.4 and HDMI 2.1, supporting 4K@60Hz output. The motherboard offers extensive connectivity with USB 20Gbps Type-C, USB 10Gbps Type-A, and USB 5Gbps Type-A ports, alongside a 2.5Gb Ethernet port and 5 audio jacks. ASUS-exclusive features like Armoury Crate, Aura Sync RGB lighting, and TUF Protection (including DIGI+ VRM, ESD Guards, and SafeSlot Core+) ensure durability and customization. With a 3-year warranty, the ASUS TUF GAMING B760M-PLUS II is a reliable and future-proof choice for gamers and creators in Bangladesh.What processors are compatible with the ASUS TUF GAMING B760M-PLUS II?
The motherboard supports Intel Core 14th, 13th, and 12th Gen processors, as well as Pentium Gold and Celeron CPUs with the LGA1700 socket. It also supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 for enhanced performance.
What type of memory does this motherboard support?
The ASUS TUF GAMING B760M-PLUS II supports DDR5 memory with speeds of up to 7800+ MT/s (overclocked) across four DIMM slots, with a maximum capacity of 192GB. It also supports Intel Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile II (AEMP II) for optimized memory performance.
What storage options are available on this motherboard?
The motherboard offers three M.2 slots (two PCIe 4.0 x4 and one PCIe 4.0 x2) and four SATA 6Gb/s ports, supporting RAID 0/1/5/10 configurations for enhanced storage performance and redundancy.
REVIEWS
Login to write a review.
No reviews yet
Be the first to share your thoughts about this product.
What is the ASUS TUF GAMING B760M-PLUS II Intel LGA1700 Micro-ATX Motherboard Price in Bangladesh 2026 ?
The Asus TUF GAMING B760M-PLUS II Price in BD is 23,500৳ . This ASUS TUF GAMING B760M-PLUS II Intel LGA1700 Micro-ATX Motherboard Manufacturing by Asus Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus TUF GAMING B760M-PLUS II by 23,500৳ and its regular price is 25,300৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
Related Products
Save: ৳1,500
ASUS PRIME H610M-F D4 R2.0 Intel 14th & 13th Gen Micro-ATX Motherboard
৳10,300
৳11,800
Save: ৳700
ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX 11th Gen Intel Motherboard
৳10,300
৳11,000
Save: ৳3,450
Asus PRIME H610M-R Micro-ATX DDR5 14th GEN Intel Motherboard
৳11,450
৳14,900
Save: ৳1,600
Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard
৳14,500
৳16,100
Save: ৳5,500
ASUS Pro WS TRX50-SAGE WIFI Workstation Motherboard
৳130,500
৳136,000
Save: ৳2,800
Asus PRIME H610M-CS DDR5 micro-ATX 13th Gen Motherboard
৳11,200
৳14,000
Save: ৳1,700
Asus PRIME B760M-K D4 LGA1700 mATX 14th intel Motherboard
৳14,800
৳16,500
Save: ৳1,200
ASUS Pro Q570M-C/CSM Intel LGA1200 Micro ATX Motherboard
৳11,800
৳13,000
Save: ৳1,300
ASUS PRIME H610I-PLUS D4 DDR4 14th to 12th Gen ATX Motherboard
৳16,800
৳18,100
Save: ৳1,800
ASUS H810M AYW GAMING WIFI LGA1851 DDR5 mATX Motherboard
৳16,700
৳18,500
