ASUS TUF GAMING B760M-PLUS D4 12TH/13TH GEN INTEL MOTHERBOARD

ASUS TUF GAMING B760M-PLUS D4 12TH/13TH GEN INTEL MOTHERBOARD
ASUS TUF GAMING B760M-PLUS D4 12TH/13TH GEN INTEL MOTHERBOARD
ASUS TUF GAMING B760M-PLUS D4 12TH/13TH GEN INTEL MOTHERBOARD
ASUS TUF GAMING B760M-PLUS D4 12TH/13TH GEN INTEL MOTHERBOARD
ASUS TUF GAMING B760M-PLUS D4 12TH/13TH GEN INTEL MOTHERBOARD
ASUS TUF GAMING B760M-PLUS D4 12TH/13TH GEN INTEL MOTHERBOARD
Save: 700৳
ASUS TUF GAMING B760M-PLUS D4 12TH/13TH GEN INTEL MOTHERBOARD
ASUS TUF GAMING B760M-PLUS D4 12TH/13TH GEN INTEL MOTHERBOARD
ASUS TUF GAMING B760M-PLUS D4 12TH/13TH GEN INTEL MOTHERBOARD
ASUS TUF GAMING B760M-PLUS D4 12TH/13TH GEN INTEL MOTHERBOARD
ASUS TUF GAMING B760M-PLUS D4 12TH/13TH GEN INTEL MOTHERBOARD
ASUS TUF GAMING B760M-PLUS D4 12TH/13TH GEN INTEL MOTHERBOARD
ASUS TUF GAMING B760M-PLUS D4 12TH/13TH GEN INTEL MOTHERBOARD
product price25,500৳
special price24,800৳
Stock Status
In Stock
Product ID
29314
Brand
Asus
Product modelB760M-PLUS D4
Warranty 3 Years
Total Reviews
24,800৳

Cash Discount Price

Check available payment method
Contact for bulk quantity: 09613828201
26,090৳

EMI Price*

Starting from 8,697৳/month. For Discount Price
Click here to view 27 banks EMI Plans
Short Description
  • Chipset - Intel B760
  • Generation - 12th/13th
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Stock availability is subject to change. Please confirm availability before shopping by calling us.
  • The product image is for illustration purposes only. The actual product may vary in size, color, and layout. No claim will be accepted for an image mismatch.
  • Tech Land BD can change the price of any product at any moment due to the volatile price of the technology.
  • We cannot guarantee that the information on this page is 100% correct. Tech Land BD is not responsible for the results obtained from the use of this information.
Processor
Supported CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Mainboard
Chipset Intel® B760 Chipset
Memory
Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/
5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/
2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Storage
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Graphics
Graphics 1 x DisplayPort
1 x HDMI® port
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Audio & Microphone
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback "
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
Networking & Connectivity
LAN 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Ports
Slots Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Internal I/O Ports I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header

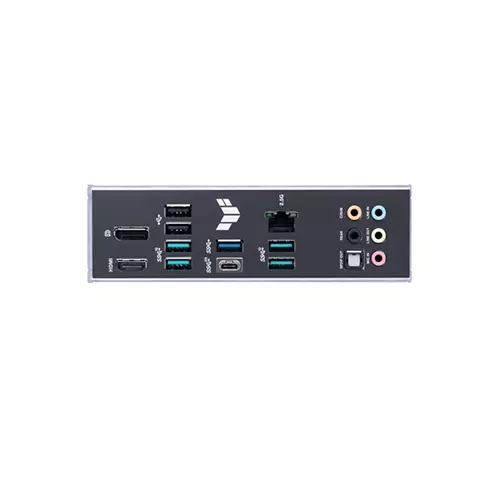

External I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
USB Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)*
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports*
* USB_E4 and USB_EC3 can only be enabled/disabled simultaneously.
HDMI 1 x HDMI® port
Technical Info
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Special Features
Special Features ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+

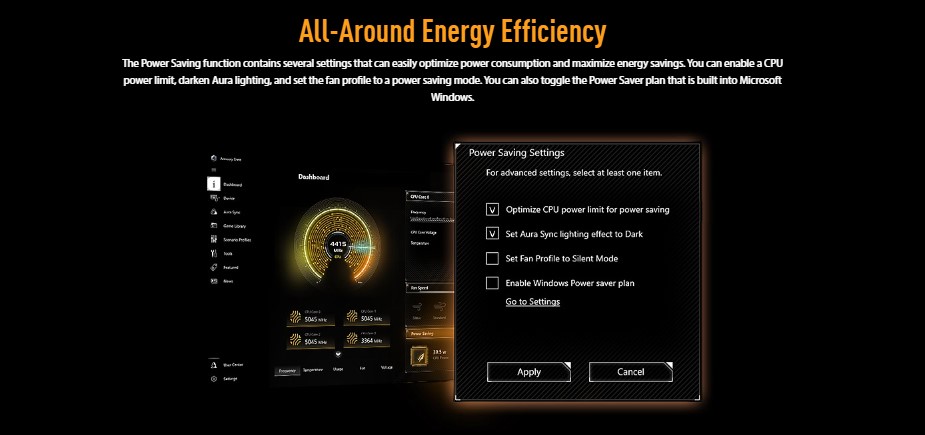

- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Physical Specification
Form Factor mATX Form Factor
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Others
Other Features WOL by PME, PXE
Operating System
Windows® 11, Windows® 10 64-bit
Warranty Information
Warranty 3 Years

ASUS TUF GAMING B760M-PLUS D4 12TH/13TH GEN INTEL MOTHERBOARD

Asus TUF GAMING B760M-PLUS D4 12th/13th Gen Intel Motherboard. The Asus TUF GAMING B760M-PLUS D4 is a micro-ATX motherboard designed for gaming. It supports 12th and 13th generation Intel Core processors, as well as Pentium Gold and Celeron processors. The chipset is an Intel B760, and it has an LGA1700 socket. The motherboard supports up to 128GB of DDR4 memory across 4 dual-channel DIMM slots, with a wide range of frequencies available. There are two M.2/SSD expansion slots and four SATA ports for storage. The motherboard has a PCIe 4.0 x16 slot and a PCIe 4.0 x1 slot, but does not support multi-GPU configurations. It has a Realtek 2.5GbE LAN chipset, and the audio chipset is Realtek High Definition Audio CODEC, with 7.1 audio channels.

The motherboard has one HDMI port and one DisplayPort, as well as one Thunderbolt port. It also has one USB 3.2 Gen 2x2 port, four USB 3.2 Gen 2 ports, one USB 3.2 Gen 1 port, and two USB 2.0 ports. The motherboard supports RAID 0, 1, 5, and 10 configurations, and has RGB support with an AURA RGB header. The Asus TUF GAMING B760M-PLUS D4 comes with a 3-year replacement warranty, and is compatible with Windows 10/11 operating systems, as well as Intel Core, Pentium Gold, and Celeron processors. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Asus Motherboard available at Techland BD is well recognized. The large selection of Asus Motherboard available at Techland BD is well recognized.


Review

Get specific details about this product from customers who own it.

What is the ASUS TUF GAMING B760M-PLUS D4 12TH/13TH GEN INTEL MOTHERBOARD Price in Bangladesh 2024?

The Asus B760M-PLUS D4 Price in BD is 24,800৳ . This ASUS TUF GAMING B760M-PLUS D4 12TH/13TH GEN INTEL MOTHERBOARD Manufacturing by Asus Comes With 3 Years Warranty & Based on 2 reviews. Tech Land BD Offers you Asus B760M-PLUS D4 by 24,800৳ and its regular price is 25,500৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
