Stock Status | Out Of Stock |
Product ID | 22218 |
Product SKU | B660M-E D4 |
Brand | Asus |

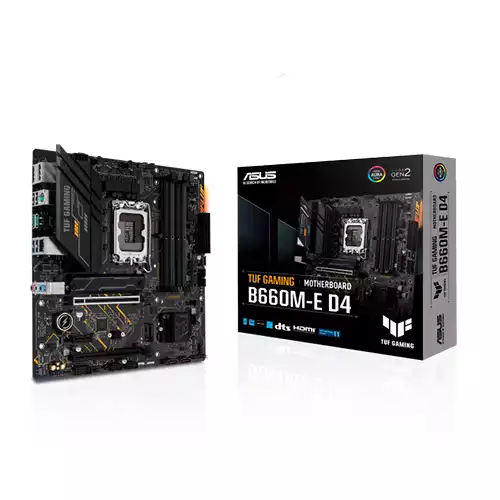

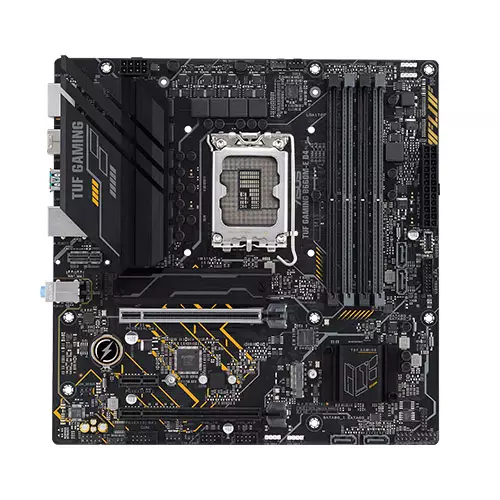

Product model | TUF GAMING B660M-E D4 |
Warranty | 3 years |
Total Reviews | Based on 0 reviews. - Write a review |
Out Of Stock
- Stock availability is subject to change. Please confirm availability before shopping by calling us.
- The product image is for illustration purposes only. The actual product may vary in size, color, and layout. No claim will be accepted for an image mismatch.
- Tech Land BD can change the price of any product at any moment due to the volatile price of the technology.
- We cannot guarantee that the information on this page is 100% correct. Tech Land BD is not responsible for the results obtained from the use of this information.
Processor | |
Supported CPU | intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
Mainboard | |
Chipset | Intel B660 Chipset |
Memory | |
Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
Storage | |
Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
Graphics | |
Graphics | 1 x DisplayPort 1.4 1 x HDMI 1.4 / 2.0 |
Audio & Microphone | |
Audio | ALC897 Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Power pre-regulator reduces power input noise to ensure consistent performance Premium audio capacitors Dedicated audio PCB layers |
Networking & Connectivity | |
LAN | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
Ports | |
Slots | Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot |
Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x S/PDIF Out header |

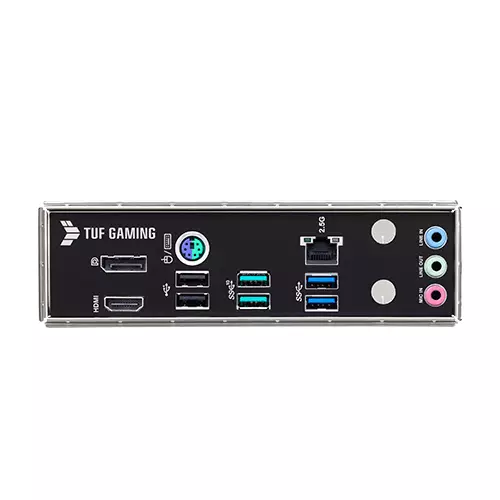

External I/O Ports | 2 x USB 3.2 Gen 2 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x V-M.2 slot (Key E) 1 x PS/2 Keyboard/Mouse combo port |
USB | 2 x USB 3.2 Gen 2 ports (Type-A) 2 x USB 3.2 Gen1 ports (Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
HDMI | Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz |
Technical Info | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Physical Specification | |
Form Factor | microATX 24.4cm x 24.4cm |
Dimension | 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
Others | |
Other Features | ASUS TUF PROTECTION DIGI+ VRM Enhanced DRAM Overcurrent Protection ESD Guards TUF LANGuard Overvoltage Protection SafeSlot Core+ Stainless-Steel Back I/O ASUS Q-Design M.2 Q-Latch Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution Flexible M.2 heatsink VRM heatsink design ASUS EZ DIY Box Headers ProCool SafeDIMM AURA Sync AURA RGB header Addressable Gen 2 headers |
Warranty Information | |
Warranty | 03 Year |
Features:
- Intel LGA 1700 socket: Ready for 12th Gen Intel processors
- Enhanced power solution: 10 power stages, six-layer PCB, ProCool socket, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: Enlarged VRM heatsink, Flexible M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+
- Latest connectivity: PCIe 4.0 slot, PCIe 4.0 M.2 slots, front USB 3.2 Gen 2 Type-C
- Made for online gaming: Realtek 2.5Gb Ethernet, TUF LANGuard
- Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
ASUS TUF GAMING B660M-E D4 Motherboard in Bangladesh
ASUS TUF GAMING B660M-E D4 takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution, and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING B660M-E D4 sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
ENHANCED EATX 8-PIN
Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.
DIGI+ VRM
The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times
DDR4 OC 5333
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
TWO PCIE 4.0 M.2
The two PCIe 4.0 M.2 slots support up to two 2280 devices and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to four PCIe 4.0 storage devices to enjoy the fastest data transfer speeds
TUF GAMING ALLIANCE
TUF GAMING motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software provides Fan Xpert 2+ and hardware information and offers full control of Two-Way AI Noise Cancellation, RGB lighting and peripheral settings. The TUF GAMING platform gives you the arsenal you need to build and optimize your dream gaming rig, without unnecessary complexity.
ARMOURY CRATE
Armoury Crate is exclusive ASUS software that gives you centralized control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting effects. It also provides hardware information and control of settings for a select and growing number of products, including keyboard and mouse preferences, Fan Xpert 2+ and Two-Way AI Noise Cancelation, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news sections to help you stay in touch with the gaming community.
EXCLUSIVE 2.5 GIGABIT ETHERNET
2.5G onboard Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage of this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers
DTS AUDIO PROCESSING
DTS Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.
AURA SYNC RGB LIGHTING
A well-tuned system deserves a matching aesthetic. TUF Gaming B660 series features edge lighting to enhance its rugged look, and now the PCH heatsink gets RGB lighting to take the style even further. ASUS Aura offers full RGB control with a variety of functional presets for built-in LEDs as well as third-party strips you can connect to onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
the addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward compatibility with existing addressable RGB gear.
