ASRock Z690 PG Velocita 12th & 13th Gen ATX Motherborad
ASRock Z690 PG Velocita 12th & 13th Gen ATX Motherborad
ASRock Z690 PG Velocita 12th & 13th Gen ATX Motherborad - 1
ASRock Z690 PG Velocita 12th & 13th Gen ATX Motherborad - 2

ASRock Z690 PG Velocita 12th & 13th Gen ATX Motherborad

0 Reviews
Stock : Discontinued
PID : P1172506019
SKU : 90-MXBH50-A0UAYZ
Brand : ASRock
Model : Z690 PG Velocita
Warranty : 3 Years
  • Supports 12th/13th/14th Gen Intel Processors
  • 17 Phase SPS Dr.MOS Power Design
  • Supports DDR5 6400MHz (OC)
  • Output Options: HDMI, DisplayPort

SPECIFICATIONS

Processor

Supported CPU - Supports 12th/13th/14th Gen Intel Core Processors (LGA1700)

- Digi Power design

- 17 Power Phase design

- Supports Intel Hybrid Technology

- Supports Intel Turbo Boost Max 3.0 Technology

- Supports ASRock Hyper BCLK Engine V

Mainboard

Chipset Intel Z690
BIOS - 256Mb AMI UEFI Legal BIOS with multilingual GUI support

- ACPI 6.0 Compliant wake up events

- SMBIOS 2.7 Support

- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment

Memory

Memory Type: DDR5

Slots: 4 x DDR5 DIMM Slots

Supports DDR4 non-ECC, un-buffered memory up to 6400+(OC)

Supports ECC UDIMM memory modules (operate in non-ECC mode)

- Supports Intel Extreme Memory Profile (XMP) 3.0

- 15μ Gold Contact in DIMM Slots

Maximum Memory: 128GB

Storage

Supported Storage 6 x SATA3 6.0 Gb/s Connectors

- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes

- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode

- 1 x Blazing M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode

RAID:

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

Graphics

Graphics - Intel Xe Graphics Architecture (Gen 12)

- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers

- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz

- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

Networking & Connectivity

LAN 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G)

Killer E3100 2.5G LAN, Intel Gigabit LAN

- Supports Killer LAN Software

- Supports Killer DoubleShot Pro

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports UEFI PXE

Audio & Microphone

Audio HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED)

Ports

Slots - 3 x PCIe x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3); triple at Gen5x16 (PCIE1) / Gen4x4 (PCIE3) / Gen3x2 (PCIE5))

- 2 x PCIe Gen3x1 Slots

- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

M.2 Socket

- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)

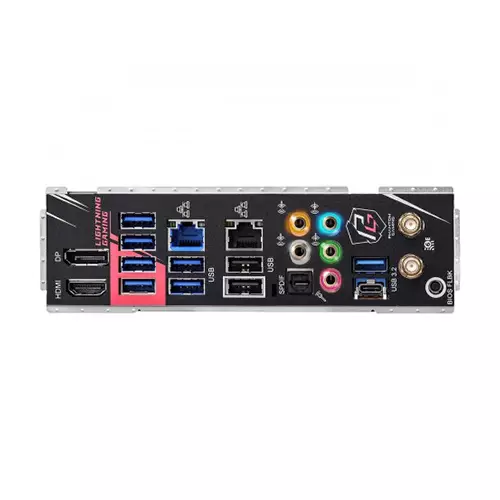

Internal I/O Ports 2 x Antenna Ports

- 1 x Optical SPDIF Out Port

- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

- 6 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)

- 1 x BIOS Flashback Button
USB 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)

- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)

- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
HDMI 1 x HDMI Port

Physical Specification

Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

8 Layer PCB

2oz Copper PCB

Warranty Information

Warranty 3 years

DESCRIPTION

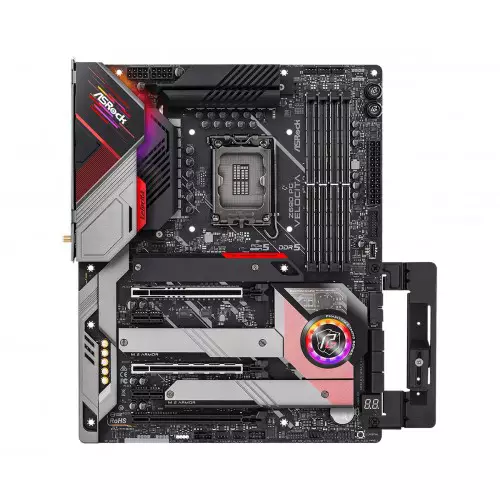

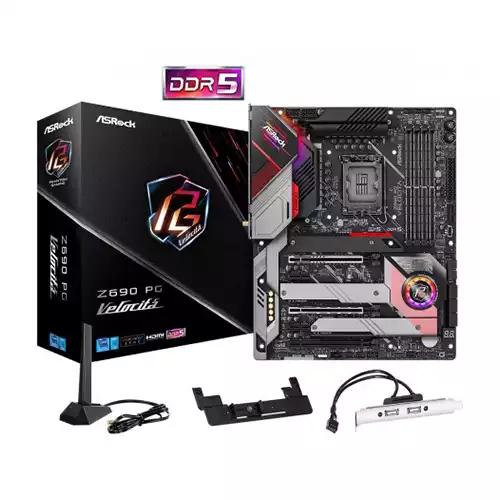

ASRock Z690 PG Velocita Motherboard

The ASRock Z690 PG Velocita Supports 12th/13th/14th Gen Intel Core Processors (LGA1700), 17 Phase SPS Dr.MOS Power Design, DDR5 6400MHz (OC), 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, Graphics Output Options: HDMI, DisplayPort, Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio 6 SATA3. This ASRock Z690 PG Velocita Motherboard comes with 1 Blazing M.2 (PCIe Gen5 x4), 2 Hyper M.2 (PCIe Gen4 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 USB 3.2 Gen2x2 Front Type-C, 2 USB 3.2 Gen2 (Rear Type A+C) and 10 USB 3.2 Gen1 (6 Rear, 4 Front), Lightning Gaming Ports, Killer E3100 2.5G LAN, Intel Gigabit LAN, Killer AX1675 802.11ax (WiFi 6E) & Bluetooth. The ASRock Z690 PG Velocita Motherboard features Dual Channel DDR5 Memory Technology, 4 x DDR5 DIMM Slots, Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC), Max. Capacity of system memory: 128GB, supports Intel Extreme Memory Profile (XMP) 3.0 and 15μ Gold Contact in DIMM Slots. The 12th Gen ASRock Z690 PG Velocita Motherboard has 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec), Premium Blu-ray Audio support, Surge Protection, and Pure Power-In. It also featured Direct Drive Technology, PCB Isolate Shielding, Impedance Sensing on Rear Out port, Individual PCB Layers for R/L Audio Channel, Gold Audio Jacks, 15μ Gold Audio Connector, and Nahimic Audio.




REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASRock Z690 PG Velocita 12th & 13th Gen ATX Motherborad Price in Bangladesh 2026 ?

The ASRock Z690 PG Velocita Price in BD is 49,000৳ . This ASRock Z690 PG Velocita 12th & 13th Gen ATX Motherborad Manufacturing by ASRock Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you ASRock Z690 PG Velocita by 49,000৳ and its regular price is 49,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
