MSI PRO Z790-A MAX Motherboard in Bangladesh

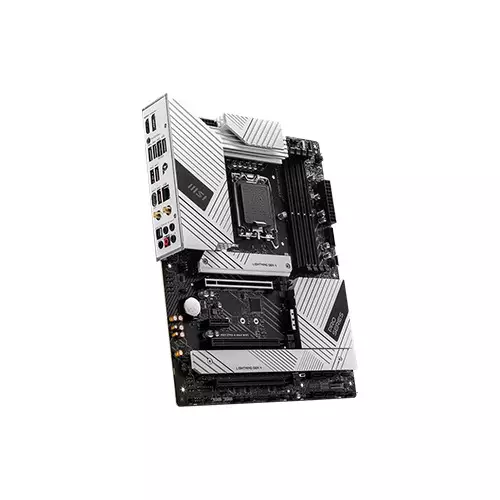

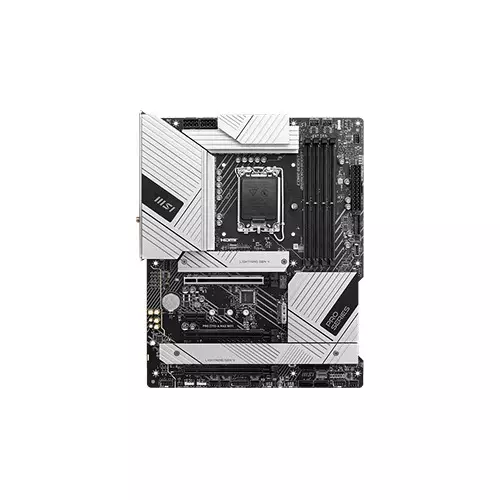

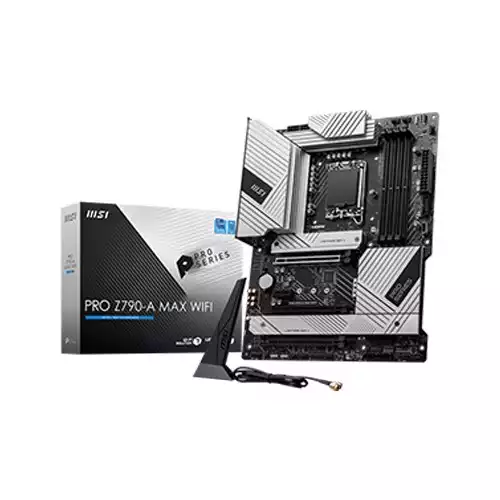

Introducing the MSI PRO Z790-A MAX Motherboard: Unleash the Power of 12th/13th Gen Intel Processors with DDR5 and Wi-Fi 7 ConnectivityThe MSI PRO Z790-A MAX is a feature-packed motherboard designed to harness the immense potential of 12th and 13th generation Intel Core processors. With the cutting-edge Intel Z790 chipset at its core, this ATX-sized motherboard offers exceptional performance, extensive memory support, advanced connectivity options, and a wealth of expansion possibilities.
CPU Support:
The motherboard supports 12th and 13th Gen Intel Core processors, as well as Pentium Gold and Celeron processors, all of which fit perfectly into the LGA 1700 socket.
Memory:
Equipped with four DDR5 UDIMM slots, the motherboard boasts a maximum memory capacity of a staggering 192GB. You can push your memory speeds to the limit with support for frequencies ranging from 5000MHz to an overclocking frequency of 7800+MHz, thanks to Intel XMP 3.0 OC support. Whether you're a gamer, content creator, or power user, this motherboard ensures you have the memory you need to perform at your best.
Onboard Graphics:
The MSI PRO Z790-A MAX provides a complete visual experience with 1x HDMI 2.1 port and 1x DisplayPort, offering maximum resolutions of 4K at 60Hz and 8K at 60Hz, respectively. These ports are available for processors featuring integrated graphics.
Expansion Slots:
For those looking to enhance their system's capabilities, the motherboard features three PCI-E x16 slots and one PCI-E x1 slot, providing ample room for graphics cards, SSDs, and other expansion cards. These slots support various PCIe generations to suit your requirements.
Storage:
With four M.2 slots and six SATA 6G connectors, the motherboard offers extensive storage options. M.2_1 and M.2_2 support PCIe 4.0 x4, while M.2_3 and M.2_4 support PCIe 4.0 x4/SATA mode. RAID support is available for both SATA and M.2 NVMe storage devices, including RAID 0, 1, 5, and 10.
USB and Networking:
Connectivity is a breeze with a range of USB ports, including USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2, and USB 3.2 Gen2x2 Type C. The motherboard is also equipped with Intel 2.5G LAN for ultra-fast wired networking and Wi-Fi 7 for seamless wireless connectivity. The Wi-Fi module is pre-installed in the M.2 (Key-E) slot, supporting speeds up to 5.8Gbps. Bluetooth 5.4 enhances wireless connectivity even further.
Audio:
Enjoy immersive audio with the Realtek ALC4080 Codec, offering 7.1-channel USB high-performance audio. The motherboard also supports S/PDIF output for high-quality audio playback.
Internal I/O and LED Features:
The motherboard offers extensive internal connectivity options, including multiple fan connectors, USB ports, RGB LED connectors, and more. Additionally, the motherboard features EZ Debug LED for easy troubleshooting.

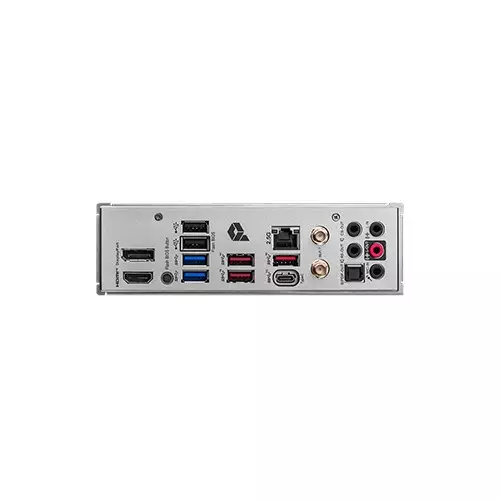

Back Panel Ports:
The back panel provides a range of ports, including DisplayPort, USB 2.0, 2.5G LAN, Wi-Fi/Bluetooth, audio connectors, HDMI, a Flash BIOS Button, and USB 3.2 Gen 1, Gen 2, and Gen 2x2 Type C ports, ensuring all your external connectivity needs are met.
Operating System Compatibility:
This motherboard is fully compatible with Windows 11 64-bit, ensuring you can take full advantage of the latest software features.
PCB Dimension:
The MSI PRO Z790-A MAX follows the ATX form factor, measuring 243.84mm x 304.8mm, making it a suitable choice for various PC cases.In summary, the MSI PRO Z790-A MAX is a powerhouse motherboard designed for enthusiasts, gamers, and professionals who demand the very best in terms of performance, memory support, connectivity, and expandability. With support for the latest Intel processors, DDR5 memory, and Wi-Fi 7, it's a compelling choice for anyone looking to build a high-performance PC
