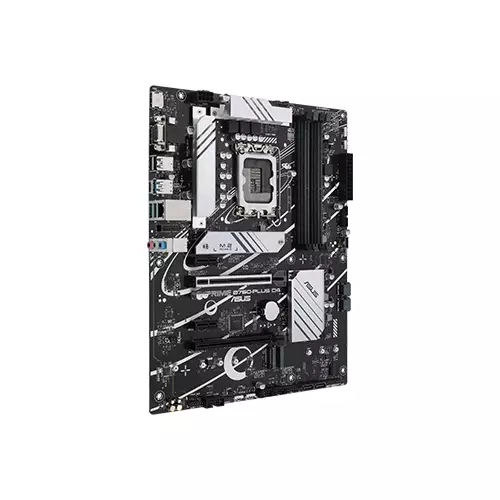

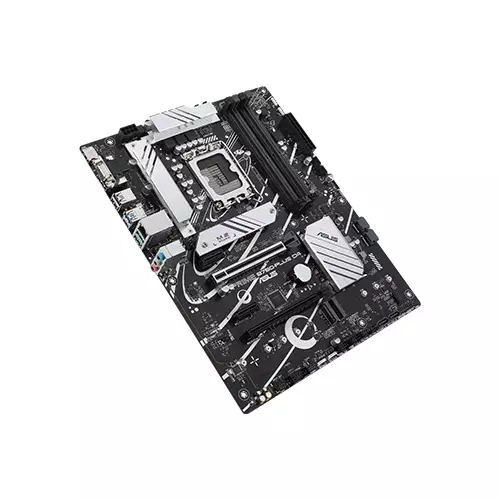

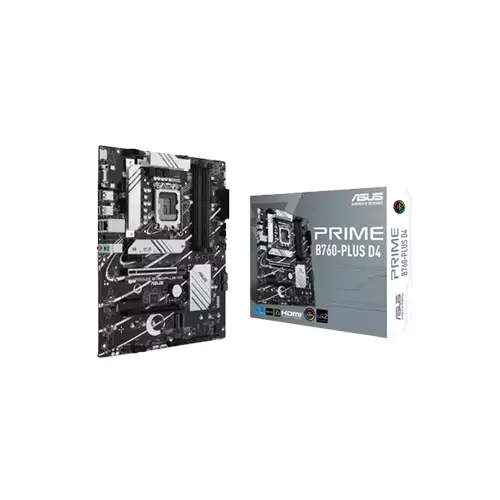

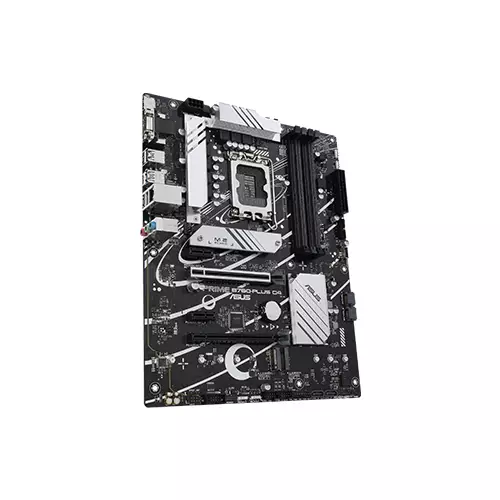

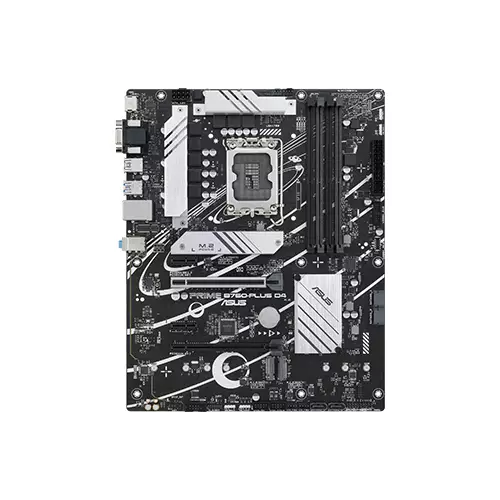

ASUS PRIME B760-PLUS D4 12TH & 13TH GEN MOTHERBOARD
Asus PRIME B760-PLUS D4 12th & 13th Gen Motherboard. The PRIME B760-PLUS D4 is a motherboard from ASUS that supports 13th and 12th Gen Intel Core, Pentium Gold, and Celeron processors. The CPU socket is Intel Socket LGA1700. It has the Intel B760 chipset and four DIMM slots that support a maximum of 128GB of DDR4 memory with data rates ranging from 2133MHz to 5066MHz (OC). The motherboard supports Intel Extreme Memory Profile (XMP) and OptiMem, and the supported memory types and number of DRAM modules depend on the CPU and memory configuration. The motherboard has multiple graphics outputs, including one DisplayPort, one VGA port, and one HDMI port. The graphics specifications may vary between CPU types. The motherboard has one PCIe 5.0 x16 slot for Intel 13th and 12th Gen Processors and one PCIe 4.0 x16 slot that supports x4 mode, as well as two PCIe 3.0 x1 slots. It also has three M.2 slots (Key M) and four SATA 6Gb/s ports for storage. The Wi-Fi module is sold separately, and the motherboard has one Realtek 2.5Gb Ethernet port.

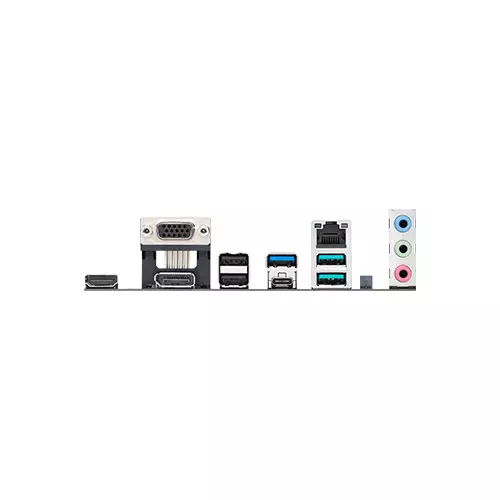

The PRIME B760-PLUS D4 has a variety of USB ports, including one USB 3.2 Gen 2x2 port (Type-C), two USB 3.2 Gen 2 ports (Type-A), one USB 3.2 Gen 1 port (Type-A), and two USB 2.0 ports (Type-A) on the back panel, as well as a USB 3.2 Gen 1 connector (Type-C) and two USB 2.0 headers that support four additional USB 2.0 ports on the front panel. The motherboard also has a Realtek 7.1 Surround Sound High Definition Audio CODEC with audio shielding, premium audio capacitors, and dedicated audio PCB layers. It requires a chassis with an HD audio module in the front panel to support 7.1 Surround Sound audio output. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Asus Motherboard available at Techland BD is well recognized. The large selection of Asus Motherboard available at Techland BD is well recognized.
