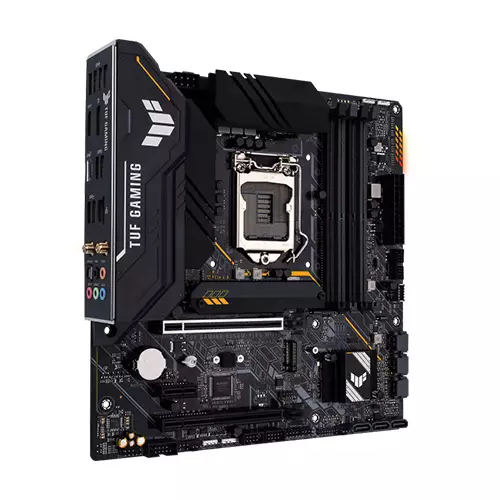

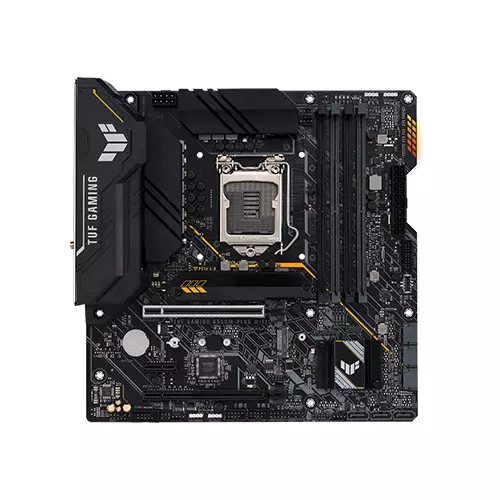

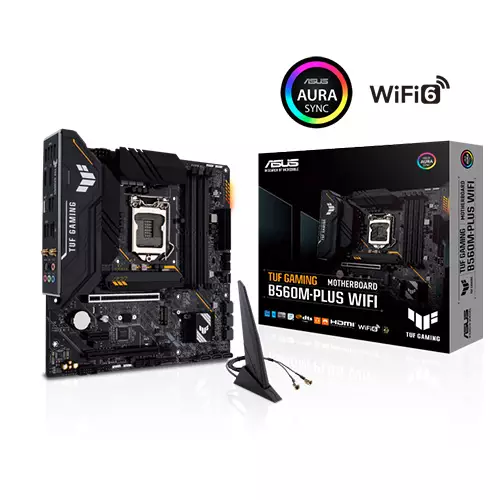

ASUS TUF GAMING B560M-PLUS mATX WIFI Motherboard

ASUS TUF GAMING B560M-PLUS mATX WIFI Motherboard
ASUS TUF GAMING B560M-PLUS mATX WIFI Motherboard
ASUS TUF GAMING B560M-PLUS mATX WIFI Motherboard
ASUS TUF GAMING B560M-PLUS mATX WIFI Motherboard
Out Of Stock
ASUS TUF GAMING B560M-PLUS mATX WIFI Motherboard
ASUS TUF GAMING B560M-PLUS mATX WIFI Motherboard
ASUS TUF GAMING B560M-PLUS mATX WIFI Motherboard
ASUS TUF GAMING B560M-PLUS mATX WIFI Motherboard
ASUS TUF GAMING B560M-PLUS mATX WIFI Motherboard
Stock Status
Out Of Stock
Product ID
17691
Brand
Asus
Product modelB560M-PLUS
Warranty 3 years
Total Reviews
Short Description
  • Intel B560 Chipset
  • DDR4 Dual channel
  • Intel Wi-Fi 6
  • 128Mb Flash ROM
  • Stock availability is subject to change. Please confirm availability before shopping by calling us.
  • The product image is for illustration purposes only. The actual product may vary in size, color, and layout. No claim will be accepted for an image mismatch.
  • Tech Land BD can change the price of any product at any moment due to the volatile price of the technology.
  • We cannot guarantee that the information on this page is 100% correct. Tech Land BD is not responsible for the results obtained from the use of this information.
Processor
Supported CPU Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Intel 14 nm CPU Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Mainboard
Chipset Intel B560 Chipset
Memory
Memory 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733
(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/21
33 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™ i7/i9 processors support

2933/2800/2666/2400/2133 natively, others will run at the
maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® processors support
3200/2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors
Lists), and memory frequency support depends on the CPU
types.
Storage
Supported Storage Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this
slot will be disabled for other CPUs Intel® B560 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 &
SATA modes)*
6 x SATA 6Gb/s ports
To enable Intel® Optane™ Memory (Hybrid Storage device), it
must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
* M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot is
operating in SATA mode, SATA_2 will be disabled.
Graphics
Graphics 1 x DisplayPort 1.4 1 x HDMI™ 1.4 / 2.0
Audio & Microphone
Audio Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Rear optical S/PDIF out port
Premium Japanese audio capacitors
Dedicated audio PCB layers
Networking & Connectivity
LAN 1 x Realtek 2.5Gb Ethernet TUF LANGuard
WiFi Intel® Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.0 or later
Ports
Slots 1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
Intel® 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot(s)*
Intel® 11th Gen processors support PCIe 4.0 x16
Intel®10th Gen processors support PCIe 3.0 x16
Intel® B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slots
Internal I/O Ports 2 x USB 3.2 Gen 2 port(s) (2 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port

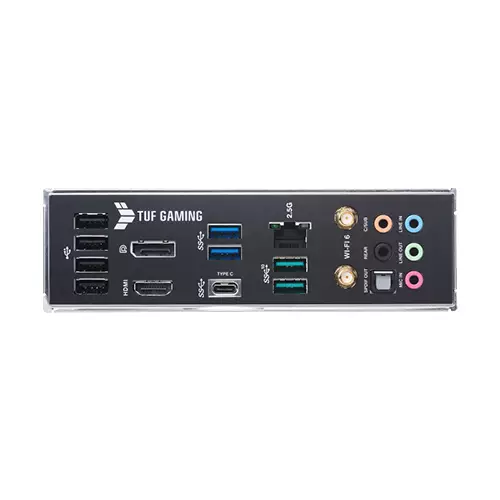

External I/O Ports 2 x USB 3.2 Gen 2 port(s) (2 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
USB 2 x USB 3.2 Gen 2 port(s) (2 x Type-A)
3 x USB 3.2 Gen 1 port(s) (2 x Type-A+ 1 x USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
1 x USB 3.2 Gen Gen 1 connector(s) (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
HDMI Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz
Technical Info
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Physical Specification
Form Factor microATX
24.4cm x 24.4cm
Dimension 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Others
Other Features Digital power design with DrMOS - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design -M.2 Q-Latch -Q-DIMM -Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) -Q-Slot ASUS Thermal Solution -Flexible M.2 heatsink -VRM heatsink design ASUS EZ DIY -ProCool -Pre-mounted I/O shield AURA Sync -AURA RGB header(s) -Addressable Gen 2 RGB header(s)
Warranty Information
Warranty 03 Year

ASUS TUF B560M-PLUS WIFI Motherboard In Bangladesh

ASUS TUF GAMING B560M-PLUS WIFI takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for marathon gaming. Aesthetically, TUF GAMING B560M-PLUS WIFI sports the new TUF Gaming logo, and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.


Rock-Solid Performance

With upgraded power delivery and comprehensive cooling options to drive the 11th and 10th Gen Intel® Core™ processors, plus support for faster memory and storage, TUF GAMING B560M-PLUS series motherboards are the perfect foundation for your next high-core-count battle rig.

DrMOS

The onboard VRM of TUF GAMING B560 series motherboards utilize 8+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 11th Gen Intel Core processors demand.


Easy PC DIY

TUF GAMING motherboards are designed to be easy to set up and configure just the way you want —even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF GAMING motherboards give you everything you need to build your dream gaming rig without adding complexity.

Build with Confidence

TUF GAMING Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.


MotherboardTUF GAMING B560M-PLUS series motherboards provide a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

Intel WiFi 6

The Intel WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6


EXCLUSIVE 2.5 GIGABIT ETHERNET

2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.


Turbo LAN

Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface, and reduces network lag
