Asus TUF B365M-Plus Gaming Wi-Fi LGA1151 9TH Gen Micro ATX Motherboard
Asus TUF B365M-Plus Gaming Wi-Fi LGA1151 9TH Gen Micro ATX Motherboard
Asus TUF B365M-Plus Gaming Wi-Fi LGA1151 9TH Gen Micro ATX Motherboard - 1
Asus TUF B365M-Plus Gaming Wi-Fi LGA1151 9TH Gen Micro ATX Motherboard - 2

Asus TUF B365M-Plus Gaming Wi-Fi LGA1151 9TH Gen Micro ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061629
Brand : Asus
Model : TUF B365M-Plus Gaming Wi-Fi
Warranty : 3 Years
  • Brand: Asus
  • Name : Asus TUF B365M-Plus Gaming Wi-Fi LGA1151 9TH Gen Micro ATX Motherboard
  • Model: TUF B365M-Plus Gaming Wi-Fi

SPECIFICATIONS

Processor

Supported CPU Intel Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0

Mainboard

Chipset Intel B365
BIOS 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial
Presence Detect) memory information

Memory

Memory Intel® B365 Chipset
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

Storage

Supported Storage Intel® B365 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready

Graphics

Graphics Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously

Networking & Connectivity

LAN Intel I219V, 1 x Gigabit LAN
TUF LANGuard

Audio & Microphone

Audio Realtek® ALC1200 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

Ports

Slots 1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (max at x4 mode)
1 x PCIe 3.0/2.0 x1
bundle a PCIE TO M.2 WIFI CARD comes with realtek Wireless-8821CE Wi-Fi module
Internal I/O Ports 1 x Addressable RGB header
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, moss green)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector

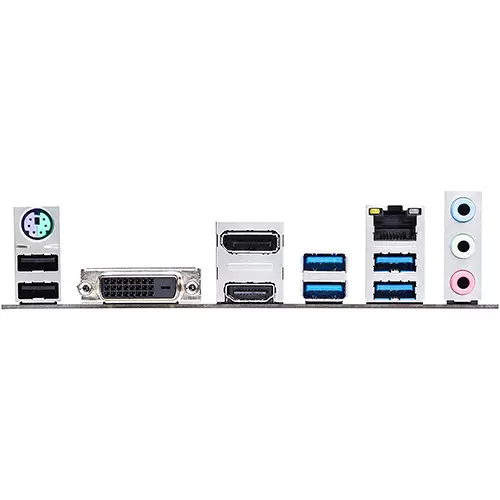

External I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 Type-A up to 5Gbps
2 x USB 2.0
1 x 8-channel Audio I/O
USB Intel® B365 Chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® B365 Chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

Physical Specification

Form Factor mATX Form Factor
9.6 inch x 9.5 inch ( 24.4 cm x 24.1 cm )

Warranty Information

Warranty 03 Years

DESCRIPTION

Asus Tuf B365m plus Gaming wifi Motherboard

Overview
  • TUF Protection: ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
  • Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
  • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear
  • Intel® Optane™ memory ready: Exploit the latest high-speed storage technology
  • Native M.2: Lightning-fast storage speeds
  • Onboard M.2 heatsink: Cools your M.2 drive, delivering consistent storage performance and enhanced reliability.
  • Bundle a PCIE TO M.2 WIFI CARD
**03 Year Warranty.

TUF B360 Plus Gaming

Arm Your Battlestation

TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.

TUF PROTECTION

SAFESLOT CORE+

SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

FLEXIBLE COOLING CONTROLS

FAN XPERT 2+

System temperatures are key to a stable gaming rig. TUF Gaming motherboards include FAN Xpert 2+ software that's able to intelligently control system fans based upon the input of sensor. This ensures that your TUF Gaming system stays perfectly cooled, no matter how long you play.

BUNDLE A PCIE TO M.2 WIFI CARD

WI-FI/BT MODULE SUPPORT

ASUS PCIE TO M.2 WIFI CARD comes with an easy-to-install Realtek Wireless-8821CE Wi-Fi module, which provides Gigabit download speed and improves connected experience.



[product_table id="34" limit="10" type="filter" filter_category="6082"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Asus TUF B365M-Plus Gaming Wi-Fi LGA1151 9TH Gen Micro ATX Motherboard Price in Bangladesh 2026 ?

The Asus TUF B365M-Plus Gaming Wi-Fi Price in BD is 34,000৳ . This Asus TUF B365M-Plus Gaming Wi-Fi LGA1151 9TH Gen Micro ATX Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus TUF B365M-Plus Gaming Wi-Fi by 34,000৳ and its regular price is 35,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
