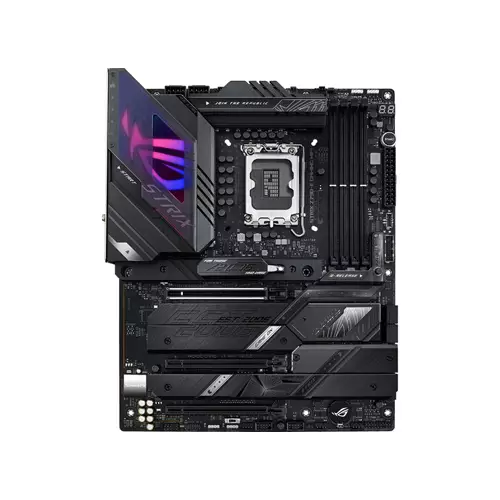

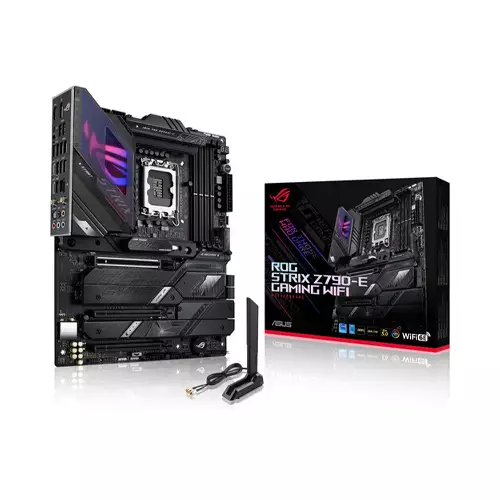

ASUS ROG STRIX Z790-E GAMING WIFI LGA 1700 13TH GEN ATX MOTHERBOARD
- ATX Form Factor
- Intel Z790 Chipset
- LGA 1700 Socket
- 4 x Dual-Channel DDR5-7200 (OC)
SPECIFICATIONS
Processor
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Mainboard
Memory
/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Storage
Intel® 13th & 12th Gen Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset**
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes)
4 x SATA 6Gb/s ports
Graphics
1 x HDMI® port***
Networking & Connectivity
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Audio & Microphone
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Ports
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD Fast-charge)
2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alternative PCIe Mode Switch
1 x AURA RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Start button
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header

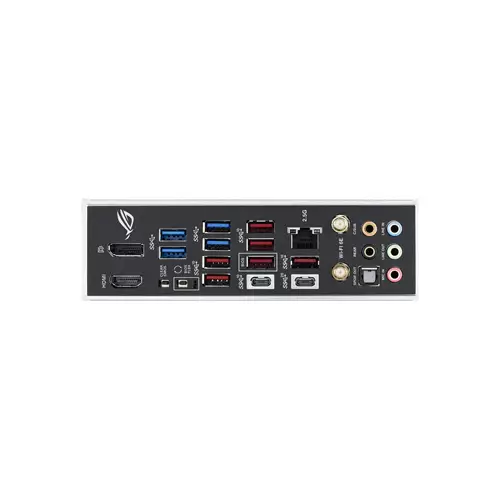

7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C® )
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x HDMI™ port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD Fast-charge)
2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Physical Specification
Warranty Information
DESCRIPTION
ASUS ROG STRIX Z790-E GAMING Motherboard in Bangladesh
Designed for gaming enthusiasts looking to take their experience to the next level, the robust ASUS ROG STRIX Z790-E GAMING WIFI LGA 1700 ATX Motherboard drives performance with an enhanced electrical layout, PCIe 5.0 technology, and vast connectivity options for gaming peripherals.
At the heart of the ROG STRIX Z790-E is an LGA 1700 socket and Z790 chipset, allowing you to leverage a wide range of 12th and 13th Gen Intel processors. Four DDR5 Dual-Channel RAM slots allow you to install up to 128GB of memory with speeds up to 7200 MHz when overclocked, providing you with increased multitasking and rendering capabilities. Five M.2 PCIe and four SATA III storage interfaces allow you to combine an array of storage drives to build a massive gaming library. A single PCIe 5.0 x16 slot is available for resource-demanding graphics cards while PCIe 4.0 x16 (in x4 mode) slots support a wide range of utility cards. Between the back panel and internal headers, you get access to several USB 3.2 Gen 1, Gen 2, and Gen 2x2 ports and internal headers, offering plenty of support for peripherals such as mice, keyboards, and controllers as well as resource-demanding devices like external drives. Wireless devices can utilize Bluetooth 5.2 technology for a reliable cable-free experience. Connect to your wireless network with Wi-Fi 6E (802.11ax) or use the integrated 2.5 Gigabit Ethernet port if you prefer a wired connection.
