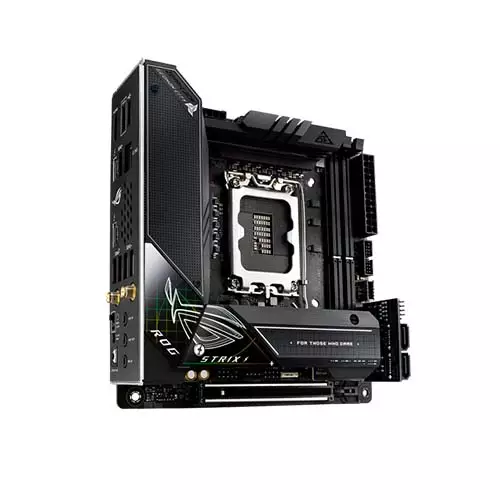

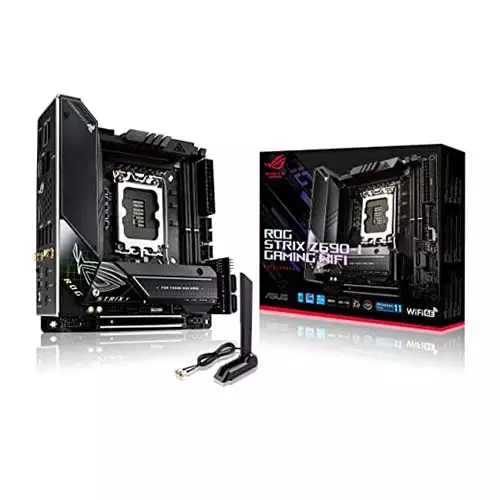

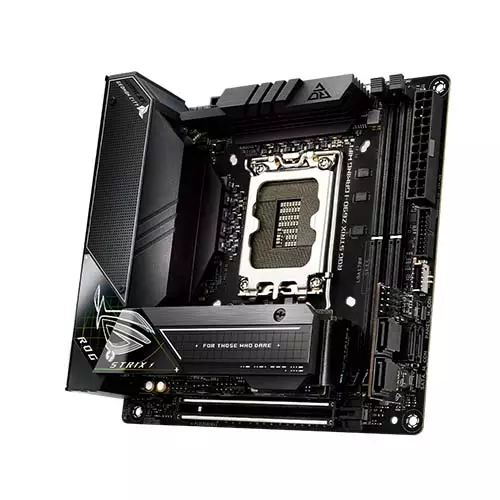

Asus ROG Strix Z690-I Gaming WiFi 12th Gen Intel Mini-ITX Motherboard

Asus ROG Strix Z690-I Gaming WiFi 12th Gen Intel Mini-ITX Motherboard

0 Reviews

Stock : Discontinued

PID : P00025064232

Brand : Asus

Model : ROG STRIX Z690-I GAMING WIFI

Warranty : 3 Years

Intel LGA 1700 Socket
Optimal Power Solution
Optimized Thermal Design
High-Performance Networking

SPECIFICATIONS

Processor

Supported CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Mainboard

Chipset Intel Z690

BIOS 256 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory 4 x DIMM, Max. 128GB, DDR4

5333(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/

4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3300(OC)/3200/3000/

2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem III

Storage

Supported Storage Intel® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Intel® 12th Gen processors support PCIe 4.0 x4 mode.

Intel® Z690 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**

6 x SATA 6Gb/s ports***

Graphics

Graphics 1 x DisplayPort (Support max. 8K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as
specified in HDMI 2.1)

Networking & Connectivity

WiFi 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2

Audio & Microphone

Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback

Audio Features

- SupremeFX Shielding Technology

- Savitch SV3H712 AMP

- Premium audio capacitors

- Audio cover

Ports

Slots Intel® 12th Gen Processors

1 x PCIe 5.0/4.0/3.0 x16 slot

Intel® Z690 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)*

1 x PCIe 3.0 x1 slot

Internal I/O Ports Fan and cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connectors

Storage related

4 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (support USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x CPU Over Voltage jumper

1 x 12-1 pin Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ header

USB Rear USB:

Total 10 ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB:

Total 7 ports

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Others

Other Features Extreme Engine Digi+

-5K Black Metallic Capacitors

ASUS Q-Design

- M.2 Q-Latch

- PCIe Slot Q-Release

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow
green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Clear CMOS button

- CPU Socket lever protector

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

AURA Sync

- AURA RGB header

- Addressable Gen 2 headers

ASUS HYDRANODE

- 1 x 12-1 pin Front Panel Audio header (AAFP)

- 1 x Chassis fan support* (CHA_FAN1P)

Physical Specification

Form Factor ATX

30.5cm x 24.4cm

Warranty Information

Warranty 3 years

DESCRIPTION

Asus ROG Strix Z690-I Gaming WiFi Motherboard

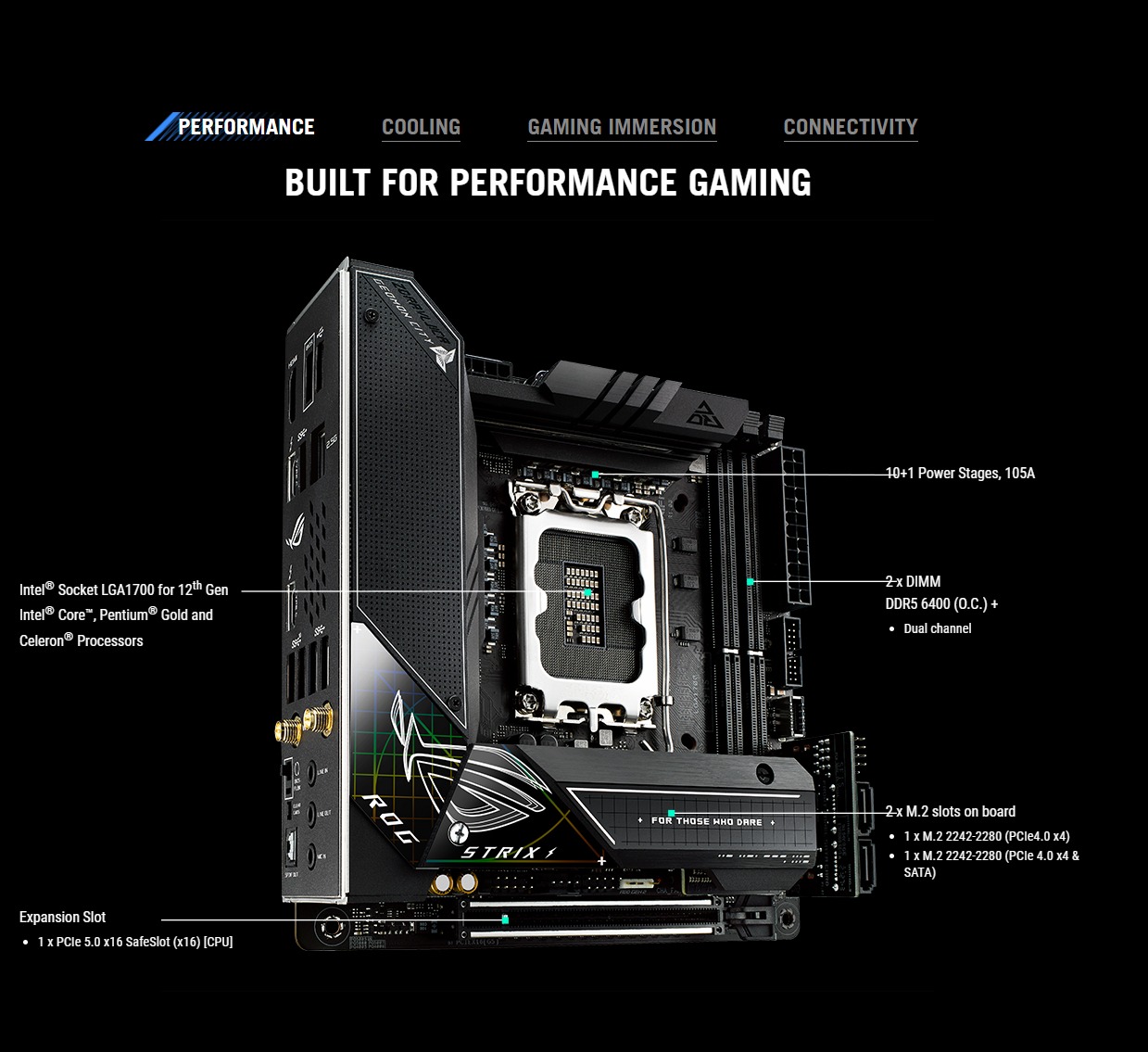

Asus ROG Strix Z690-I Gaming WiFi Motherboard Gaming WiFi packs premium-grade power delivery and triple-decker cooling into a compact mini-ITX form factor to unleash the full force of 12th Gen Intel Core processors. Framerates and load times can be boosted even further by all-new support for DDR5 memory and PCIe 5.0. Plus, onboard WiFi 6E and PCIe 4.0 M.2 slots bring lightning-fast performance to an endless variety of scenarios. Digital power control and an array of power stages provide the muscle needed to control the latest Intel CPUs. 10+1 power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors can take full advantage of. The ROG Strix Z690-I Gaming WiFi comes with an expansion card that provides additional functionality including four SATA ports, one ARGB lighting header, and connectors for a front panel header and a PC speaker. This efficient use of space enables builders to construct some of the most compact PC builds with full features, or could also connect the power button via the 2-pin Power_BTN onboard for even more compact builds.

UNDENIABLY ROG STRIX

The ROG Strix Z690-I Gaming WiFi design language is defined by futuristic grids and meshes that may seem low-key at first, until users gaze upon the lower left-hand corner that glows with an iridescent grid pattern.

UEFI BIOS

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

5-WAY OPTIMIZATION

[product_table id="34" limit="10" type="filter" filter_category="6082"]

REVIEWS

No reviews yet

Be the first to share your thoughts about this product.

What is the Asus ROG Strix Z690-I Gaming WiFi 12th Gen Intel Mini-ITX Motherboard Price in Bangladesh 2026 ?

The Asus ROG STRIX Z690-I GAMING WIFI Price in BD is 30৳ . This Asus ROG Strix Z690-I Gaming WiFi 12th Gen Intel Mini-ITX Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus ROG STRIX Z690-I GAMING WIFI by 30৳ and its regular price is 33,330৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
