Stock Status | Out Of Stock |
Product ID | 22333 |
Brand | Asus |
Product model | ROG STRIX Z690-A GAMING WIFI D4 |
Warranty | 3 years |
Total Reviews | Based on 0 reviews. - Write a review |
Out Of Stock
- Stock availability is subject to change. Please confirm availability before shopping by calling us.
- The product image is for illustration purposes only. The actual product may vary in size, color, and layout. No claim will be accepted for an image mismatch.
- Tech Land BD can change the price of any product at any moment due to the volatile price of the technology.
- We cannot guarantee that the information on this page is 100% correct. Tech Land BD is not responsible for the results obtained from the use of this information.
Processor | |
Supported CPU | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
Mainboard | |
Chipset | Intel Z690 |
Memory | |
Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/ 4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3300(OC)/3200/3000/ 2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III |
Storage | |
Supported Storage | Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)** 6 x SATA 6Gb/s ports*** |
Graphics | |
Graphics | 1 x DisplayPort (Support max. 8K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
Audio & Microphone | |
Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitch SV3H712 AMP - Premium audio capacitors - Audio cover |
Networking & Connectivity | |
WiFi | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
Ports | |
Slots | Intel® 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot Intel® Z690 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 1 x PCIe 3.0 x1 slot |
Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (support USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x 12-1 pin Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
USB | Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 7 ports 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Technical Info | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Physical Specification | |
Form Factor | ATX 30.5cm x 24.4cm |
Others | |
Other Features | Extreme Engine Digi+ -5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers ASUS HYDRANODE - 1 x 12-1 pin Front Panel Audio header (AAFP) - 1 x Chassis fan support* (CHA_FAN1P) |
Warranty Information | |
Warranty | 3 years |

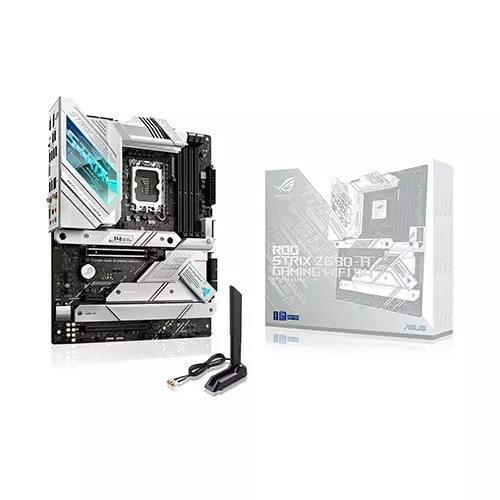

Asus ROG STRIX Z690-A GAMING WIFI D4 Motherboard
The ROG STRIX Z690-A GAMING WIFI D4 LGA 1700 ATX Motherboard from ASUS. Designed around Intel’s 12th Gen processors, this motherboard provides enhanced system-wide functionality by allowing you to install a wide range of components, making this ideal for gaming enthusiasts.
Based on the Intel Z690 chipset, you get an LGA1700 socket, four dual-channel DDR5 RAM slots, six SATA III ports, and four M.2 interfaces, all working in tandem to provide enhanced system performance. Connect a variety of graphics and utility cards with one PCIe 5.0 x16, one PCIe 3.0 x16, and one PCIe 3.0 x1 slot. USB 3.2 Gen 1, Gen 2, and Gen 2×2 ports allow you to use a wide range of peripherals such as keyboards, mice, external drives, and more. Bluetooth 5.2 technology provides wireless connectivity for devices such as controllers and headphones. Wi-Fi 6 (802.11ax) connectivity allows you to use wireless networking or use the 2.5 Gigabit Ethernet port, both suitable for competitive online gaming. Additionally, the ROG STRIX Z690-A GAMING WIFI D4 supports both Windows 10 and 11 (64-bit) right out of the box.
Robust Power Solution
Constructed from high-grade 5K Black Metallic capacitors, alloy chokes, 16+1 DrMOS power stages, ProCool II sockets, and Digi+ VRM, the ROG STRIX Z690-A GAMING WIFI D4 delivers optimal power performance suitable for your gaming needs.
Comprehensive Cooling
Gaming for prolonged periods of time can cause heat to build up within your case, so ASUS designed the ROG STRIX Z690-A GAMING WIFI D4 to leverage multiple thermal solutions that efficiently dissipate heat. VRM heatsink, PCH fanless heatsink, double-sided M.2 heatsink, M.2 heatsink backplate, hybrid fan headers, and Fan Xpert 4 with HydraNode utility software all work together to ensure your components stay cool.
Networking
Whether you prefer wired or wireless networking, the ROG STRIX Z690-A GAMING WIFI D4 includes a 2.5 Gigabit Ethernet port and Wi-Fi 6E (802.11ax) wireless capabilities. LANGuard technology ensures you get the strongest wired signal possible with lower latency, essential for competitive online gaming.
USB Connectivity
Equipped with various ports and headers designed to provide power to external devices, you get USB 3.2 Gen 1 and Gen 2 ports, designed to provide support for resource-demanding peripherals with data transfer speeds up to 5 and 10 Gb/s, respectively. The USB 3.2 Gen 2×2 boasts up to 20 Gb/s data transfer speeds, allowing you to use advanced devices such as audio and video interfaces. An internal Thunderbolt 4 header enables you to equip your system with an optional Thunderbolt 4 card, unlocking 40 Gb/s transfer speeds, daisy-chaining, and additional video-out support.
ASUS Q-Design
Embracing a unique design focused on making installation of components quicker, ASUS’ Q-Design with Q-DIMM allows you to install memory modules easily with locking mechanisms. Q-Latch makes installation and removal of M.2 storage drive quick and easy. PCIe Slot Q-Release and Q-Slot offer a larger release mechanism so you can remove your graphics and utility cards. Q-LED uses various LEDs that tell you which components are running properly upon startup, making troubleshooting easier in the event of a failure.
DIY Friendly
Whether you are a seasoned builder or brand new, the ROG STRIX Z690-A GAMING WIFI D4 provides you with several additions that make installation easier. A pre-mounted I/O shield makes placing the motherboard into the case easier and saves time compared to traditional separated I/O shields. SafeDIMM adds a metal divider on the RAM slots for the safer installation of memory modules. SafeSlot fortifies your PCIe 5.0 slot with metal reinforcement for stronger retention designed to support heavier graphics cards. BIOS Flashback button allows you to update the BIOS without building your entire system and the BIOS Flashback LED notifies you about the status of your system during the update process. Clear CMOS resets your motherboard settings to the default value.
ROG STRIX Aesthetics
Sporting a new ID design, your system will look as impressive as ever. Illuminate your finished product in an array of lighting and effects with integrated RGB and Gen 2 addressable headers, allowing you to use a wide range of RGB and ARGB strips. An illuminated acrylic display adds another sense of style to the ROG STRIX Z690-A GAMING WIFI D4. Aura Sync can unify your compatible devices like mice and keyboards to match your rig for a unique theme that fits your style.
Audio
The ROG SupremeFX 7.1-channel surround sound ALC4080 codec and Savitch SV3H712 AMP deliver a high-quality audio experience worthy of your gaming immersion. You get high-quality 120 dB SNR stereo playback output and 113 dB SNR recording input, ideal for content creators and live streamers. DTS Sound Unbound and Sonic Studio III enable you to explore the greater depth of sound with multiple EQ settings.
ASUS Exclusive Software
Included with your ROG STRIX Z690-A GAMING WIFI D4 is a suite of exclusive software designed to help you monitor, manage, and overclock your system. You get the ASUS Armoury Crate package with AURA Sync, AURA Creator, Fan Xpert 4, and Two-Way AI Noise Cancelation. AI Suite 3 includes performance and power-saving utilities like TurboV EVO, EPU, GameFirst VI, and DIGI+ VRM. Additionally, you get ROG CPU-Z which detects and monitors your processor and connected devices. You also get limited access to MyASUS, WinRAR, and a limited free trial version of AIDA64 Extreme software.
UEFI BIOS
Manage your system and enable overclocking with UEFI BIOS. Advanced mode allows you to fine-tune your system with a wide range of settings and options while EZ Mode simplifies the experience. EZ Flash 3 allows you to upgrade your BIOS firmware to the latest iteration by using a USB drive to save and upload the file. The CrashFree BIOS 3 rescue function resets your system in the event of an update failure or corruption. You also gain access to an AI Overclocking Guide, FlexKey, and MemTest86, designed to help you achieve new heights with your system.
