ASUS ROG STRIX Z590-F GAMING WIFI Intel LGA 1200 ATX Motherboard
- Chipset: Intel Z590 Chipset
- LAN 1 x Intel: 2.5Gb Ethernet
- Form Factor: ATX 30.5cm x 24.4cm
- BIOS: 256 Mb Flash ROM
SPECIFICATIONS
Processor
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Mainboard
Memory
4DDR4 (Dual channel)
Max Memory Size:
128GB
DDR4 5333(OC)5133(OC)/5000(OC)/4800(OC)/4600(OC)/4500(OC)/4400(OC)/4267(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Storage
Intel®11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.
Intel® Z590 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**
6 x SATA 6Gb/s ports
Graphics
1 x HDMI 2.0**
Graphics specifications may vary between CPU types.
Only Intel® 11th processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates
Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.
Networking & Connectivity
Audio & Microphone
Impedance sense for front and rear headphone outputs
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
Supports up to 32-Bit/384 kHz playback"
Audio Features
SupremeFX Shielding Technology ALC4080 + Savitech SV3H712 AMP
audio jacks
Rear audio USB Type-C® port
Premium Japanese audio capacitors
Audio cover
Ports
Gen Processors
3 x PCIe 4.0/3.0 x16 slot(s)*
- Intel® 11th processors support PCIe 4.0 x16 or x8/x4/x4 mode(s)
- Intel® 10th processors support PCIe 3.0 x16 or x8/x4/x4 mode(s)
Intel® Z590 Chipset
1 x PCIe 3.0 x4 slot
Supports PCIe bandwidth bifurcation for RAID on CPU function.
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
1 x VRM heatsink Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
3 x AURA Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x Clear CMOS header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x TPM-M header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
1 x S/PDIF out header

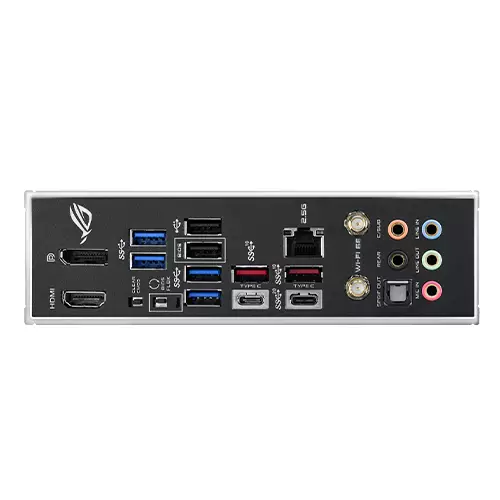

4 x USB 3.2 Gen 2 port(s) (4 x Type-A)
5 x USB 2.0 port(s) (4 x Type-A, 1 x Audio USB Type-C®)
1 x HDMI™ port
1 x DisplayPort
1 x ASUS Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack™ button
Total 10 ports
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
4 x USB 3.2 Gen 2 port (4 x Type-A)
5 x USB 2.0 port(s) (4 x Type-A + 1 x USB Type-C®)
Front USB:
Total 7 ports
1 x USB 3.2 Gen 1 connector(s) (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(
s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Physical Specification
30.5cm x 24.4cm
Warranty Information
DESCRIPTION

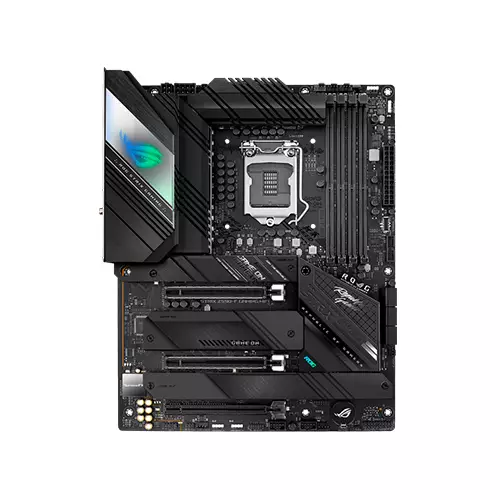

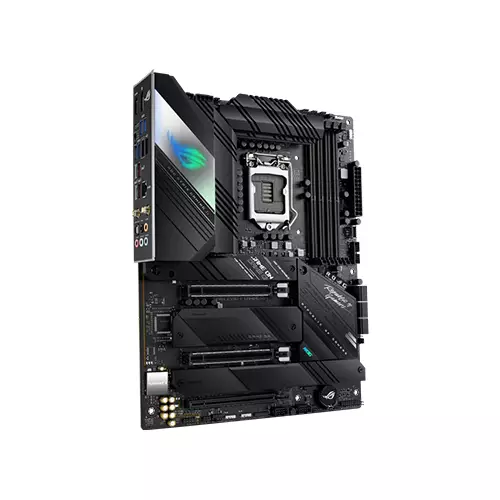

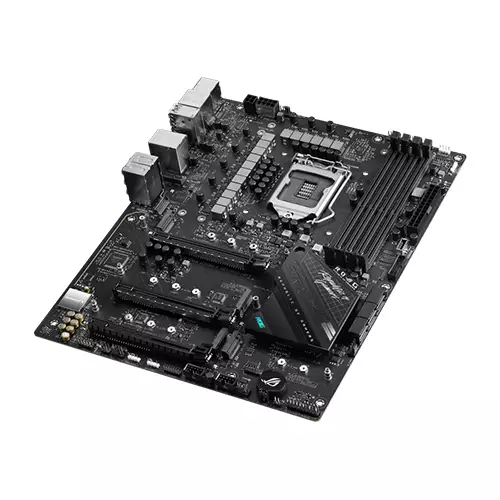

ASUS ROG STRIX Z590-F GAMING WIFI Motherboard
The ROG Strix Z590-F Gaming WiFi motherboard is designed with boosted power delivery and optimized cooling to meet the demands of powerful 11th Generation Intel® Core™ Rocket Lake processors. Along with the latest Intel® Wi-Fi 6 and PCI Express® 4.0 M.2 for superfast transfer speeds and storage, Strix Z590-F Gaming WiFi features Two-Way AI Noise Cancelation to ensure clear communication in any scenario. It also looks good, with a stunning silver-and-gray color scheme that complements the brushed-metal finish on the heatsinks.
Ready for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Optimal Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
Optimized Thermal Design: VRM and aluminum I/O heatsink, three onboard M.2 heatsinks, including an M.2 backplate for the PCIe 4.0 M.2 slot
High-performance Networking: On-board Intel® WiFi 6 AX200 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
Best Gaming Connectivity: Supports HDMI™ 2.0 and DisplayPort 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2x2 USB Type-C®
Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ and FlexKey
Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB header and Gen 2 addressable headers
Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
REVIEWS
Login to write a review.
No reviews yet
Be the first to share your thoughts about this product.
