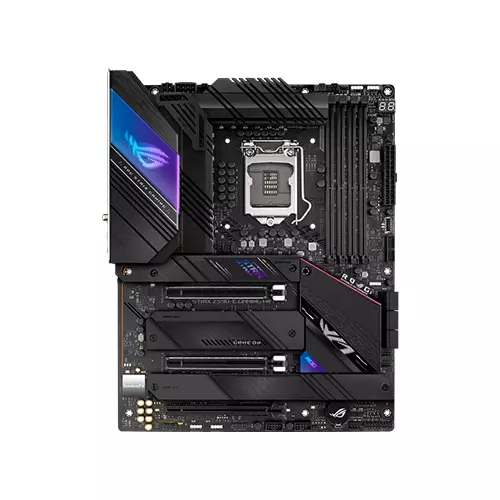

ASUS ROG STRIX Z590-E GAMING WIFI Intel LGA 1200 ATX Motherboard
ASUS ROG STRIX Z590-E GAMING WIFI Intel LGA 1200 ATX Motherboard

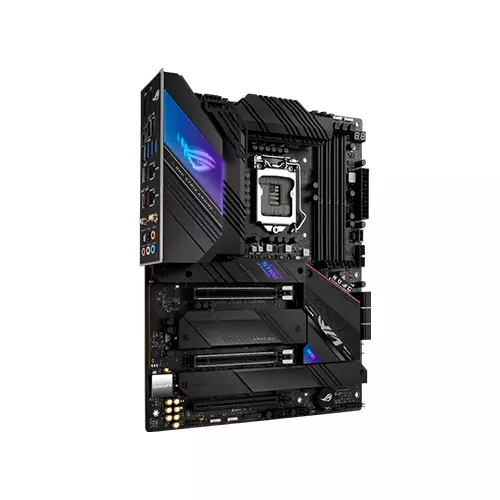

ASUS ROG STRIX Z590-E GAMING WIFI Intel LGA 1200 ATX Motherboard - 1

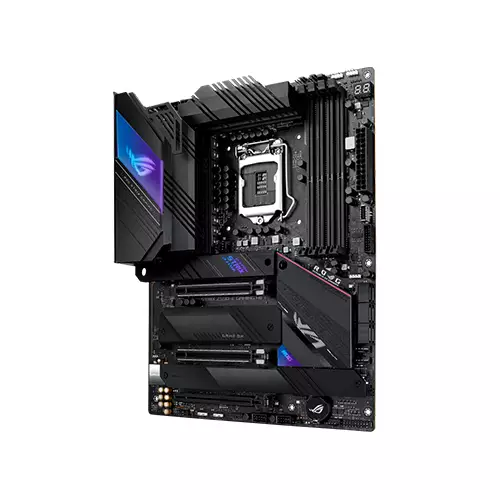

ASUS ROG STRIX Z590-E GAMING WIFI Intel LGA 1200 ATX Motherboard - 2
ASUS ROG STRIX Z590-E GAMING WIFI Intel LGA 1200 ATX Motherboard - 3

ASUS ROG STRIX Z590-E GAMING WIFI Intel LGA 1200 ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025062534
Brand : Asus
Model : ROG STRIX Z590-E GAMING WIFI
Warranty : 3 Years
  • Chipset Intel Z590 Chipset
  • Memory DDR4 (Dual channel)
  • Supported 11th Gen/Pentium/Celeron
  • LAN 2 x Intel I225-V 2.5Gb

SPECIFICATIONS

Processor

Supported CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*

Mainboard

Chipset Intel Z590 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory Memory Channels:
4DDR4 (Dual channel)
Max Memory Size:
128GB
DDR4 5333(OC)5133(OC)/5000(OC)/4800(OC)/4600(OC)/4500(OC)/4400(OC)/4267(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

Storage

Supported Storage Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.
Intel® Z590 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**
6 x SATA 6Gb/s ports

Graphics

Graphics 1 x DisplayPort 1.4**
1 x HDMI 2.0**
Graphics specifications may vary between CPU types.
Only Intel® 11th processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates
Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.

Networking & Connectivity

LAN 2 x Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard

Audio & Microphone

Audio SupremeFX Shielding Technology
ALC4080 + Savitech SV3H712 AMP
Gold-plated audio jacks
Rear optical S/PDIF out port
Premium Japanese audio capacitors
Audio cover

Ports

Slots Intel® 11th &10th Gen Processors
2 x PCIe 4.0/3.0 x16 slot(s)*
Intel® 11th processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s)
Intel®10th processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s)
Intel® Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)**
Internal I/O Ports 1 x Thunderbolt 4 (onboard)
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
3 x 4-pin Chassis Fan header(s)
1 x VRM heatsink Fan header1 x W_PUMP+ header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
3 x AURA Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x Q Code
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
External I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x USB Type-C® )
4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI™ port
1 x DisplayPort
1 x Intel® Wi-Fi 6E
2 x Intel® I225-V 2.5Gb Ethernet
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
USB Rear USB:
Total 10 ports
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
3 x USB 3.2 Gen 2 port (2 x Type-A, 1 x USB Type-C® )
4 x USB 3.2 Gen 1 port (4 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
Front USB:
Total 7 ports
1 x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Physical Specification

Form Factor ATX
30.5cm x 24.4cm

Warranty Information

Warranty 03 Years

DESCRIPTION

ASUS ROG STRIX Z590-E GAMING WIFI Motherboard

ROG Strix Z590-E Gaming WiFi motherboard is designed with boosted power delivery and optimized cooling to cope with the demands of powerful 11th Generation Intel® Core™ Rocket Lake processors. Along with the latest Intel® Wi-Fi 6 and PCI Express® 4.0 M.2 for superfast transfer speeds and storage, Strix Z590-E Gaming WiFi features Two-Way AI Noise Cancelation to ensure clear communication in any scenario. It also looks good, with a stunning silver and gray color scheme that complements the brushed-metal-finish on the heatsinks.

Ready for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Optimal Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors

Optimized Thermal Design: VRM and aluminum I/O heatsink, three onboard M.2 heatsinks, including an M.2 backplate for the PCIe 4.0 M.2 slot

High-performance Networking: On-board Intel® WiFi 6 AX200 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard

Best Gaming Connectivity: Supports HDMI™ 2.0 and DisplayPort 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2x2 USB Type-C®

Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance

DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ and FlexKey

Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB header and Gen 2 addressable headers

Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III

Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86



[product_table id="34" limit="10" type="filter" filter_category="6082"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASUS ROG STRIX Z590-E GAMING WIFI Intel LGA 1200 ATX Motherboard Price in Bangladesh 2026 ?

The Asus ROG STRIX Z590-E GAMING WIFI Price in BD is 5,550৳ . This ASUS ROG STRIX Z590-E GAMING WIFI Intel LGA 1200 ATX Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus ROG STRIX Z590-E GAMING WIFI by 5,550৳ and its regular price is 77,770৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
