Asus ROG Strix Z490-E Gaming Wi-Fi Intel 10th Gen LGA 1200 ATX Motherboard
Asus ROG Strix Z490-E Gaming Wi-Fi Intel 10th Gen LGA 1200 ATX Motherboard
Asus ROG Strix Z490-E Gaming Wi-Fi Intel 10th Gen LGA 1200 ATX Motherboard - 1
Asus ROG Strix Z490-E Gaming Wi-Fi Intel 10th Gen LGA 1200 ATX Motherboard - 2
Asus ROG Strix Z490-E Gaming Wi-Fi Intel 10th Gen LGA 1200 ATX Motherboard - 3
Asus ROG Strix Z490-E Gaming Wi-Fi Intel 10th Gen LGA 1200 ATX Motherboard - 4
Asus ROG Strix Z490-E Gaming Wi-Fi Intel 10th Gen LGA 1200 ATX Motherboard - 5

Asus ROG Strix Z490-E Gaming Wi-Fi Intel 10th Gen LGA 1200 ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025062224
Brand : Asus
Model : ROG Strix Z490-E Gaming
Warranty : 3 Years
  • Support 10th Gen/Pentium/Celeron
  • Chipset Intel Z490
  • Dual Channel Memory
  • Supports AMD 3-Way CrossFireX

SPECIFICATIONS

Processor

Supported CPU Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Mainboard

Chipset Intel Z490
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Memory

Memory 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
OptiMem II

Storage

Supported Storage Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel Z490 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Optane Memory Ready

Graphics

Multi-GPU Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
Graphics Integrated Graphics Processor
DisplayPort 1.4
HDMI 1.4b
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology

Networking & Connectivity

LAN Intel I225-V 2.5Gb Ethernet
ASUS LANGuard

Audio & Microphone

Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
Dual OP Amplifiers
Impedance sense for front and rear headphone outputs
Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
Supports up to 32-Bit/192kHz playback *
Audio Feature :
SupremeFX Shielding Technology
Gold-plated jacks
Optical S/PDIF in port(s) at back panel
LED-lit Audio Shielding
Premium Japanese audio capacitors

Ports

Slots 4 x DIMM
Internal I/O Ports 1 x M.2_FAN connector
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
2 x Addressable RGB header
1 x AAFP connector
2 x Aura RGB Strip Headers
1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x CPU_OV jumper
1 x Q-Code
1 x VRM_HS_FAN Header

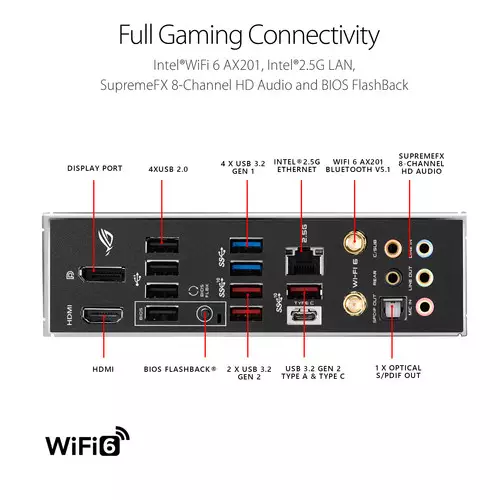

External I/O Ports 1 x Intel® I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C®)
2 x USB 3.2 Gen 1
4 x USB 2.0
1 x Optical S/PDIF out
1 x USB BIOS FlashBack Button(s)
5 x Gold-plated audio jacks
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
USB Rear USB Port ( Total 10 )
4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x USB Type-C®)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)
Front USB Port ( Total 7 )
1 x USB 3.2 Gen 2 port(s)(1 x USB Type-C®)
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
HDMI HDMI 1.4b

Physical Specification

Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty Information

Warranty 03 Years

DESCRIPTION

Asus ROG Strix Z490-E Gaming Wi-Fi Motherboard in Bangladesh

Powered exclusively by 10th Generation Intel Core processors, the Republic of Gamers Strix Z490-E Gaming LGA 1200 ATX Motherboard from ASUS features enhanced power delivery and an optimized cooling design with a larger surface area for improved heat dissipation. It also delivers AI enhancements and intuitive dashboards to help users overclock and tweak other various parameters more easily. The ROG Strix Z490-E Gaming fits in ATX-sized cases, supports the LGA 1200 socket and Intel Z4900 chipset, and is compatible with Windows.

The ATX form factor of the ROG Strix Z490-E Gaming supports up to 128GB of DDR4 RAM across four slots, or 32GB per slot, at speeds up to 4600 MHz. For storage, there are six SATA III 6 Gb/s ports and two M.2 Sockets with M key, one of which supports PCIe 3.0 x4 and SATA SSDs in types 2242, 2260, 2280, and 22110, while the other supports PCIe 3.0 x4 SSDs in types 2242, 2260, 2280, and 22110.

There is also one USB 3.2 Gen 2 Type-C port (rear panel), three USB 3.2 Gen 2 Type-A ports (rear panel), two USB 3.2 Gen 1 Type-A ports (rear panel), four USB 2.0 Type-A ports (rear panel), one USB 3.2 Gen 2 connector (front panel), plus additional internal USB headers that support USB 3.2 Gen 1 and USB 2.0. For those looking to expand their system using PCIe, there are two PCIe 3.0/2.0 x16 slots (x16 or x8/x8), one PCIe 3.0 x16 slot (max at x4), and three PCIe x1 slots.

For delivering sharp, clear graphics, this motherboard has integrated HDMI 1.4 and DisplayPort 1.4 outputs. For users looking to take advantage of multi-GPUs, the ROG Strix Z490-E Gaming supports NVIDIA 2-Way SLI and AMD 3-Way CrossFireX technologies.

Using the ROG SupremeFX S1220 HD audio codec, the ROG Strix Z490-E Gaming delivers higher-fidelity audio than standard controllers. This motherboard is also equipped with features such as OptiMem II, AURA Sync, Aura RGB Srip Headers, SafeSlot, Q-LED, RAMCache III, UEFI BIOS, 2.5 Gigabit Ethernet, dual-band Wi-Fi 6 (802.11ax), Bluetooth 5.1, and more. A limited 3-year warranty protects this motherboard.




REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Asus ROG Strix Z490-E Gaming Wi-Fi Intel 10th Gen LGA 1200 ATX Motherboard Price in Bangladesh 2026 ?

The Asus ROG Strix Z490-E Gaming Price in BD is 2,220৳ . This Asus ROG Strix Z490-E Gaming Wi-Fi Intel 10th Gen LGA 1200 ATX Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus ROG Strix Z490-E Gaming by 2,220৳ and its regular price is 33,330৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
