Asus ROG STRIX Z390-E GAMING DDR4 8th/9th Gen Intel LGA1151 Socket Motherboard
Asus ROG STRIX Z390-E GAMING DDR4 8th/9th Gen Intel LGA1151 Socket Motherboard

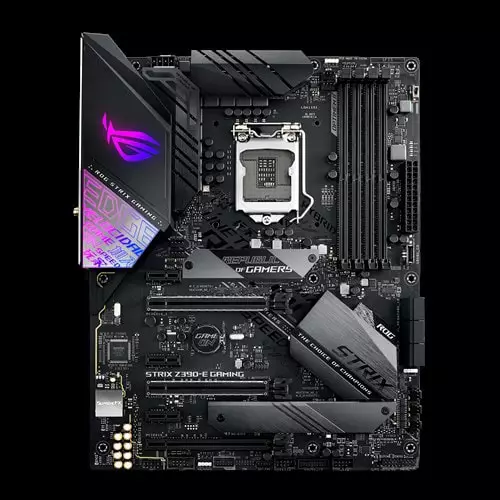

Asus ROG STRIX Z390-E GAMING DDR4 8th/9th Gen Intel LGA1151 Socket Motherboard - 1
Asus ROG STRIX Z390-E GAMING DDR4 8th/9th Gen Intel LGA1151 Socket Motherboard - 2

Asus ROG STRIX Z390-E GAMING DDR4 8th/9th Gen Intel LGA1151 Socket Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061236
Brand : Asus
Model : Asus ROG STRIX Z390-E GAMING
Warranty : 3 Years
  • Chipset Intel Z390
  • Supported 9th/8th/Pentium/Celeron
  • Integrated Graphics Processor
  • LAN Intel I219V Anti-surge

SPECIFICATIONS

Processor

Supported CPU Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0

Mainboard

Chipset Intel® Z390
BIOS 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1

Memory

Memory 4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

Storage

Supported Storage Intel® Z390 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready

Graphics

Graphics Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Networking & Connectivity

LAN Intel® I219V
Anti-surge LANGuard
ROG GameFirst Technology

Audio & Microphone

Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *2
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link

Ports

Slots 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
3 x PCIe 3.0/2.0 x1
Internal I/O Ports 1 x Aura Addressable Strip Header(s)
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! II switch(es)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x 14-1 pin TPM connector
1 x COM port header
1 x AIO PUMP Header
1 x USB 3.1 Gen 2 front panel connector
External I/O Ports 1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 2 (3 x Type-A+1 x USB Type-CTM)
2 x USB 3.1 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x ASUS Wi-Fi Module
USB 5 x USB3.1 Gen 2, 4 x USB3.1 Gen 1, 6 x USB2.0

Physical Specification

Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty Information

Warranty 03 YEARS

DESCRIPTION

Asus ROG STRIX Z390-E GAMING Intel LGA1151 Socket Motherboard

Specifications :

●︎ LGA1151 socket for 9th/ 8th Gen Intel® Core™ desktop processors

●︎ Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips

●︎ Comprehensive cooling: Dual onboard M.2 heatsink, water-pump header, fan-extension header and a MOS fan with bracket

●︎ 5-Way Optimization: Automated system-wide tuning, providing AI overclocking and cooling profiles tailor-made for your rig

●︎ Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C connectors

●︎ Gaming networking: Intel Gigabit Ethernet, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, LANGuard and GameFirst

●︎ Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action

●︎ Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance


**03 Year Warranty


Asus ROG STRIX Z390-E GAMING

 Asus ROG Strix Z390-E Gaming amps the power delivery and stacks a comprehensive set of cooling options to tame Intel's latest CPUs. Together with a wealth of enhancements, including one-click optimization, the latest connectivity and futuristic styling with onboard illumination, ROG Strix Z390-E Gaming makes a formidable foundation for ATX gaming builds that go above and beyond.


SOLID HARDWARE SPECS FOR GAMING AND MORE

With comprehensive cooling options and upgraded power delivery to fuel CPUs with more cores, plus support for faster memory and storage, ROG Strix Z390-E Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.


 Power Design

Digital power control and an array of DrMOS power stages ensure the ROG Strix Z390 Gaming has the muscle to control Intel's latest CPUs.


 COOLER BY DESIGN

ROG Strix Z390 Gaming series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS


 Dual PCIe 3.0 M.2

ROG Strix Z390-E Gaming features dual M.2 slots. One slot supports both SATA and PCIe 3.0 x4 modes, and the other slot supports PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available.


 DDR4 OC 4266MHz+

To provide Intel's latest CPUs unfettered access to memory bandwidth, motherboard trace routing has been reimagined with the ROG Strix Z390-E Gaming. Integrated OptiMem II technology carefully maps memory signal pathways across PCB layers to reduce vias, and it also adds shielding zones that significantly reduce crosstalk. To further enhance overclocking headroom for fully stacked memory configurations, a highly customized T-Topology layout delivers time-aligned signaling.


 Intel Gigabit Ethernet

ROG Strix Z390-E Gaming features Intel Ethernet (I219-V), ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.


 LANGuard

Featuring advanced signal-coupling technology and high-tolerance components, LANGuard provides consistent Ethernet performance and greater protection against static electricity and power surges.


 SupremeFX

Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.


 DESIGN, CUSTOMIZATION, AND SETUP

A host of design touches, including a unique cyber-text pattern, plus customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix Z390-E Gaming wonderfully easy.


 Cyber Fusion

An illuminated ROG logo with a natural diffuse glow and onboard I/O shroud lighting with a futuristic cyber-text pattern gives ROG Strix Z390-E Gaming a unique and arresting design that communicates its gaming identity. The cyber outlook extends to the PCB and heatsink with subtle textures that contribute a premium look and feel.


 Outshine the Competition

ROG Strix motherboards deliver sterling performance and superior aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.


 Certified Compatibility

Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. That's why ROG Strix undergoes an extensive certification program focused on providing


[product_table id="34" limit="10" type="filter" filter_category="6082"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Asus ROG STRIX Z390-E GAMING DDR4 8th/9th Gen Intel LGA1151 Socket Motherboard Price in Bangladesh 2026 ?

The Asus Asus ROG STRIX Z390-E GAMING Price in BD is 24,500৳ . This Asus ROG STRIX Z390-E GAMING DDR4 8th/9th Gen Intel LGA1151 Socket Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus Asus ROG STRIX Z390-E GAMING by 24,500৳ and its regular price is 25,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
