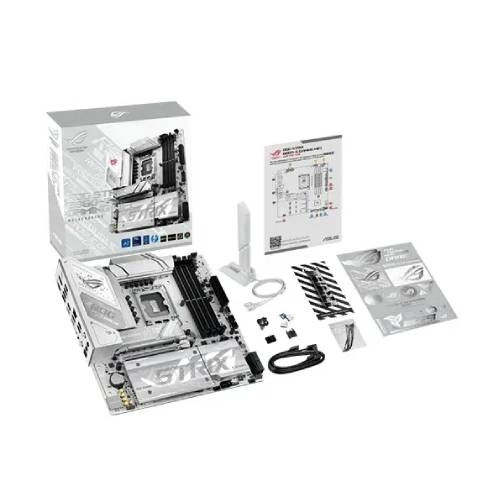

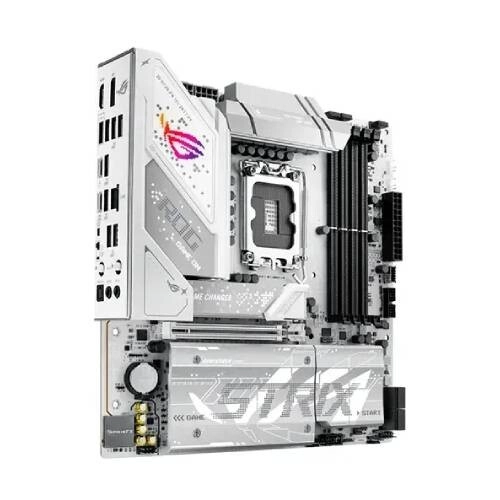

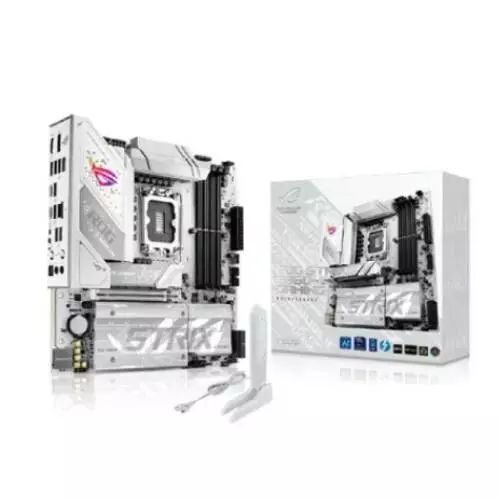

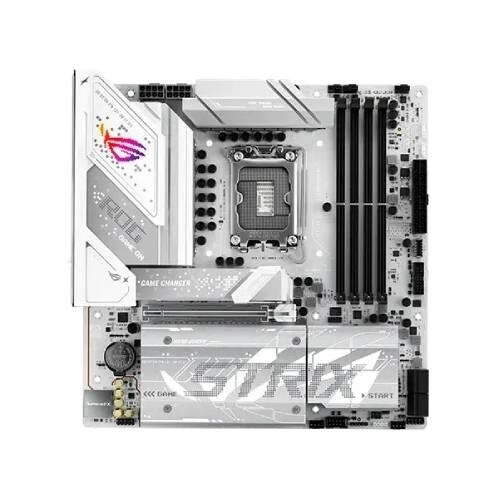

ASUS ROG STRIX B860-G GAMING WIFI Intel LGA1851 mATX Gaming Motherboard
- Intel Core Ultra, LGA1851 Socket
- DDR5 Up to 9066+ MT/s
- PCIe 5.0 x16, 4× M.2 Slots
- WiFi 7, 2.5Gb Ethernet
Product Pricing
EMI Start From*
৳1,405
SPECIFICATIONS
Processor
Supported CPU
Support Intel Core™ Ultra Processors (Series 2)*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel B860 Chipset
Mainboard
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Memory
Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and
memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of
product information site or visit https://www.asus.com/support/download-center/.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Supports up to 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and
memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of
product information site or visit https://www.asus.com/support/download-center/.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Storage
Supported Storage
Total supports 4 x M.2 slots and 4 x SATA
6Gb/s ports*
Intel Core Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280
(supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2230/2280 (supports
PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports
SATA RAID 0/1/5/10.
6Gb/s ports*
Intel Core Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280
(supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2230/2280 (supports
PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports
SATA RAID 0/1/5/10.
Graphics
Graphics
1 x DisplayPort**
1 x HDMI™ port***
1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
****Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support
please check DisplayPort 2.1 specs.
***** VGA resolution support depends on the processor's or graphics card's resolution.
1 x HDMI™ port***
1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
****Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support
please check DisplayPort 2.1 specs.
***** VGA resolution support depends on the processor's or graphics card's resolution.
Networking & Connectivity
Bluetooth
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio & Microphone
Audio
Realtek ALC1220P 7.1 Surround Sound
High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz
playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz
playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Ports
Slots
Intel Core Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
- To ensure compatibility of the device
installed, please refer to https://www.asus.com/support/download-center/ for
the list of supported peripherals.
1 x PCIe 5.0 x16 slot
- To ensure compatibility of the device
installed, please refer to https://www.asus.com/support/download-center/ for
the list of supported peripherals.
Internal I/O Ports
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 header supports 3 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 header(s)
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 header supports 3 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 header(s)
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
USB
Rear USB (Total 10 ports)
1 x Thunderbolt 4 port (1 x USB Type-C)
1 x USB 20Gbps ports (1 x USB Type-C)
1 x USB 10Gbps ports (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 10Gbps connector (supports USB
Type-C)
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
2 x USB 2.0 header supports 3 additional
USB 2.0 ports
* USB Type-C power delivery output: max.
5V/3A
1 x Thunderbolt 4 port (1 x USB Type-C)
1 x USB 20Gbps ports (1 x USB Type-C)
1 x USB 10Gbps ports (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 10Gbps connector (supports USB
Type-C)
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
2 x USB 2.0 header supports 3 additional
USB 2.0 ports
* USB Type-C power delivery output: max.
5V/3A
Software
Operating System
Windows 11 (22H2 & later)
Software Features
ROG Exclusive Software:
ROG CPU-Z
Dolby Atmos
ASUS Exclusive Software
Armoury Crate:
Aura Creator
Aura Sync
Fan Xpert 4
GameFirst
Power Saving
AIDA64 Extreme (60 days free trial)
HWiNFO
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
Adobe Creative Cloud 30 Days Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS:
AI Overclocking Guide
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey
NPU Boost
ROG CPU-Z
Dolby Atmos
ASUS Exclusive Software
Armoury Crate:
Aura Creator
Aura Sync
Fan Xpert 4
GameFirst
Power Saving
AIDA64 Extreme (60 days free trial)
HWiNFO
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
Adobe Creative Cloud 30 Days Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS:
AI Overclocking Guide
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey
NPU Boost
Special Features
Special Features
ASUS Thermal Solution:
M.2 heatsink backplate
M.2 heatsink
VRM heatsink design
ASUS EZ DIY:
BIOS FlashBack button
BIOS FlashBack LED
Clear CMOS button
CPU Socket lever protector
ProCool
Pre-mounted I/O shield
SafeSlot
SafeDIMM
Aura Sync:
Addressable Gen2 headers
M.2 heatsink backplate
M.2 heatsink
VRM heatsink design
ASUS EZ DIY:
BIOS FlashBack button
BIOS FlashBack LED
Clear CMOS button
CPU Socket lever protector
ProCool
Pre-mounted I/O shield
SafeSlot
SafeDIMM
Aura Sync:
Addressable Gen2 headers
Others
Accessories
Cables: 2 x SATA 6Gb/s cables
Miscellaneous:
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch
1 x M.2 Q-Slide
1 x ROG key chain
1 x ROG Strix stickers
3 x M.2 rubbers
1 x M.2 backplate rubber package(s)
Documentation:
1 x Quick start guide
Miscellaneous:
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch
1 x M.2 Q-Slide
1 x ROG key chain
1 x ROG Strix stickers
3 x M.2 rubbers
1 x M.2 backplate rubber package(s)
Documentation:
1 x Quick start guide
Other Features
Ethernet 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Back Panel I/O Ports 1 x Thunderbolt 4 USB Type-C port(s)
1 x USB 20Gbps port(s) (1 x USB Type-C with DP Alt mode)
1 x USB 10Gbps port(s) (1 x Type-A)
3 x USB 5Gbps port(s) (3 x Type-A)
4 x USB 2.0 port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
ASUS LANGuard
Back Panel I/O Ports 1 x Thunderbolt 4 USB Type-C port(s)
1 x USB 20Gbps port(s) (1 x USB Type-C with DP Alt mode)
1 x USB 10Gbps port(s) (1 x Type-A)
3 x USB 5Gbps port(s) (3 x Type-A)
4 x USB 2.0 port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Physical Specification
Form Factor
micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Warranty Information
Warranty
3-Year Replacement Warranty
*(Terms and Conditions Applied)
*(Terms and Conditions Applied)
DESCRIPTION
ASUS ROG STRIX B860-G GAMING WIFI Intel LGA1851 mATX Gaming Motherboard
The ASUS ROG STRIX B860-G GAMING WIFI is a feature-rich micro-ATX gaming motherboard designed for Intel Core Ultra Processors (Series 2) with the LGA1851 socket. Powered by the Intel B860 chipset, it supports up to 256GB of DDR5 memory across four DIMM slots, with speeds of up to 9066+ MT/s (OC), depending on the CPU and memory configuration. Intel XMP and ASUS Enhanced Memory Profile III help optimize compatible memory modules. For graphics and expansion, the motherboard features 1 x PCIe 5.0 x16 slot, along with DisplayPort, HDMI 2.1, and Thunderbolt 4 video connectivity. Storage options include four M.2 slots one supporting PCIe 5.0 x4 and three supporting PCIe 4.0 x4 plus four SATA 6Gb/s ports with Intel Rapid Storage Technology RAID 0/1/5/10 support. Networking includes Intel 2.5Gb Ethernet, ASUS LANGuard, and integrated 2x2 Wi-Fi 7 supporting 2.4GHz, 5GHz, and 6GHz bands. It also features Bluetooth 5.4 for compatible wireless devices. The extensive USB connectivity includes Thunderbolt 4, USB 20Gbps Type-C, USB 10Gbps, USB 5Gbps, and USB 2.0 ports. For audio, the motherboard uses a Realtek ALC1220P 7.1-channel High Definition Audio CODEC, supported by SupremeFX Shielding Technology, a Savitech amplifier, premium audio capacitors, dedicated audio PCB layers, and optical S/PDIF output. ASUS Q-Design features such as M.2 Q-Latch, Q-Release, Q-DIMM, Q-LED, and Q-Slot make installation and troubleshooting easier. M.2 heatsinks, VRM heatsinks, SafeSlot, BIOS FlashBack, Clear CMOS, Aura Sync, and multiple fan headers further support a reliable and customizable PC build. Its 24.4 × 24.4 cm micro-ATX form factor makes it suitable for compact gaming and performance-focused systems.
Buying ASUS ROG STRIX B860-G GAMING WIFI Intel LGA1851 Motherboard From Tech Land BD
If you are planning to build or upgrade an Intel-based gaming PC in Bangladesh, the ASUS ROG STRIX B860-G GAMING WIFI provides modern connectivity, DDR5 memory support, PCIe 5.0, Wi-Fi 7, Thunderbolt 4, multiple M.2 storage slots, and 2.5Gb Ethernet in a compact micro-ATX design. You can buy the ASUS ROG STRIX B860-G GAMING WIFI from Tech Land BD. Check the latest price, availability, and warranty details before placing your order.
FAQs
Which processors are compatible with the ASUS ROG STRIX B860-G GAMING WIFI?
It supports Intel Core Ultra Processors (Series 2) using the Intel LGA1851 socket.
How much RAM does this motherboard support?
It has four DDR5 DIMM slots and supports up to 256GB of memory, with speeds up to 9066+ MT/s (OC), depending on the CPU and memory configuration.
Does the motherboard support Wi-Fi 7?
Yes. It features 2x2 Wi-Fi 7 with support for the 2.4GHz, 5GHz, and 6GHz frequency bands, along with Bluetooth 5.4.
REVIEWS
Login to write a review.
No reviews yet
Be the first to share your thoughts about this product.
What is the ASUS ROG STRIX B860-G GAMING WIFI Intel LGA1851 mATX Gaming Motherboard Price in Bangladesh 2026 ?
The Asus ROG STRIX B860-G GAMING WIFI Price in BD is 39,900৳ . This ASUS ROG STRIX B860-G GAMING WIFI Intel LGA1851 mATX Gaming Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus ROG STRIX B860-G GAMING WIFI by 39,900৳ and its regular price is 41,000৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
Related Products
Save: ৳600
ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX 11th Gen Intel Motherboard
৳10,400
৳11,000
Save: ৳1,500
ASUS PRIME H610M-F D4 R2.0 Intel 14th & 13th Gen Micro-ATX Motherboard
৳10,300
৳11,800
Save: ৳3,450
Asus PRIME H610M-R Micro-ATX DDR5 14th GEN Intel Motherboard
৳11,450
৳14,900
Save: ৳1,400
Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard
৳14,700
৳16,100
Save: ৳900
ASUS Pro Q570M-C/CSM Intel LGA1200 Micro ATX Motherboard
৳12,100
৳13,000
Save: ৳5,000
ASUS Pro WS TRX50-SAGE WIFI Workstation Motherboard
৳131,000
৳136,000
Save: ৳2,450
Asus PRIME H610M-CS DDR5 micro-ATX 13th Gen Motherboard
৳11,550
৳14,000
Save: ৳1,400
Asus PRIME B760M-K D4 LGA1700 mATX 14th intel Motherboard
৳15,100
৳16,500
Save: ৳1,700
ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard
৳10,800
৳12,500
Save: ৳1,000
ASUS H810M AYW GAMING WIFI LGA1851 DDR5 mATX Motherboard
৳17,500
৳18,500
