ASUS ROG STRIX B860-A GAMING WIFI Intel LGA1851 ATX Gaming Motherboard
- Chipset: Intel B860 Chipset for Core Ultra Processors (Series 2)
- Socket: Intel Socket LGA1851
- Memory: 4 x DIMM slots, max. 256GB, DDR5
- Storage: Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
⌨️ PC BUILD + FREE KL-139 KEYBOARD
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Mainboard
Memory
Supports up to 8600+MT/s (OC), Non-ECC Un-buffered, Clocked
Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
Storage
6Gb/s ports*
Intel Core Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
** M.2_4 slot shares bandwidth with PCIEX16(G4).
When the PCIEX16(G4) slot is operating, M.2_4 will be disabled.
Graphics
1 x HDMI port***
1 x USB4 (20Gbps) ports support USB
Type-C display outputs****
* Graphics specifications may vary between
CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
**** In USB4 mode, supports up to 4K@60Hz,
maximum total bandwidth up to 23.8Gbps,
for resolution support please check DisplayPort 1.4 specs. In DP alt mode, supports up to UHBR10.
***** VGA resolution support depends on processors' or graphic cards' resolution.
******While installing the operating system,
please ensure that your monitor is connected to
the HDMI port on the back I/O panel or to a discrete graphics card.
Networking & Connectivity
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
ASUS LANGuard
Audio & Microphone
High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphones and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-bit/192 kHz
playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF outport
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover

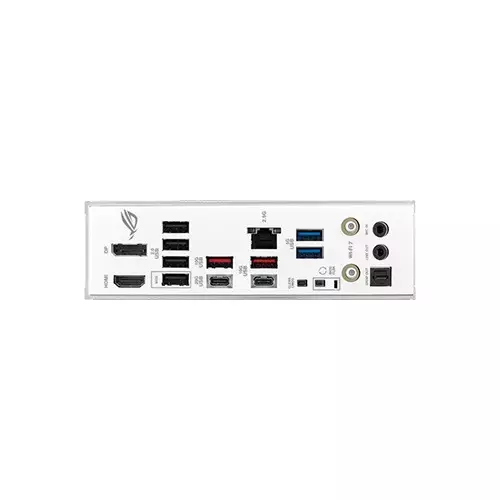

Ports
1 x USB4 (20Gbps) port (1 x USB Type-C)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 header(s)
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header
1 x USB4 (20Gbps) port (1 x USB Type-C)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A
Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- GameFirst
- Power Saving
AIDA64 Extreme (60 days free trial)
HWiNFO
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
Adobe Creative Cloud 30 Days Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost
Special Features
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen2 headers
Others
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch
1 x M.2 Q-Slide
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubbers
Documentation
1 x Quick Start guide
Physical Specification
1 x PCIe 5.0 x16 slot
Intel B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* M.2_4 slot shares bandwidth with PCIEX16(G4).
When PCIEX16(G4) slot is operating, M.2_4 will be disabled.
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Technical Info
Warranty Information
*(Terms and Conditions Applied)
DESCRIPTION
ASUS ROG STRIX B860-A GAMING WIFI Intel LGA1851 ATX Gaming Motherboard in Bangladesh
ASUS ROG STRIX B860-A GAMING WIFI Intel LGA1851 ATX Gaming Motherboard is a powerhouse designed for gamers, creators, and tech enthusiasts seeking top-tier performance and cutting-edge features. Available at Tech Land BD, this motherboard supports Intel Core Ultra Processors (Series 2) with Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, delivering exceptional processing power for gaming, multitasking, and content creation. With four DIMM slots supporting up to 256GB of DDR5 memory and speeds of up to 8600+ MT/s (OC), the ROG STRIX B860-A ensures lightning-fast performance for memory-intensive tasks. The motherboard features four M.2 slots and four SATA 6Gb/s ports, providing extensive storage options with support for PCIe 5.0 and 4.0 SSDs, making it ideal for high-speed data transfer and large storage needs. Graphics capabilities are enhanced with one DisplayPort, one HDMI port, and one USB4 (20Gbps) port, supporting up to 4K@60Hz resolution for stunning visuals. Networking is seamless with Wi-Fi 7 and an Intel 2.5Gb Ethernet port, offering ultra-fast connectivity for online gaming and streaming.
The motherboard also includes ten rear USB ports, including USB4, USB 10Gbps, and USB 5Gbps ports, along with front-panel USB 10Gbps and 5Gbps headers for expanded connectivity. Audio enthusiasts will appreciate the Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC, delivering high-fidelity audio with 120 dB SNR playback and 113 dB SNR recording. The ASUS ROG STRIX B860-A also features advanced cooling solutions, including M.2 heatsinks and VRM heatsinks, ensuring optimal thermal performance during intense gaming sessions. With its ATX form factor, sleek design, and RGB lighting customization via Aura Sync, this motherboard is a perfect centerpiece for any high-performance gaming rig. Elevate your gaming and productivity with the ASUS ROG STRIX B860-A GAMING WIFI, available now at Tech Land BD.
What processors are compatible with the ASUS ROG STRIX B860-A GAMING WIFI motherboard?
The motherboard supports Intel Core Ultra Processors (Series 2) with Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0.
Does the ASUS ROG STRIX B860-A support DDR5 memory?
Yes, it supports DDR5 memory with four DIMM slots, accommodating up to 256GB and speeds of up to 8600+ MT/s (OC).
What connectivity options does the ASUS ROG STRIX B860-A offer?
It features Wi-Fi 7, an Intel 2.5Gb Ethernet port, USB4 (20Gbps), USB 10Gbps ports, and multiple M.2 slots for high-speed storage and connectivity.
