Stock Status | Out Of Stock |
Product ID | 29316 |
Brand | Asus |
Product model | ROG STRIX B760-A GAMING WIFI D4 |
Warranty | 3 Years |
Total Reviews | Based on 1 reviews. - Write a review |
Out Of Stock
- Chipset: Intel® B760 Chipset
- Memory: 4 x DIMM, Max. 128GB, DDR4
- Wireless: Wi-Fi 6E
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
- Stock availability is subject to change. Please confirm availability before shopping by calling us.
- The product image is for illustration purposes only. The actual product may vary in size, color, and layout. No claim will be accepted for an image mismatch.
- Tech Land BD can change the price of any product at any moment due to the volatile price of the technology.
- We cannot guarantee that the information on this page is 100% correct. Tech Land BD is not responsible for the results obtained from the use of this information.
Processor | |

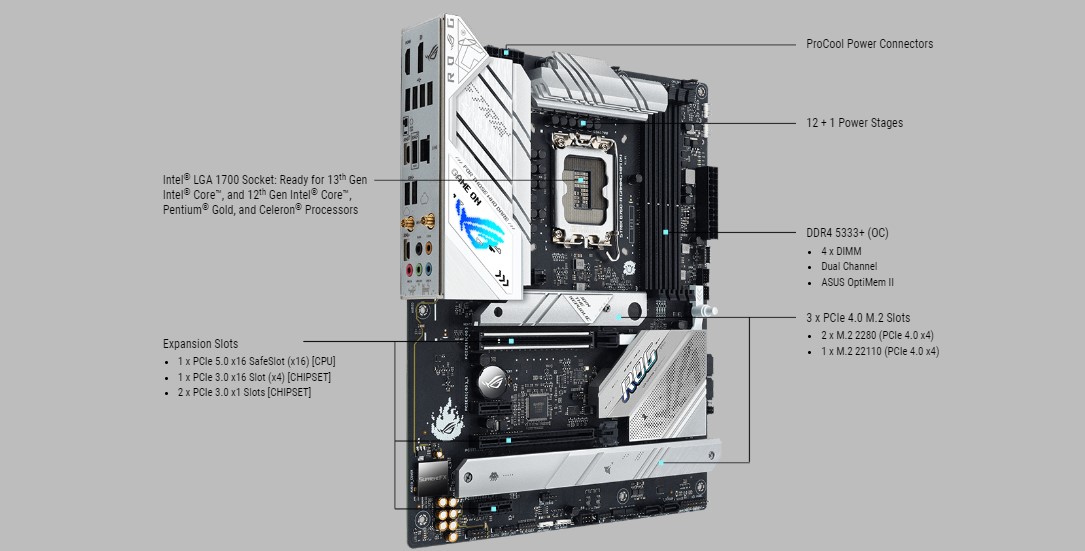

Supported CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Mainboard | |
Chipset | Intel® B760 Chipset |
Memory | |
Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/ 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. |
Storage | |
Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
Graphics | |
Graphics | 1 x DisplayPort** 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. // Please refer to AMD CPU specifications. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4 *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. |
Audio & Microphone | |
Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors - Dedicated audio PCB layers - Audio cover *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. |
Networking & Connectivity | |
LAN | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard // TUF LANGuard |
WiFi | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band |
Bluetooth | Bluetooth® v5.3 |
Ports | |

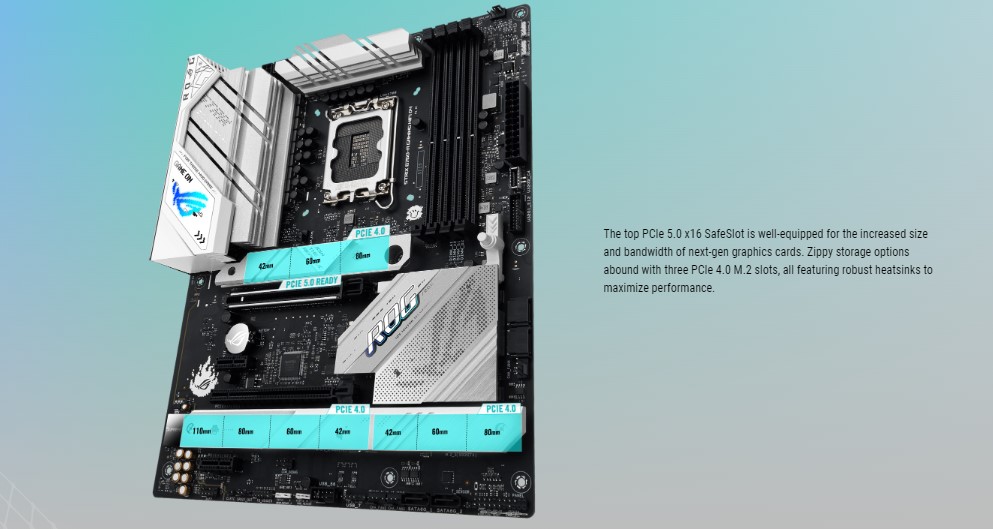

Slots | Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 2 x PCIe 3.0 x1 slots* * PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only supports x2 mode. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5 pin System Panel header 1 x Thunderbolt™ (USB4®) header |
External I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
USB | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 port (2 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports |
HDMI | 1 x HDMI® port |
Technical Info | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Special Features | |

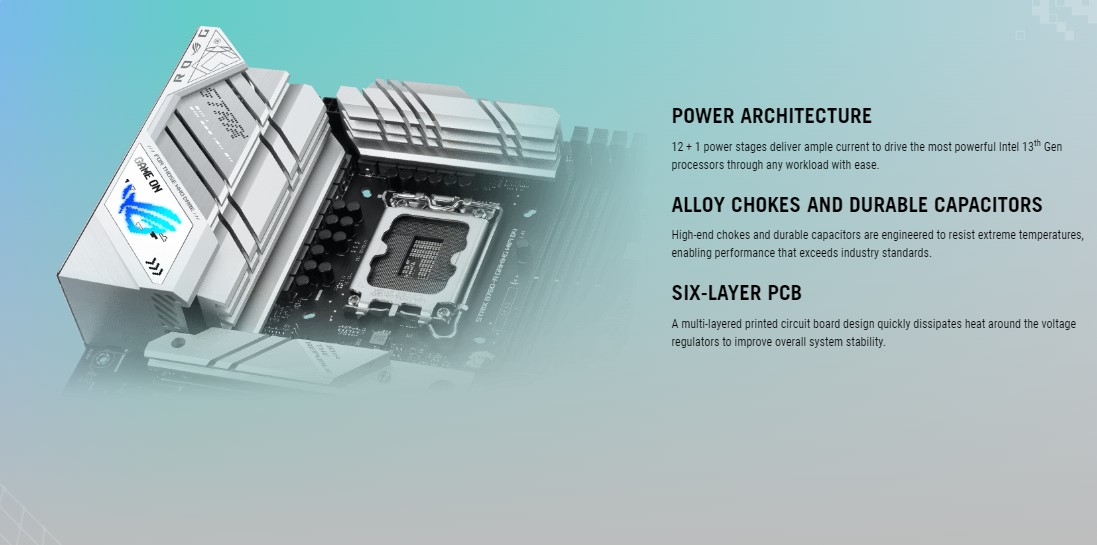

Special Features | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers |
Software Features | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - DIGI+ VRM - PC Cleaner MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
Physical Specification | |
Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Others | |
Other Features | Manageability: WOL by PME Accessories: Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 1 x M.2 Rubber Packages Documentation 1 x User guide Operating System: Windows® 11, Windows® 10 64-bit |
Warranty Information | |
Warranty | 3 Years |

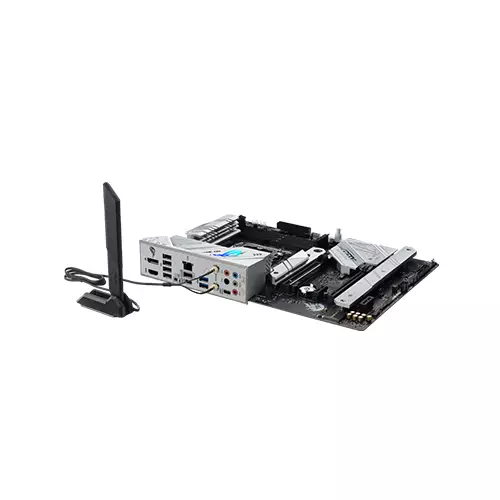

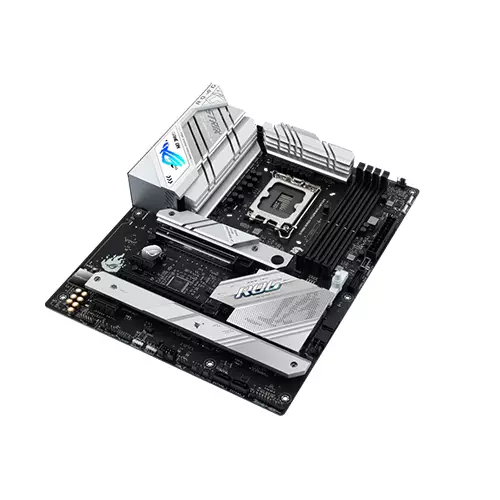

ASUS ROG STRIX B760-A GAMING WIFI D4 12TH/13TH GEN MOTHERBOARD
Asus ROG STRIX B760-A GAMING WIFI D4 12th/13th gen Motherboard is designed to support Intel Socket LGA1700 for 13th Gen Intel Core Processors and 12th Gen Intel Core, Pentium Gold, and Celeron Processors, with compatibility for Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. The chipset for this motherboard is the Intel B760 Chipset. It supports a maximum of 128GB of DDR4 memory and has 4 DIMM slots with Dual Channel Memory Architecture, supporting Intel Extreme Memory Profile (XMP) and OptiMem II. Graphics are supported with 1 DisplayPort and 1 HDMI port, with VGA resolution support depending on processor or graphics card resolution. Expansion slots include 1 PCIe 5.0 x16 slot for 13th and 12th Gen processors and 1 PCIe 3.0 x16 slot (supports x4 mode) and 2 PCIe 3.0 x1 slots for the Intel B760 Chipset. Storage includes a total of 3 M.2 slots and 4 SATA 6Gb/s ports, with Intel Rapid Storage Technology supporting SATA RAID 0/1/5/10.
Ethernet is supported with 1 Intel 2.5Gb Ethernet and ASUS LANGuard/TUF LANGuard. Wireless and Bluetooth capabilities include Wi-Fi 6E with 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) and Bluetooth v5.3, with the WiFi 6E 6GHz regulatory varying between countries. The rear USB includes 1 USB 3.2 Gen 2x2 port (1 USB Type-C), 1 USB 3.2 Gen 2 port (1 Type-A), 3 USB 3.2 Gen 1 ports (2 Type-A, 1 USB Type-C), and 4 USB 2.0 ports (4 Type-A). The front USB includes 1 USB 3.2 Gen 2 connector (supports USB Type-C), 1 USB 3.2 Gen 1 header supporting 2 additional USB 3.2 Gen 1 ports, and 1 USB 2.0 header and 1 USB 2.0 5-1 pin header supporting 3 additional USB 2.0 ports. Audio is supported with ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, with features such as Impedance sense for front and rear headphone outputs, Jack-detection, Multi-streaming, Front Panel Jack-retasking, and high quality 120 dB SNR stereo playback output and 113 dB SNR recording input, as well as SupremeFX Shielding Technology, Savitech SV3H712 AMP, Premium audio capacitors, Dedicated audio PCB layers, and Audio cover. The rear panel I/O ports include 1 USB 3.2 Gen 2x2 port (1 USB Type-C), 1 USB 3.2 Gen 2 port (1 Type-A), 4 USB 3.2 Gen 1 ports (4 Type-A), 1 Intel 2.5Gb Ethernet port, and audio jacks. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Asus Motherboard available at Techland BD is well recognized. The large selection of Asus Motherboard available at Techland BD is well recognized.
