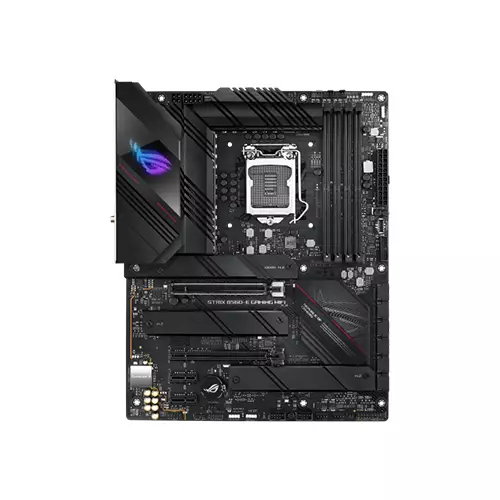

ASUS ROG STRIX B560-E GAMING WIFI LGA 1200 ATX Gaming Motherboard
ASUS ROG STRIX B560-E GAMING WIFI LGA 1200 ATX Gaming Motherboard
ASUS ROG STRIX B560-E GAMING WIFI LGA 1200 ATX Gaming Motherboard - 1
ASUS ROG STRIX B560-E GAMING WIFI LGA 1200 ATX Gaming Motherboard - 3
ASUS ROG STRIX B560-E GAMING WIFI LGA 1200 ATX Gaming Motherboard - 4
ASUS ROG STRIX B560-E GAMING WIFI LGA 1200 ATX Gaming Motherboard - 5

ASUS ROG STRIX B560-E GAMING WIFI LGA 1200 ATX Gaming Motherboard

0 Reviews
Stock : Discontinued
PID : P00025062824
Brand : Asus
Model : ROG STRIX B560-E GAMING WIFI
Warranty : 3 Years

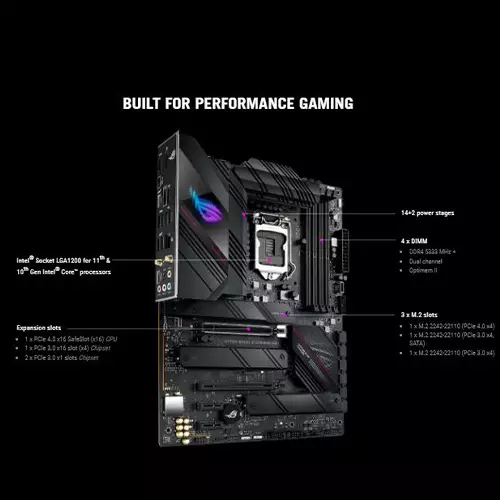

  • Intel B560 LGA 1200 ATX motherboard
  • PCIe 4.0, 14+2 teamed power stages
  • Two-Way AI Noise Cancelation
  • WiFi 6E (802.11ax), Intel 2.5 Gb Ethernet

SPECIFICATIONS

Processor

Supported CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Mainboard

Chipset Intel® B560 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*


Dual Channel Memory Architecture


Supports Intel® Extreme Memory Profile (XMP)


OptiMem II

Storage

Supported Storage Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel® B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)** 6 x SATA 6Gb/s ports * The M.2_2 share bandwidth with PCIEX16_2. When PCIEX16_2 runs x4 mode, M.2_2 can’t run PCIE mode (when M.2_2 runs at SATA mode, SATA6G_1 will be disabled) ** To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.

Graphics

Graphics 1 x DisplayPort 1.4
1 x HDMI 2.0***
* Graphics specifications may vary between CPU types

Networking & Connectivity

LAN ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080


- Impedance sense for front and rear headphone outputs


- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking


- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input


- Supports up to 32-Bit/384 kHz playback


Audio Features


- SupremeFX Shielding Technology


- ALC4080 + Savitech SV3H712 AMP


- Rear audio USB Type-C® port


- Premium Japanese audio capacitors


- Audio cover


* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
WiFi Intel® Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2 hardware ready**
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 10 build 21H1 or later.
** Bluetooth v5.2 function will be ready in Windows 10 build 21H1 or later

Audio & Microphone

Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - ALC4080 + Savitech SV3H712 AMP - Rear audio USB Type-C® port - Premium Japanese audio capacitors - Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio

Ports

Slots Intel® 11th&10th Gen Processors


1 x PCIe 4.0/3.0 x16 slot(s)


- Intel® 11th processors support PCIe 4.0 x16 mode


- Intel®10th processors support PCIe 3.0 x16 mode


Intel® B560 Chipset


1 x PCIe 3.0 x16 slot (supports x4 mode)*


2 x PCIe 3.0 x1 slots


* The PCIEX16_2 shares bandwidth with the M.2_2. When M.2_2 runs x4 mode, PCIEX16_2 will be disabled.

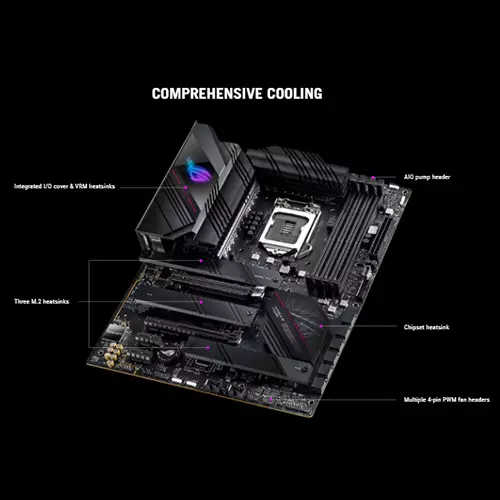

Internal I/O Ports Fan and Cooling related


1 x 4-pin CPU Fan header(s)


1 x 4-pin CPU OPT Fan header(s)


1 x 4-pin AIO Pump header(s)


3 x 4-pin Chassis Fan header(s)


Power related


1 x 24-pin Main Power connector


1 x 8-pin +12V Power connector


1 x 4-pin +12V Power connector


Storage related


3 x M.2 slots (Key M)


6 x SATA 6Gb/s ports


USB


1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)


1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports


Miscellaneous


2 x AURA Addressable Gen 2 header(s)


2 x AURA RGB header(s)


1 x Clear CMOS header


1 x Front Panel Audio header (AAFP)


1 x SPI TPM header (14-1pin)


1 x 20-5 pin System Panel header


1 x Thunderbolt™ header


1 x S/PDIF Out header

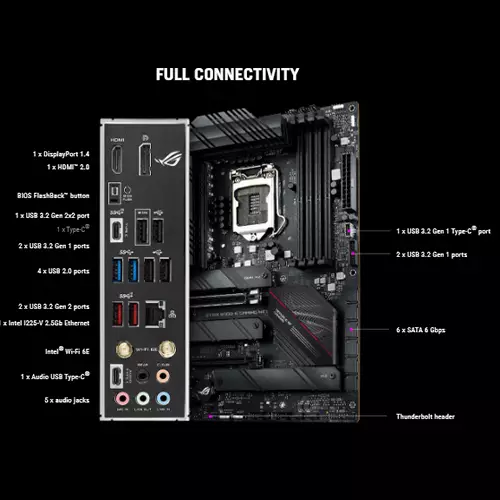

External I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)


2 x USB 3.2 Gen 2 port(s) (2 x Type-A)


2 x USB 3.2 Gen 1 port(s) (2 x Type-A)


5 x USB 2.0 port(s) (4 x Type-A, 1 x audio USB Type-C®)


1 x HDMI™ port


1 x DisplayPort


1 x ASUS Wi-Fi Module


1 x Intel® I225-V 2.5Gb Ethernet


5 x Audio jacks


1 x BIOS FlashBack™ button
USB Rear USB (Total 10 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 ports (2 x Type-A)


2 x USB 3.2 Gen 1 ports (2 x Type-A)


5 x USB 2.0 ports (4 x Type-A, 1 x audio USB Type-C®)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 1 connector(s) (suppport(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
HDMI 1 x HDMI 2.0***

Physical Specification

Form Factor ATX
30.5cm x 24.4cm

Warranty Information

Warranty 03 Years

DESCRIPTION

Asus ROG STRIX B560-E GAMING WIFI Motherboard

As the flagship model of the B560 series, Asus ROG STRIX B560-E GAMING WIFI Motherboard offers everything you need to create a well-balanced gaming system utilizing 11th Generation Intel® Core™ processors. It boasts robust power delivery and the latest Wi-Fi 6E networking standard, which is more commonly found on higher-end Z590-series boards, and it’s ready for the latest graphics cards and high-speed storage setups. This motherboard also includes enhancements, such as AI-infused utilities, that take performance well beyond the mainstream. As a finishing touch, futuristic aesthetics, accented by customizable RGB lighting, let you make the build uniquely yours.

Key Features:

  • Intel LGA 1200 Socket: Ready for 11th Gen Intel Core™, 10th Gen Intel Core, Pentium® Gold, and Celeron processors
  • Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes, and durable capacitors to support multi-core processors
  • High-performance Networking: On-board Intel WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI® 2.0 and DisplayPort 1.4 output, three M.2 slots, and USB 3.2 Gen 2x2 Type-C®
  • DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™
  •  and Q-LED

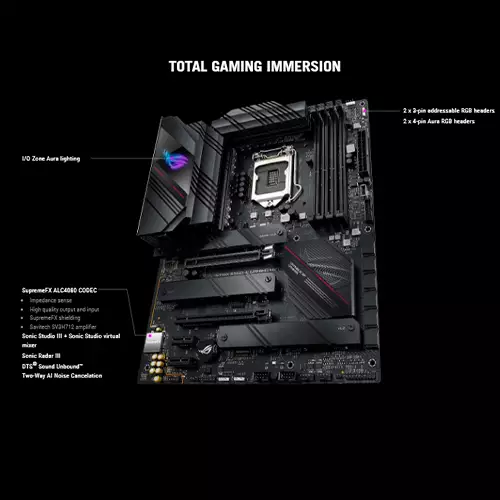

  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB and Gen 2 addressable headers
  • Industry-leading Gaming Audio: ALC4080 with Savitch SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
  • Renowned Software: Bundled 60-day AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard

TEAMED POWER STAGES

14+2 power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.

ALLOY CHOKES AND CAPACITORS

Superior chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

PRO COOL POWER CONNECTOR

The ASUS ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.

DIGI+ POWER CONTROL

The built-in Digi+ voltage-regulator module (VRM) is among the finest in the industry, ensuring ultra-smooth, clean power delivery to the CPU.

SIX-LAYER PCB

The PCB design quickly dissipates heat around the VRM to improve overall system stability and provide the CPU with more overclocking headroom.



REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASUS ROG STRIX B560-E GAMING WIFI LGA 1200 ATX Gaming Motherboard Price in Bangladesh 2026 ?

The Asus ROG STRIX B560-E GAMING WIFI Price in BD is 22,220৳ . This ASUS ROG STRIX B560-E GAMING WIFI LGA 1200 ATX Gaming Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus ROG STRIX B560-E GAMING WIFI by 22,220৳ and its regular price is 33,330৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
