Asus ROG Strix B460-H Gaming Intel 10th Gen ATX Motherboard
Asus ROG Strix B460-H Gaming Intel 10th Gen ATX Motherboard
Asus ROG Strix B460-H Gaming Intel 10th Gen ATX Motherboard - 0
Asus ROG Strix B460-H Gaming Intel 10th Gen ATX Motherboard - 0
Asus ROG Strix B460-H Gaming Intel 10th Gen ATX Motherboard - 0

Asus ROG Strix B460-H Gaming Intel 10th Gen ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061852
Brand : Asus
Model : Asus ROG Strix B460-H
Warranty : 3 Years
  • Chipset: Intel B460
  • Supported CPU: 10th Gen Intel Core
  • Slots: 4 x DDR4 DIMM
  • LAN: Intel I219-V

SPECIFICATIONS

Processor

Supported CPU Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Mainboard

Chipset Intel B460
BIOS 128MB Flash ROM, UEFI AMI BIOS

Memory

Memory 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem
10th Gen Intel Core i9/i7 CPUs support 2933/2800/2666/2400/2133 natively,

Storage

Supported Storage Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel B460 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Optane Memory Ready

Graphics

Multi-GPU Supports AMD 2-Way CrossFireX Technology
Graphics Integrated Graphics Processor
1 x DisplayPort 1.4
1 x HDMI 1.4b
Graphics specifications may vary between CPU types.
Support DisplayPort 1.4 with max. resolution of 4096 x 2304 60Hz.

Networking & Connectivity

LAN Intel I219-V 1Gb Ethernet
ASUS LANGuard

Audio & Microphone

Audio ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality120dBSNR stereo playback outputand113dBSNR recording input
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- SupremeFX Shielding Technology
- Rear audio USB Type-C port
- Premium Japanese audio capacitors
- Audio Cover

Ports

Slots 4 x DDR4 DIMM
Internal I/O Ports 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
1 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3
1 x M.2 with E key for Wi-Fi module
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel connector

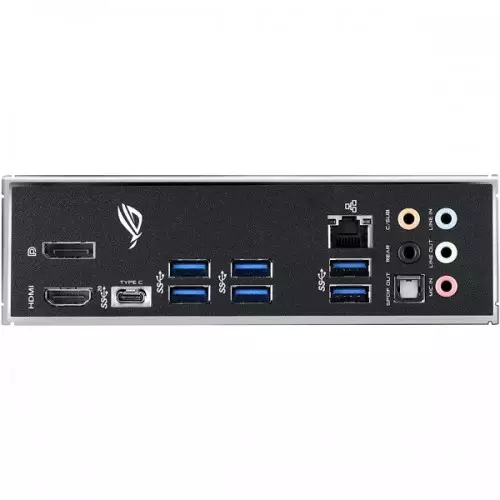

External I/O Ports 1 x Intel® I219-V 1Gb Ethernet
1 x DisplayPort
1 x HDMI
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
6 x USB 3.2 Gen 1
1 x Optical S/PDIF out
5 x Audio jack(s)
USB Rear USB Port ( Total 7 )
1 x USB 3.2 Gen 2x2 port(s)(1 x USB Type-C)
6 x USB 3.2 Gen 1 port(s)(6 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
HDMI 1 x HDMI 1.4b

Others

Other Features Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Protocol
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- Standard RGB header(s)
- Addressable Gen 2 RGB header(s)
Rear audio USB Type-C connector

Physical Specification

Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Dimension 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty Information

Warranty 03 Years

DESCRIPTION

Asus ROG Strix B460-H Gaming Intel 10th Gen ATX Motherboard

The ASUS Republic of Gamers Strix B460-H GAMING LGA 1200 ATX Motherboard is designed around the Intel B460 chipset, supporting 10th Gen Intel Core, Pentium Gold, and Celeron processors with an LGA 1200 socket. It has four memory slots supporting up to 128GB of dual-channel DDR4 RAM, which can run up to 2933 MHz. There are six SATA III ports and two M.2 slots for storage. This motherboard features an ATX form factor, allowing for use in mid-tower and full-tower cases. Other integrated features include Intel I219-V Gigabit Ethernet and ASUS ROG SupremeFX 7.1-channel HD audio.
Intel B460 Chipset
This motherboard features the Intel B460 Chipset and the Intel LGA Socket 1200, making it ready for 10th Gen Intel Core, Pentium Gold, and Celeron processors.
ASUS OptiMem Technology
ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and add shielding zones that significantly reduce crosstalk. This allows for improved memory stability and compatibility, lower memory latencies at equivalent voltages, and improved memory frequency margin.
Storage
The dual M.2 slots support data transfer rates of up to 32 Gb/s via PCIe 3.0 x4 bandwidth, enabling quicker boot times and app load times with OS or application drives.
