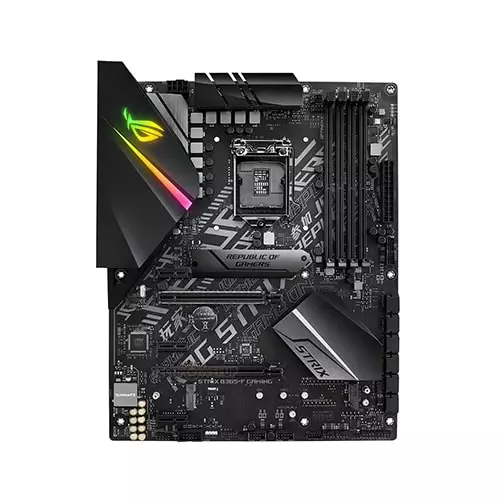

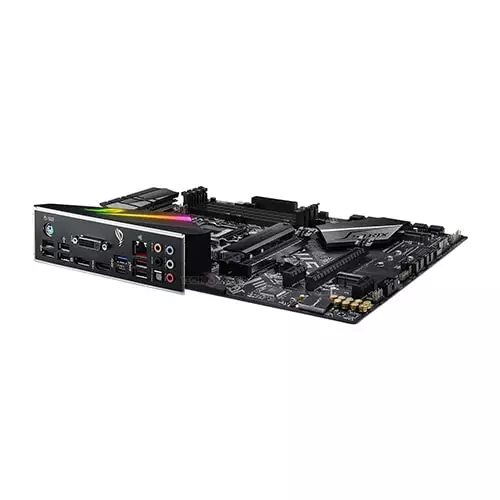

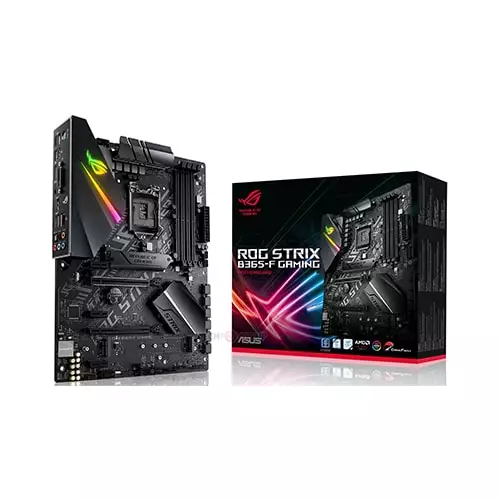

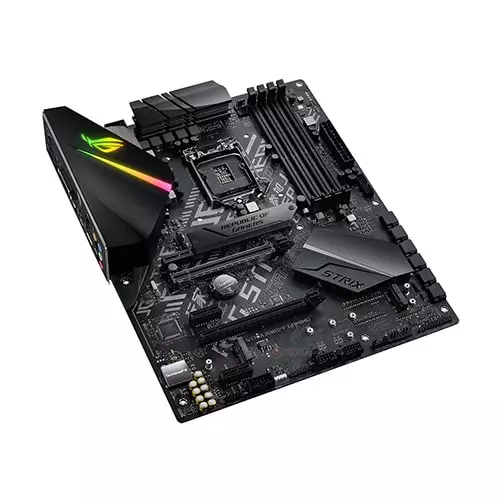

ASUS ROG STRIX B365-F RGB INTEL LGA-1151 ATX GAMING MOTHERBOARD
ASUS ROG STRIX B365-F RGB INTEL LGA-1151 ATX GAMING MOTHERBOARD
ASUS ROG STRIX B365-F RGB INTEL LGA-1151 ATX GAMING MOTHERBOARD - 1
ASUS ROG STRIX B365-F RGB INTEL LGA-1151 ATX GAMING MOTHERBOARD - 2
ASUS ROG STRIX B365-F RGB INTEL LGA-1151 ATX GAMING MOTHERBOARD - 3

ASUS ROG STRIX B365-F RGB INTEL LGA-1151 ATX GAMING MOTHERBOARD

0 Reviews
Stock : Discontinued
PID : P00025061178
Brand : Asus
Model : ROG STRIX B365-F
Warranty : 3 Years
  • Chipset: Intel® B365
  • Support Intel® Socket 1151 9th / 8th Gen
  • LAN: Intel® I219V
  • max. resolution 4096 x 2304 @ 60 Hz *1

SPECIFICATIONS

Processor

Supported CPU Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU

Mainboard

Chipset Intel® B365
BIOS 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1,
ACPI 6.1

Memory

Memory 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

Storage

Supported Storage Intel® B365 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*4
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready

Graphics

Graphics Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1

Networking & Connectivity

LAN Intel® I219V, 1 x Gigabit LAN Controller(s)
Anti-surge LANGuard
ROG GameFirst Technology

Audio & Microphone

Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *6
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link

Ports

Slots 1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (x4 mode) *2
3 x PCIe 3.0/2.0 x1 *3
Internal I/O Ports 1 x AAFP connector
1 x Aura RGB Strip Header(s)
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
6 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x COM port header
External I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (red)Type-A,
2 x USB 3.1 Gen 1 (black) Type-A + USB Type-CTM
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
USB Intel® B365 Chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, red)
Intel® B365 Chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 1 x Type-A+1 x Type-C)
Intel® B365 Chipset :
8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)

Physical Specification

Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty Information

Warranty 03 Year Warranty

DESCRIPTION

ASUS ROG STRIX B365-F RGB INTEL LGA-1151 ATX GAMING MOTHERBOARD

Specifications :

● LGA1151 socket: Ready for 9th/8th Gen Intel® Core™ desktop processors.

● Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including RGB strips.

● Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance.

● On-board M.2 heatsink: Cools M.2 drive to deliver consistent storage performance and enhanced reliability.

● Advanced cooling: Automated system-wide tuning and cooling profiles that are tailor-made for your rig.

● Gaming audio: SupremeFX S1220A teamed with Sonic Studio III creates immersive aural landscapes.

● Gaming connectivity: Dual M.2, USB 3.1 Gen 2 Type-A connectors, DisplayPort, HDMI and DVI.

● Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst for smoother, safer and lag-free online play.

**03 Year Warranty


ASUS ROG RGB INTEL LGA-1151 ATX GAMING MOTHERBOARD

ASUS rolled out its first ROG-branded ATX motherboard based on Intel B365 Express chipset, the ROG Strix B365-F Gaming. Supporting all 9th and 8th generation Core processors out of the box, this board is targeted at gamers who don't intend to overclock their CPUs or need memory clock speeds above DDR4-2667. The board draws power from a combination of 24-pin ATX and 8-pin EPS connectors, conditioning it for the CPU with a 10-phase VRM. The board supports up to 64 GB of dual-channel DDR4 memory capped at 2667 MHz.

Expansion includes one PCI-Express 3.0 x16 slot with metal reinforcement wired to the CPU, a PCI-Express 3.0 x4 (physical x16) slot wired to the B365 PCH, three PCIe x1, and an M.2 E-key slot for WLAN cards. Storage connectivity includes two M.2 slots each with PCI-Express 3.0 x4 wiring, one of which even has SATA 6 Gbps wiring; and six SATA 6 Gbps ports. USB connectivity includes two 10 Gbps USB 3.1 Gen 2 ports at the rear panel, and six 5 Gbps USB 3.0 ports, four on the rear panel, two by header. The onboard audio solution is premium ROG SupremeFX, combining a Realtek ALC1220A CODEC with dual high-impedance headphones amplifiers, audio-grade capacitors, and ground-layer isolation. The board's sole 1 GbE interface is pulled by the ubiquitous Intel i219-V controller


[product_table id="34" limit="10" type="filter" filter_category="6082"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASUS ROG STRIX B365-F RGB INTEL LGA-1151 ATX GAMING MOTHERBOARD Price in Bangladesh 2026 ?

The Asus ROG STRIX B365-F Price in BD is 24,999৳ . This ASUS ROG STRIX B365-F RGB INTEL LGA-1151 ATX GAMING MOTHERBOARD Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus ROG STRIX B365-F by 24,999৳ and its regular price is 29,999৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
