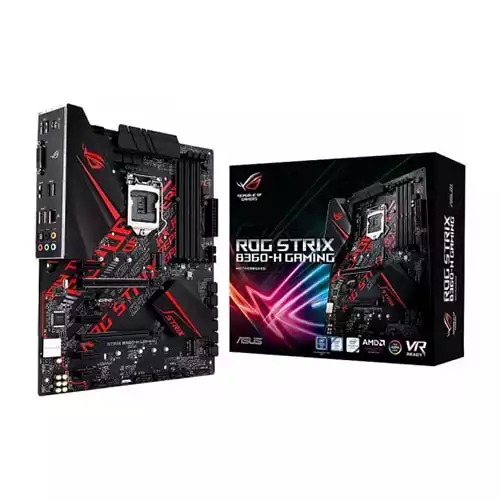

Asus ROG STRIX B360-H GAMING 8th Gen ATX Motherboard
Asus ROG STRIX B360-H GAMING 8th Gen ATX Motherboard
Asus ROG STRIX B360-H GAMING 8th Gen ATX Motherboard - 1
Asus ROG STRIX B360-H GAMING 8th Gen ATX Motherboard - 2
Asus ROG STRIX B360-H GAMING 8th Gen ATX Motherboard - 3

Asus ROG STRIX B360-H GAMING 8th Gen ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061388
Brand : Asus
Model : B360-H GAMING
Warranty : 3 Years
  • Brand: Asus
  • Name: Asus ROG STRIX B360-H GAMING 8th Gen ATX Motherboard
  • Model: B360-H GAMING

SPECIFICATIONS

Processor

Supported CPU Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0

Mainboard

Chipset Intel B360
BIOS 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS
ASUS EZ Flash 3, CrashFree BIOS 3, Secure Erase, User Profile, F6 Qfan Control, F3 My Favorites, Last Modified log, F12
PrintScreen, F4 AURA ON/OFF and F9 Search

Memory

Memory 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered, Register Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

Storage

Supported Storage Intel® B360 Chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*3
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4
6 x SATA 6Gb/s port(s)

Graphics

Graphics Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Networking & Connectivity

LAN Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Anti-surge LANGuard
ROG GameFirst Technology

Audio & Microphone

Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link

Ports

Slots 2 x PCIe 3.0/2.0 x16 (x16/x4) *1
4 x PCIe 3.0/2.0 x1 *2
Internal I/O Ports 1 x AAFP connector
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Thermal sensor connector

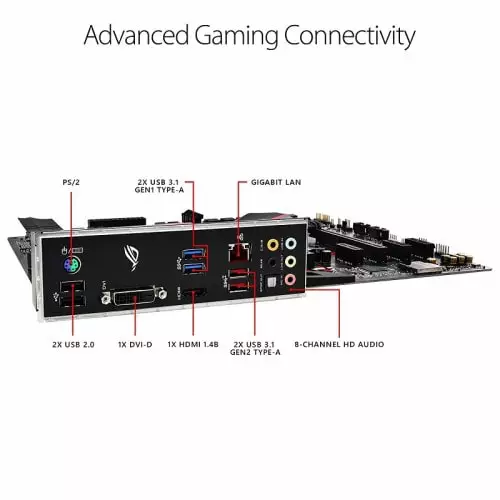

External I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (red)Type-A,
2 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
USB Intel® B360 Chipset : *6
2 x USB 3.1 Gen 2 port(s) (2 at back panel, red)
Intel® B360 Chipset :
4 x USB 3.1 Gen 1 port(s)
Intel® B360 Chipset :
6 x USB 2.0 port(s)

Physical Specification

Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty Information

Warranty 03 Years

DESCRIPTION

Asus ROG STRIX B360-H GAMING 8th Gen ATX Motherboard

Features :

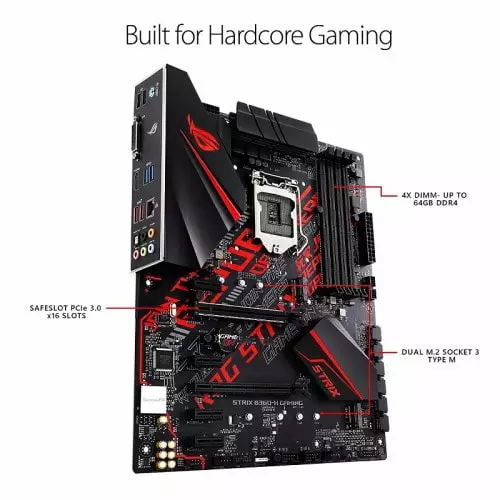

  • LGA1151 socket: Ready for 8th Gen Intel Core desktop processors.

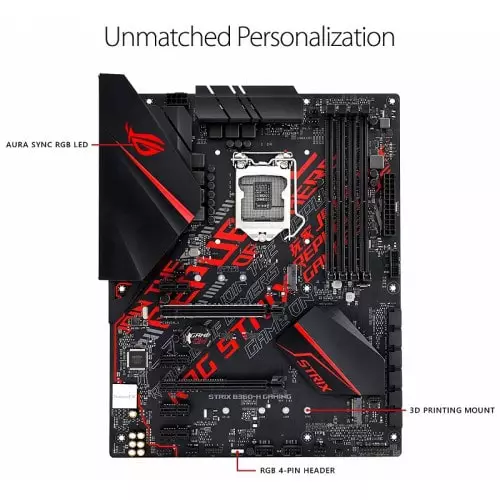

  • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including RGB strips.
  • Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance.
  • Advanced cooling: Automated system-wide tuning and cooling profiles that are tailor-made for your rig.
  • Gaming audio: SupremeFX S1220A teamed with Sonic Studio III creates immersive aural landscapes.
  • Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors.
  • Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst for smoother, safer, lag-free online play.
**03 Year Warranty.



Asus ROG STRIX B360-H GAMING 8th Gen ATX Motherboard

The Asus ROG STRIX B360-H GAMING LGA1151 ATX Motherboard from ASUS maximizes connectivity and speed with dual M.2 slots, USB 3.1 Gen 2 Type-A, and Intel Optane memory compatibility. Additionally, ASUS OptiMem improves memory stability and performnace, Gamer's Guardian hardware-level safeguards provide component longevity, FanXpert 4 allows for fan calibration and optimized cooling, and a pre-mounted I/O shield helps streamline the installation process. The Republic of Gamers Strix B360-H supports the LGA1151 socket, Intel B360 chipset, and is compatible with Windows 10 (64-bit).The ATX form factor of the Republic of Gamers Strix B360-H Gaming can support up to 64GB of RAM over four DIMM slots that can each hold 16GB of DDR4 2666, 2400, and 2133 MHz non-ECC unbuffered memory. It also supports dual-channel memory architecture and Intel Extreme Memory Profile (XMP)





REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Asus ROG STRIX B360-H GAMING 8th Gen ATX Motherboard Price in Bangladesh 2026 ?

The Asus B360-H GAMING Price in BD is 22,500৳ . This Asus ROG STRIX B360-H GAMING 8th Gen ATX Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus B360-H GAMING by 22,500৳ and its regular price is 25,400৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
