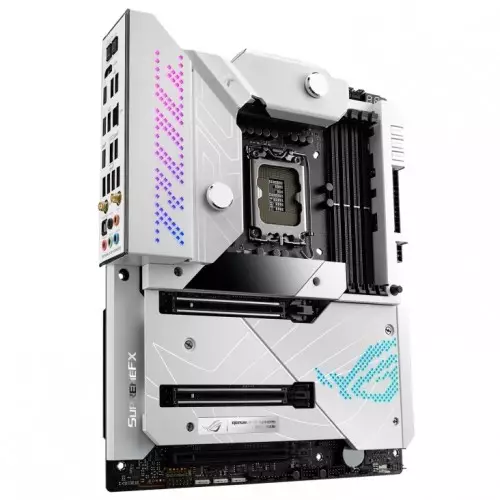

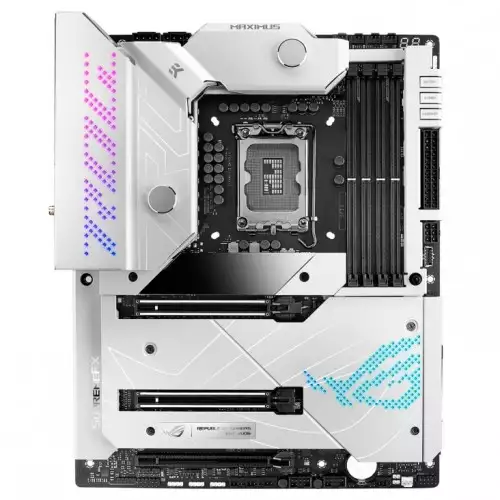

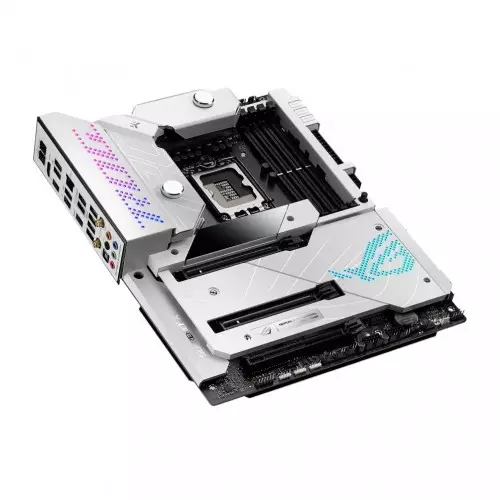

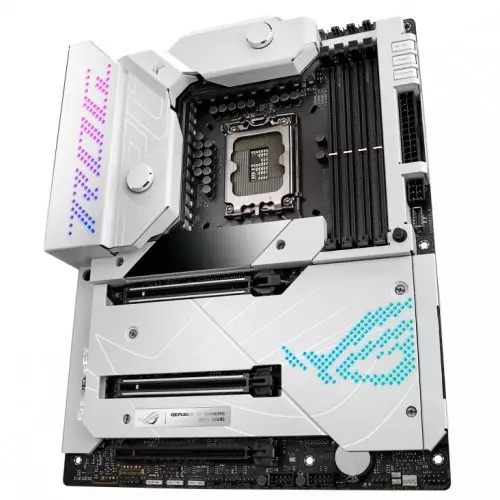

Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard - 1
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard - 2
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard - 3

Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025064245
Brand : Asus
Model : ROG MAXIMUS Z690 FORMULA
Warranty : 3 Years
  • LGA 1700 for 12th Gen Intel Core, Pentium Gold and Celeron processors
  • 20+1 teamed power stages rated for 105 A
  • Onboard WiFi 6E, Marvell AQtion 10 Gb Ethernet
  • PCIe 5.0, dual Gen 4 M.2 onboard

SPECIFICATIONS

Processor

Supported CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Mainboard

Chipset Intel Z690 Chipset
BIOS 2 x 256 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/
5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

OptiMem II

Storage

Supported Storage Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports

Graphics

Graphics 1 x HDMI® port

2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs

Networking & Connectivity

LAN 1 x Marvell 10Gb Ethernet

ASUS LANGuard
WiFi 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2

* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

Audio & Microphone

Audio 1 x Front Panel Audio header (AAFP)

Ports

Slots 4 x DIMM
Internal I/O Ports 1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

2 x 4-pin Chassis Fan headers

2 x 4-pin Radiator Fan headers

2 x W_PUMP+ headers

1 x WB_SENSOR header

1 x 2-pin Water In header

1 x 2-pin Water Out header

1 x 3-pin Water Flow header



Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

1 x 6-pin PCIe Graphics Card connector



Storage related

3 x M.2 slots (Key M)

1 x DIMM.2 slot supports 2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports



USB

1 x Intel® Thunderbolt 4 port (USB Type-C®)

1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports



Miscellaneous

1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers

1 x Addressable Gen 2 header

1 x AURA RGB header

1 x BIOS Switch button

2 x BCLK button

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x LN2 Mode jumper

1 x Osc sence header

12 x ProbeIt Measurement Points

1 x ReTry button

1 x RSVD switch

1 x RSVD header

1 x Safe Boot button

1 x Slow Mode switch

1 x Start button

1 x V_Latch switch

1 x 10-1 pin System Panel header
USB Rear USB:



Total 12 ports

2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®)

7 x USB 3.2 Gen 2 port(s) (6 x Type-A + 1 x USB Type-C®)

3 x USB 2.0 port(s) (3 x Type-A)

Front USB:


Total 9 ports

1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
HDMI 1 x HDMI port

Others

Other Features Cables

1 x ARGB RGB extension cable

1 x RGB extension cable

2 x ROG weave SATA 6G cables

4 x SATA 6Gb/s cables

ROG Hyper M.2 Card

1 x ROG Hyper M.2 Card

2 x M.2 screw package for ROG Hyper M.2 Card


Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x M.2 Rubber Package(s)

1 x Q-connector

1 x M.2 Q-Latch package(s)

2 x M.2 Q-Latch packages for M.2 backplate

1 x ROG key chain

1 x ROG stickers

1 x ROG thank you card

1 x ROG Graphic card holder


Installation Media

1 x USB drive with utilities and drivers

Documentation

1 x User guide

Physical Specification

Form Factor ATX

30.5cm x 24.4cm

Warranty Information

Warranty 3 years

DESCRIPTION

Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard


The Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard supports Socket LGA1700 for 12th Gen Intel Core, Pentium Gold & Celeron Processors. It features ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking, and Two-Way AI Noise-Cancellation for easy configuration. It has 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors. 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors. It comes with onboard Wi-Fi 6E, Marvell AQtion 10Gb, Intel 2.5Gb Ethernet, and ASUS LANGuard. It delivers the fastest Gaming Connectivity: PCIe 5.0, Gen 5 M.2 slots, USB 3.2 Gen 2x2 front-panel connector with Thunderbolt 4 support, rear triple USB Type-C ports. It also has ROG SupremeFX ALC4082 codec with ESS ES9018Q2C DAC for high-fidelity audio. The Asus ROG MAXIMUS Z690 FORMULA comes with 3 years of warranty.

Asus ROG MAXIMUS Z690 FORMULA Motherboard feature

Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation for easy configuration 

 Robust Power Solution: 20+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors 

 Optimized Thermal Design: Enlarged VRM heatsinks with EK CrossChill III solution, high-conductivity thermal pads, triple M.2 heatsinks and two M.2 backplates, and ROG Water-Cooling Zone 

 High-Performance Networking: Onboard WiFi 6E, Marvell® AQtion 10 Gb Ethernet, and ASUS LANGaurd

 Fastest Connectivity: PCIe® 5.0, dual Gen 4 M.2 onboard, ROG Hyper M.2 card with Gen 5 M.2 support, USB 3.2 Gen 2x2 front-panel connector and dual Thunderbolt™ 4 USB Type-C® ports

 Industry-Leading Audio: ROG SupremeFX ALC4082 with ESS® ES9018Q2C DAC for pinpoint positioning and dynamics

 Unmatched Personalization: 2-inch LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers 

 DIY-Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, Q-Latch, BIOS  FlashBack™, Q-Code, FlexKey, Q-Connector, SafeSlot, ROG Hyper M.2 card, and ROG graphics card holder 

 Renowned Software: Bundled 1year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86



REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard Price in Bangladesh 2026 ?

The Asus ROG MAXIMUS Z690 FORMULA Price in BD is 3,330৳ . This Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus ROG MAXIMUS Z690 FORMULA by 3,330৳ and its regular price is 33,330৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
