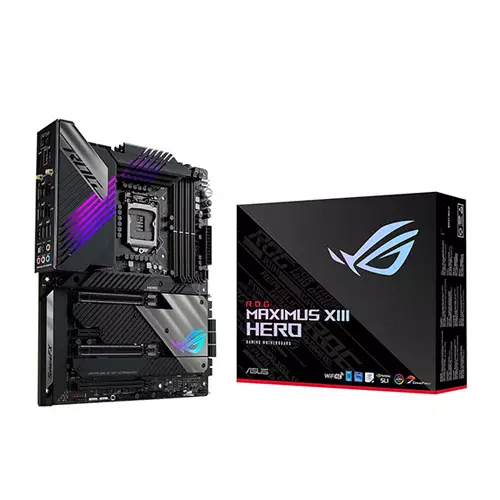

ASUS ROG Maximus XIII Hero INTEL Z590 LGA 1200 ATX MOTHERBOARD
ASUS ROG Maximus XIII Hero INTEL Z590 LGA 1200 ATX MOTHERBOARD
ASUS ROG Maximus XIII Hero INTEL Z590 LGA 1200 ATX MOTHERBOARD - 1
ASUS ROG Maximus XIII Hero INTEL Z590 LGA 1200 ATX MOTHERBOARD - 2
ASUS ROG Maximus XIII Hero INTEL Z590 LGA 1200 ATX MOTHERBOARD - 3

ASUS ROG Maximus XIII Hero INTEL Z590 LGA 1200 ATX MOTHERBOARD

0 Reviews
Stock : Discontinued
PID : P00025062535
Brand : Asus
Model : ROG Maximus XIII Hero
Warranty : 3 Years
  • Chipset: Intel Z590 Chipset
  • ATX: 30.5cm x 24.4cm
  • BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
  • Audio: Audio Chipset ROG SupremeFX etc.

SPECIFICATIONS

Processor

Supported CPU CPU Socket Type LGA 1200
CPU Type Supports 11th Gen Intel Core processors
Supports 10th Gen Intel Core
Supports Pentium Gold and Celeron Processors
Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

Mainboard

Chipset Intel Z590 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory Number of Memory Slots 4×288pin
Memory Standard DDR4 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory*

* 10th Gen Intel Core i7/i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel Core processors support 3200/ 2933/ 2800/ 2666/ 2400/ 2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported 128GB

Storage

Supported Storage SATA 6Gb/s 6 x SATA 6Gb/s ports
* Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
** To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
M.2 Intel 11th & 10th Gen Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
M.2_2 slot (Key M), type 2242/2260/2280
- Intel 11th Core processors support PCIe 4.0 x4 mode
- Intel 10th Core processors support PCIe 3.0 x4 mode
Intel Z590 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**

Graphics

Graphics Supported only by CPU with integrated graphic:
1 x HDMI 2.0**
2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs
* Graphics specifications may vary between CPU types.
** Only Intel 11th Core processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

Networking & Connectivity

LAN LAN Chipset 2 x Intel I225-V 2.5Gb Ethernet
Max LAN Speed Dual 10/100/1000/2500Mbps
Wireless LAN Intel Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a / b / g / n / ac / ax / az)
Supports 2.4/5/6 GHz frequency band*
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 10 build 21H1 or later.

Audio & Microphone

Audio Audio Chipset ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Audio Channels 7.1 Channels

Ports

Slots PCI Express 4.0 x16 Intel 11th & 10th Gen Processors
2 x PCIe 4.0/3.0 x16 slot(s)*
- Intel 11th Core processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s)
- Intel 10th Core processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s)
* Supports PCIe bandwidth bifurcation for RAID on CPU function.
PCI Express 3.0 x16 Intel Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)**
** PCIEX16_3 shares bandwidth with SATA6G_12 and SATA6G_34. When PCIEX16_ 3 is populated SATA6G_12 and SATA6G_34 will be disbabled.
** When PCIEX16_3 run at default (x2) mode, SATA6G_34 is disabled.
** When PCIEX16_3 run at x4 mode, SATA6G_12 and SATA6G_34 are disabled.
PCI Express x1 1 x PCIe 3.0 x1 slots
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
3 x 4-pin Chassis Fan header(s)
1 x 4-pin H_AMP Fan header(s)
1 x W_PUMP+ header(s)
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Miscellaneous
3 x AURA Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x ReTry button
1 x Speaker header
1 x SPI TPM header (14-1-pin)
1 x Start button
1 x 10-1-pin System Panel header
1 x Thermal Sensor header
External I/O Ports 2 x Thunderbolt 4 USB Type-C port(s)
6 x USB 3.2 Gen 2 port(s) (6 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI port
1 x ASUS Wi-Fi Module
2 x Intel I225-V 2.5Gb Ethernet
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
USB 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C)
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Physical Specification

Form Factor ATX
30.5cm x 24.4cm

Warranty Information

Warranty 03 Years

DESCRIPTION

ASUS ROG Maximus XIII Hero Motherboard

ROG Maximus XIII Hero motherboard continues to build on the legacy of its predecessors by packing upgraded power, innovative cooling and lightspeed connectivity under a stealthy exterior. Bristling with renowned ROG features such as AI-enhanced controls and customizable Aura Sync illumination, the latest Hero is ready to take the helm of your high-end gaming build.

Intel LGA 1200 socket: Designed to unleash the maximum performance of 11th Gen Intel Core processors

AI Motherboard: AI overclocking, AI cooling, AI networking and AI noise cancellation

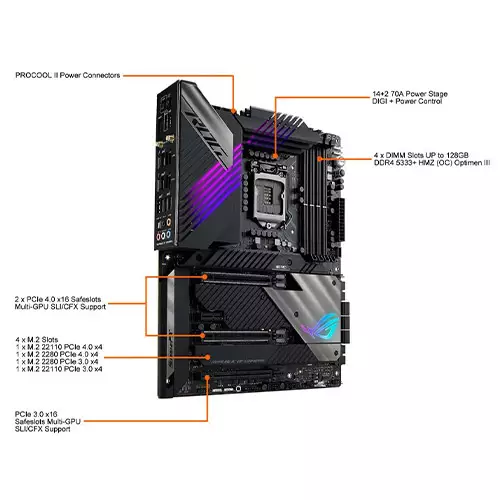

Robust Power Solution: 14+2 teamed power stages rated for 90 Amps, ProCool II power connectors, MicroFine alloy chokes and 10K Japanese-made black metallic capacitors

Optimised Thermal Design: Enlarged VRM heatsinks plus integrated aluminium I/O cover, high-conductivity thermal pad, quad M.2 heatsinks with embedded backplates and ROG Water-Cooling Zone

High-Performance Networking: Onboard WiFi 6E (802.11ax), dual Intel 2.5Gb Ethernet and ASUS LANGaurd

Fastest Gaming Connectivity: PCIe 4.0, quad M.2, USB 3.2 Gen 2x2 front-panel connector, dual USB Type-C ports with Thunderbolt 4 USB-C

Industry-leading Gaming Audio & AI Noise Cancellation: ROG SupremeFX ALC4082 with ESS ES9018Q2C DAC for high-fidelity audio
