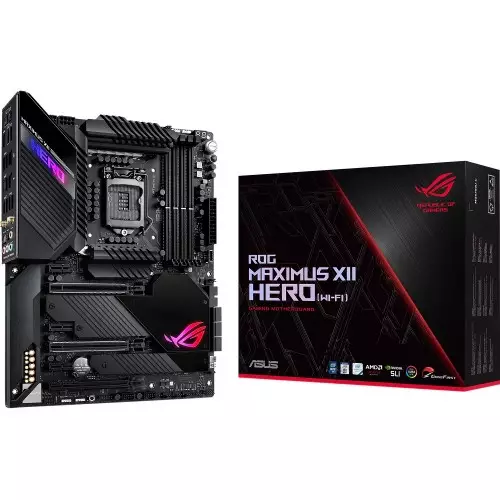

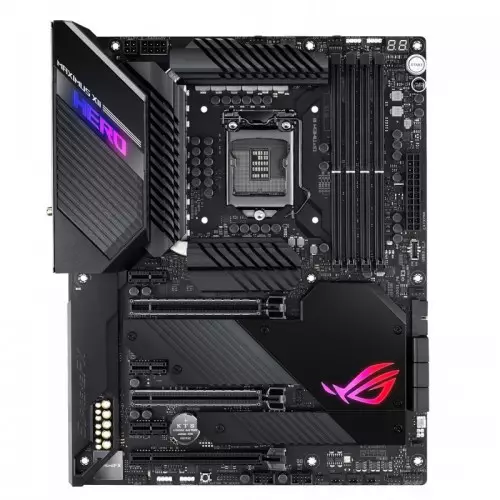

Asus ROG Maximus XII Hero WI-FI Z490 Intel 10th Gen Motherboard
Asus ROG Maximus XII Hero WI-FI Z490 Intel 10th Gen Motherboard
Asus ROG Maximus XII Hero WI-FI Z490 Intel 10th Gen Motherboard - 1

Asus ROG Maximus XII Hero WI-FI Z490 Intel 10th Gen Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061898
Brand : Asus
Model : ROG Maximus XII Hero WI-FI Z490
Warranty : 3 Years
  • Chipset: Intel Z490
  • Supported CPU: 10th Gen Intel
  • LAN: Intel I219-V 1Gb Ethernet
  • Audio: ROG SupremeFX 7.1

SPECIFICATIONS

Processor

Supported CPU Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Mainboard

Chipset Intel Z490
BIOS 256 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory Type : Dual Channel Memory Architecture
Slots : 4 x DDR4 DIMM
Supported Memory 4800(O.C.)/ 4700(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
OptiMem III
Maximum Mamory : 128 GB

Storage

Supported Storage Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel Z490 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2_3 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10
Intel Optane Memory Ready

Graphics

Graphics Integrated Graphics Processor
1 x HDMI 1.4b
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX™ Technology
Supports AMD 2-Way CrossFireX Technology

Networking & Connectivity

LAN Intel I219-V 1Gb Ethernet
Marvell AQtion AQC111C 5Gb Ethernet
ASUS LANGuard

Audio & Microphone

Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220
- Impedance sense for front and rear headphone outputs
- Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- ESS™ ES9023 DAC + RC4580 OP AMP
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- SupremeFX Shielding Technology
- Gold-plated jacks
- Optical S/PDIF out port(s) at back panel
- Premium Japanese audio capacitors
- Audio Cover

Ports

Slots Intel 10th Gen Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
Intel Z490 Chipset
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
M.2 Socket Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel Z490 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2_3 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Internal I/O Ports 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x AAFP connector
2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1 front panel TypeC connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
3 x M.2 Socket 3
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Thermal sensor connector(s)
1 x ReTry button
1 x System panel connector
1 x Speaker connector
1 x Start button
1 x FlexKey button
External I/O Ports 1 x Marvell® AQtion AQC111C 5Gb Ethernet
1 x Intel® I219-V 1Gb Ethernet
1 x HDMI
4 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS FlashBack™ Button(s)
1 x ASUS Wi-Fi Module
5 x Gold-plated audio jacks
USB Rear USB Port ( Total 10 )
4 x USB 3.2 Gen 2 port(s)(3 + Type-A +1 + USB Type-C)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 7 )
1 x USB 3.2 Gen 2 front panel connector port(s)
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)

Physical Specification

Form Factor ATX Form Factor: 12 inch x 9.5 inch ( 30.5 cm x 24.4 cm )

Warranty Information

Warranty 03 Years

DESCRIPTION

Asus ROG Maximus XII Hero WI-FI Z490 Motherboard

Overview
  • LGA 1200 socket for 10th-gen Intel® Core™ desktop processors
  • Optimization: Automated system-wide tuning, providing AI Overclocking and AI Cooling profiles tailor-made for your rig
  • Cooling: dedicated water cooling zones, dual M.2 heatsink, and various fan controls
  • Connectivity: Dual Ethernet with 5Gb and gigabit Ethernet, LANGaurd, dual M.2, USB 3.2 Gen 2, and Intel® Wi-Fi 6
  • Synchronized RGB lighting technology works with a vast portfolio of Aura Sync-capable PC gear and includes support for addressable light strips and Philips Hue
**03 Year Warranty.

Asus ROG Maximus XII Hero WI-FI Z490 Motherboard

ROG Maximus XII Hero is the perfect foundation for the Republic of Gamers. It's a motherboard that packs substantial power, smart cooling, and faster memory support under a stealthy skin. Loaded with renowned ROG features, from AI overclocking and AI cooling to attention-grabbing Aura Sync illumination, Maximus XII Hero is ready to perform and crafted for customization. The Intel Comet Lake processor features 10 cores and a peak single-core Turbo speed that exceeds 5.3 GHz right out of the box. To cope with this increased demand on the system, Maximus XII Hero takes advantage of its intelligent VRM design and uses quality components to ensure the best gaming and daily productive computing experience. Maintaining system stability is paramount under high load, so Maximus XII Hero employs large VRM and chipset heatsinks that strike the right balance between surface area and mass. The extra-large armor heatsinks also cover multiple M.2 slots. Featuring premium components and multiple fan headers, Maximus XII Hero is fully armed to provide the best foundation for gaming systems – enabling higher performance at lower temperatures. Maximus XII Hero is packed with intuitive and flexible tools to allow customization across all system parameters to deliver the performance you want. ROG Maximus XII Hero features the most comprehensive cooling options ever. Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling


[product_table id="34" limit="10" type="filter" filter_category="6082"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Asus ROG Maximus XII Hero WI-FI Z490 Intel 10th Gen Motherboard Price in Bangladesh 2026 ?

The Asus ROG Maximus XII Hero WI-FI Z490 Price in BD is 40,200৳ . This Asus ROG Maximus XII Hero WI-FI Z490 Intel 10th Gen Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus ROG Maximus XII Hero WI-FI Z490 by 40,200৳ and its regular price is 45,000৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
