Asus ProArt Z490-CREATOR 10G Intel 10th Gen Motherboard
Asus ProArt Z490-CREATOR 10G Intel 10th Gen Motherboard
Asus ProArt Z490-CREATOR 10G Intel 10th Gen Motherboard - 1
Asus ProArt Z490-CREATOR 10G Intel 10th Gen Motherboard - 2
Asus ProArt Z490-CREATOR 10G Intel 10th Gen Motherboard - 3
Asus ProArt Z490-CREATOR 10G Intel 10th Gen Motherboard - 4

Asus ProArt Z490-CREATOR 10G Intel 10th Gen Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061880
Brand : Asus
Model : ProArt Z490-CREATOR 10G
Warranty : 3 Years
  • LGA 1200 socket for 10th-gen processors
  • ProArt Creator Hub
  • Powerful performance
  • Intelligent optimization

SPECIFICATIONS

Processor

Supported CPU Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors *
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Mainboard

Chipset Intel Z490
BIOS 128 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

Storage

Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Z490 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCI-E 3.0 x 4 mode)*3
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
Intel Optane Memory Ready

Graphics

Multi-GPU Supports AMD 3-Way CrossFireX Technology
Graphics Integrated Graphics Processor
1 x DisplayPort 1.4
1 x HDMI 1.4b

Networking & Connectivity

LAN Intel I225-V 2.5Gb Ethernet

Audio & Microphone

Audio Realtek ALC S1220A 8-Channel High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback
High quality 120 dB SNR stereo playback output and SNR recording input
Audio Feature :
Optical S/PDIF out port(s) at back panel
Audio Shielding
Dedicated audio PCB layers
Premium Japanese audio capacitors
Audio Cover
Unique de-pop circuit

Ports

Slots Intel 10th Gen Processors
2 x PCIe 3.0 x16 (x16 or dual x8) *1
Intel Z490 Chipset
1 x PCIe 3.0 x16 (x4 mode) *2
2 x PCIe 3.0 x1
Internal I/O Ports 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x COM port header

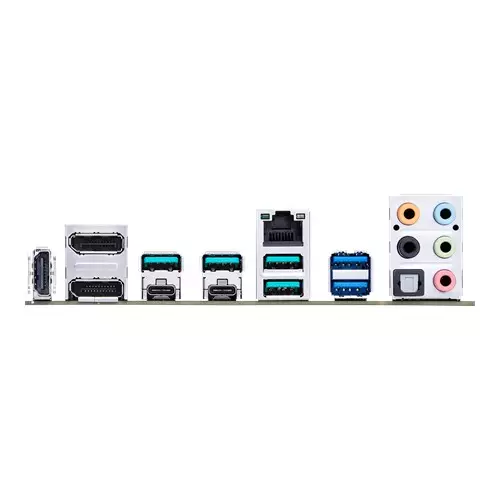

External I/O Ports 2 x Thunderbolt 3 ports TypeC
2 x DisplayPort IN ports for Thunderbolt 3
1 x HDMI
1 x LAN (2.5G) port(s)
4 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
1 x Optical S/PDIF out
5 x Audio jack(s)
USB Intel Thunderbolt 3 Controller :
2 x USB 3.2 Gen 2 port(s) (USB Type-C)
Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 2 port(s)(4 x Type-A)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
Front USB Port ( Total 7 )
1 x USB 3.1 Gen 1 port(s)(1 x USB Type-C)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)
HDMI 1 x HDMI 1.4b

Others

Other Features 2 x Intel Thunderbolt 3 ports(TypeC) support DisplayPort and Thunderbolt video outputs
Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz*
* VGA resolution support depends on VGA cards´ resolution.
Data transfer rate up to 40 Gbps
Daisy-chain up to 12 Thunderbolt devices
Up to 5V/3A, 15W charging support

Physical Specification

Form Factor ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )

Warranty Information

Warranty 03 Years

DESCRIPTION

Features:

  • Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors
  • Ultrafast connectivity: Two Thunderbolt 3 Type-C ports, two M.2, HYPER 10G LAN card and onboard 2.5G Intel LAN provide power and speed
  • Intelligent optimization: AI Overclocking, AI Cooling, and CreationFirst automatically optimize CPU frequencies, fan speeds, and network traffic for enhanced system performance and work efficiency
  • Powerful performance: 12+2 DrMOS power stages, Asus ProArt Z490-CREATOR 10G multi-GPU support, and improved memory frequency and stability empower creativity
  • Trusted stability: Tested for 24/7 dependability, validated for solid compatibility, and equipped with SafeSlot for durability
  • ProArt Creator Hub: Centralized software for one-stop monitoring and management of Asus ProArt Z490-CREATOR 10G s enables efficient content creation workflows

Asus ProArt Z490-CREATOR 10G  Motherboard in Bangladesh

Introducing the all-new ASUS ProArt Z490-CREATOR 10G, this is often an impressive motherboard offering simple and versatile tools that enhance almost every aspect of your content-creation system, supplying you with the fast, intuitive control needed for an efficient workflow. Asus ProArt Z490-CREATOR 10G Motherboard features dynamic automated tuning with AI overclocking and AI cooling, additionally to the all-new CreationFirst software, which prioritizes and optimizes your network traffic for faster, lag-free online work. Every aspect of the Asus ProArt Z490-CREATOR 10G Motherboards is made to get rid of barriers and deliver optimal performance to content creators who add 3D modeling and rendering, animation, or media production. The series empowers you to consider your creativity and expand what's possible.

3X PCIE 3.0 X16 SLOTS

ASUS ProArt Z490-CREATOR 10G features three PCIe 3.0 x16 slots for high-powered graphics cards like NVIDIA® Quadro®, enabling enhanced performance in professional design, modeling, and simulation, and rendering applications.

ULTRAFAST CONNECTIVITY FOR SEAMLESS SPEED

Each Thunderbolt 3 port supports DisplayPort 1.4 output and may daisy-chain to up to 6 devices, with 15 watts of power to fast-charge devices. ProArt Z490-CREATOR 10G features two Thunderbolt 3 ports, offering a complete of up to 40 Gbps of aggregate interface bandwidth, which allows numerous devices to be connected to the motherboard directly with ultrafast data transfer speeds.

HYPER 10G LAN CARD

A HYPER 10G LAN card enables speeds that are up to 10 times faster than standard Gigabit Ethernet so it’s ideal for content creators who frequently work with large files. Upload 4K video or transfer other large files quickly and with ease. The HYPER 10G LAN cards are often installed for extra connectivity options on Asus ProArt Z490-CREATOR 10G Motherboard. Installation is straightforward and easily requires inserting the cardboard into a PCIe 3.0 slot and connecting your existing copper network cables to the RJ45 Ethernet port. No software installation or setup is important.


[product_table id="34" limit="10" type="filter" filter_category="6082"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Asus ProArt Z490-CREATOR 10G Intel 10th Gen Motherboard Price in Bangladesh 2026 ?

The Asus ProArt Z490-CREATOR 10G Price in BD is 33,000৳ . This Asus ProArt Z490-CREATOR 10G Intel 10th Gen Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus ProArt Z490-CREATOR 10G by 33,000৳ and its regular price is 34,700৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
