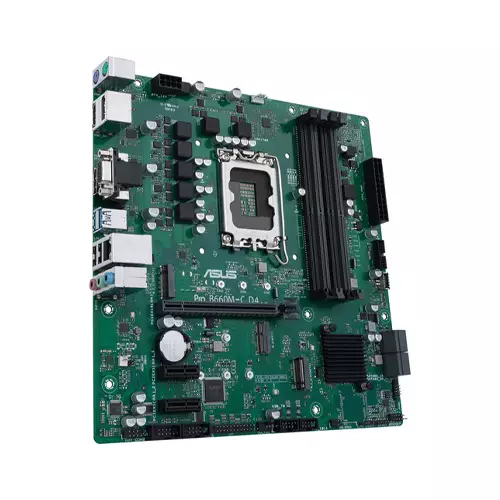

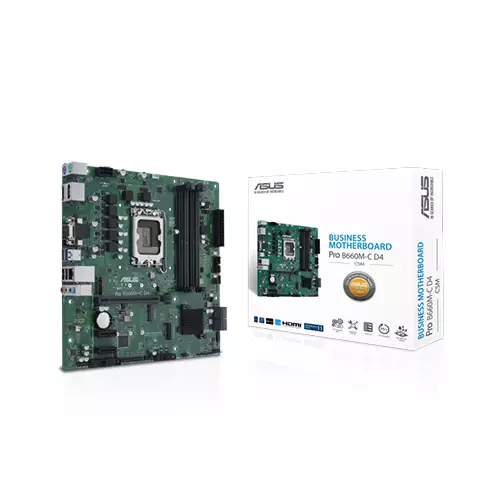

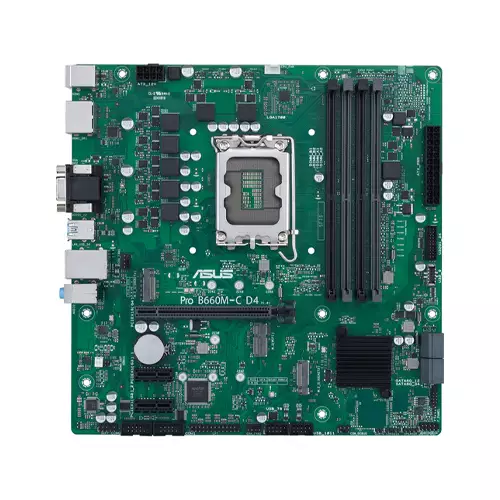

ASUS PRO B660M-C D4-CSM MICRO-ATX 13TH GEN INTEL MOTHERBOARD
ASUS PRO B660M-C D4-CSM MICRO-ATX 13TH GEN INTEL MOTHERBOARD
ASUS PRO B660M-C D4-CSM MICRO-ATX 13TH GEN INTEL MOTHERBOARD - 1
ASUS PRO B660M-C D4-CSM MICRO-ATX 13TH GEN INTEL MOTHERBOARD - 2
ASUS PRO B660M-C D4-CSM MICRO-ATX 13TH GEN INTEL MOTHERBOARD - 3

ASUS PRO B660M-C D4-CSM MICRO-ATX 13TH GEN INTEL MOTHERBOARD

1 Reviews
Stock : In Stock
PID : P0122506389
Brand : Asus
Model : Pro B660M-C D4-CSM
Warranty : 3 Years
  • Micro-ATX Form Factor
  • Intel B660 Chipset
  • LGA 1700 Socket
  • 4 x Dual-Channel DDR4

Product Pricing

Discount Price

৳16,200 ৳19,500
+ Available Payment Method

EMI Start From*

৳570

SPECIFICATIONS

Processor

Supported CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™
Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Mainboard

Chipset Intel B660 Chipset
BIOS 128Mb Flash ROM

Memory

Memory 4 x DIMM, Max. 128GB, DDR4
4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)
/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

Optimem

Storage

Supported Storage Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Intel® 12th Gen processors support PCIe 4.0 x4 mode

Intel® B660 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)

4 x SATA 6Gb/s ports

Graphics

Graphics 2 x DisplayPort**

1 x D-Sub port

1 x HDMI® port***

Networking & Connectivity

LAN 1 x Intel® 1Gb Ethernet

ASUS LANGuard
WiFi M.2 slot only (Key E, CNVi & PCIe)*
Bluetooth M.2 slot only (Key E, CNVi & PCIe)*

Audio & Microphone

Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback "

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ports

Slots Intel® 13th & 12th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

Intel® B660 Chipset

2 x PCIe 3.0 x1 slots
Internal I/O Ports Fan and cooling related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers
Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Chassis Intrude header

2 x COM Port headers

1 x Front Panel Audio header (AAFP)

1 x COM debug header
1 x LPT header

1 x Mono-out header(with Amp IC)

1 x M.2 slot (Key E)

1 x SMBUS header

1 x Speaker header

1 x 10-1 pin System Panel header

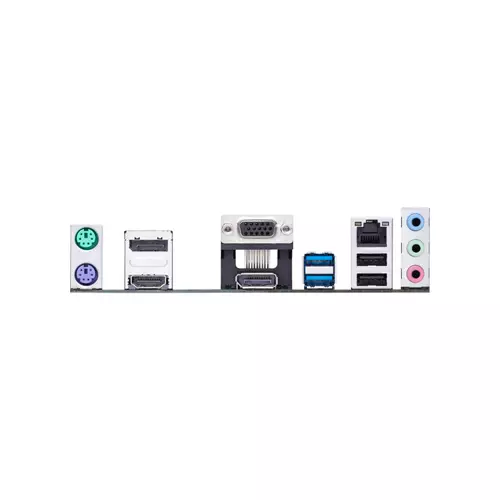

External I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

2 x DisplayPort

1 x HDMI® port

1 x D-Sub port

1 x Intel® 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 keyboard (purple) port

1 x PS/2 mouse (green) port
USB Rear USB (Total 4 ports)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Physical Specification

Form Factor microATX
Dimension 24.4cm x 24.4cm

Warranty Information

Warranty 3 years

DESCRIPTION

ASUS Pro B660M-C D4-CSM Motherboard in Bangladesh

Enhance your business with a 12th generation Intel computer system using the Pro B660M-C D4-CSM Micro-ATX Motherboard from ASUS. Powered by the Intel B660 chipset, this motherboard supports twelfth-generation Intel processors with the LGA 1700 socket. Designed to deliver enterprise-class performance in a compact form factor, this micro-ATX motherboard takes advantage of the PCIe 4.0's data bandwidth to deliver high performance for demanding tasks such as 3D rendering, video editing, and more. Up to 128GB of dual-channel DDR4 memory, reaching 5000 MHz when overclocked, can be installed across the four memory slots. The Pro B660M-C supports up to two M.2 SSDs and four SATA III storage drives, which can be put into RAID 0, 1, or 10 configurations for your enterprise storage needs. The PCIe 4.0 x16 slot can accommodate a high-end graphics card while the two PCIe 3.0 x1 slots are available for compatible expansion cards. Take advantage of the 12th generation Intel integrated graphics by connecting up to three monitors to the motherboard's HDMI, DisplayPort, and D-Sub ports.

Connect peripherals such as keyboards and mice to the rear panel's USB 2.0 ports while using the USB 3.2 Gen 2 Type-A ports for transferring data from compatible devices up to 10 Gb/s. Additionally, users can take advantage of the USB 3.2 Gen 1 Type-C port for 10 Gb/s data transfer speeds on compatible devices. Windows 10 or Windows 11 64-bit is required to take advantage of this motherboard's features.
