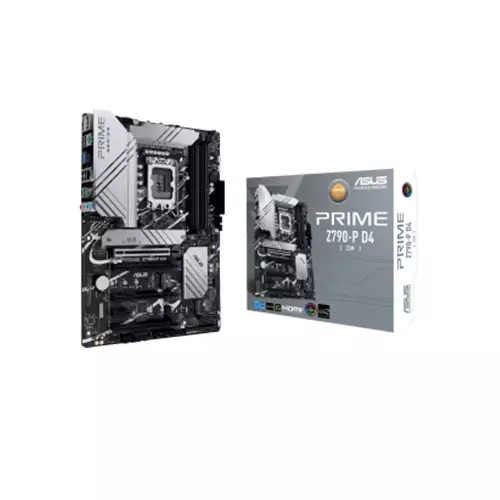

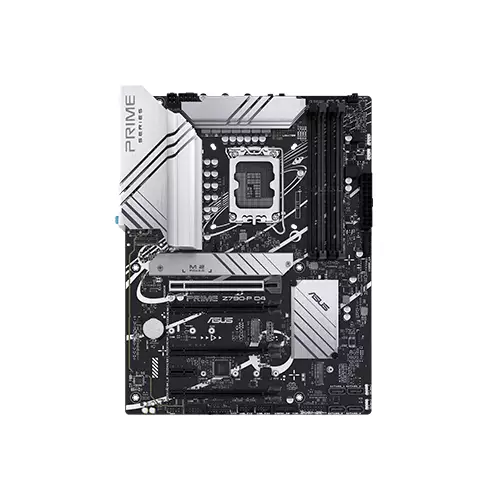

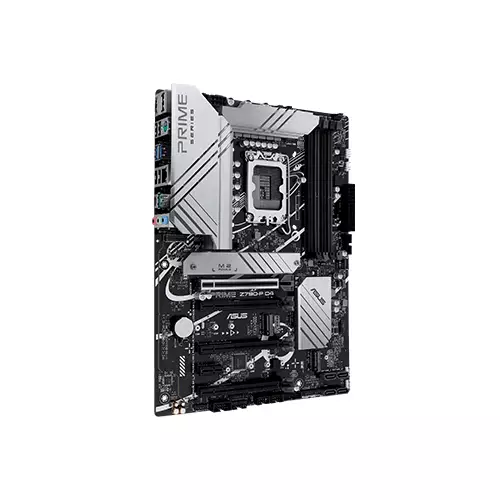

ASUS PRIME Z790-P D4-CSM 12TH AND 13TH GEN ATX MOTHERBOARD

ASUS PRIME Z790-P D4-CSM 12TH AND 13TH GEN ATX MOTHERBOARD
ASUS PRIME Z790-P D4-CSM 12TH AND 13TH GEN ATX MOTHERBOARD
ASUS PRIME Z790-P D4-CSM 12TH AND 13TH GEN ATX MOTHERBOARD
ASUS PRIME Z790-P D4-CSM 12TH AND 13TH GEN ATX MOTHERBOARD
ASUS PRIME Z790-P D4-CSM 12TH AND 13TH GEN ATX MOTHERBOARD
ASUS PRIME Z790-P D4-CSM 12TH AND 13TH GEN ATX MOTHERBOARD
ASUS PRIME Z790-P D4-CSM 12TH AND 13TH GEN ATX MOTHERBOARD
ASUS PRIME Z790-P D4-CSM 12TH AND 13TH GEN ATX MOTHERBOARD
ASUS PRIME Z790-P D4-CSM 12TH AND 13TH GEN ATX MOTHERBOARD
product price30,300৳
Stock Status
In Stock
Product ID
30306
Brand
Asus
Product modelPRIME Z790-P D4-CSM
Warranty 3 Years
Total Reviews
 Based on 0 reviews. - Write a review
Based on 0 reviews. - Write a review
30,300৳

Cash Discount Price

Check available payment method
Contact for bulk quantity: 09613828201
31,876৳

EMI Price*

Starting from 10,625৳/month. For Discount Price
Click here to view 27 banks EMI Plans
Add to Cart
Buy Now Add to PC Builder
Add to Wish List Compare this Product
Short Description
  • Chipset: Intel® Z790 Chipset
  • Memory: 4 x DIMM, Max. 128GB
  • Graphics: 1 x DisplayPort
  • BIOS:192 (128+64) Mb Flash ROM

    • View details

    • Stock availability is subject to change. Please confirm availability before shopping by calling us.
    • The product image is for illustration purposes only. The actual product may vary in size, color, and layout. No claim will be accepted for an image mismatch.
    • Tech Land BD can change the price of any product at any moment due to the volatile price of the technology.
    • We cannot guarantee that the information on this page is 100% correct. Tech Land BD is not responsible for the results obtained from the use of this information.

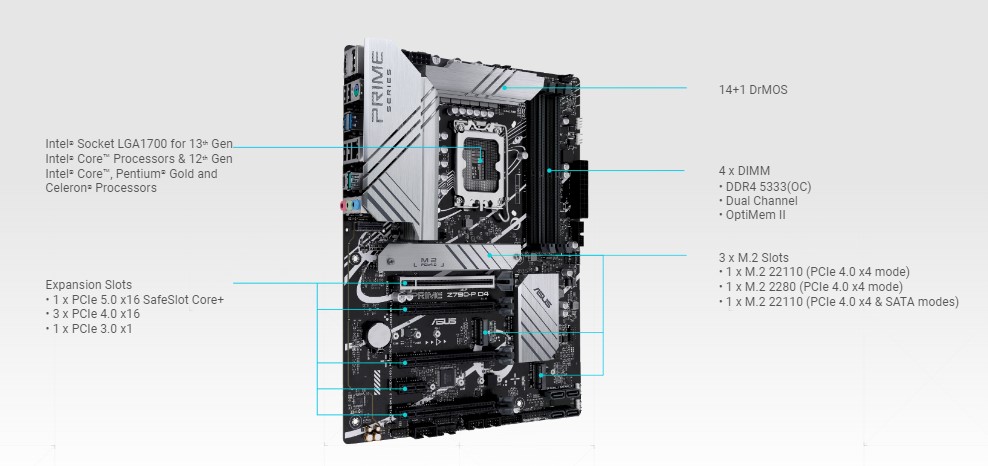

    Processor
    Supported CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    Mainboard
    Chipset Intel® Z790 Chipset
    Memory
    Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/
    4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/
    3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    Storage
    Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
    Intel® 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    Intel® Z790 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
    4 x SATA 6Gb/s ports
    * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
    Graphics
    Graphics 1 x DisplayPort**
    1 x HDMI® port***
    *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI 2.1.
    Audio & Microphone
    Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
    Networking & Connectivity
    LAN 1 x Realtek 2.5Gb Ethernet
    WiFi Vertical M.2 slot only (Key E, CNVi & PCIe)*
    *Wi-Fi module is sold separately.
    Bluetooth Vertical M.2 slot only (Key E, CNVi & PCIe)*
    *Wi-Fi module is sold separately.
    Ports
    Slots Intel® 13th & 12th Gen Processors*
    1 x PCIe 5.0 x16 slot
    Intel® Z790 Chipset
    3 x PCIe 4.0 x16 slots (support x4 mode)
    1 x PCIe 3.0 x1 slot
    * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
    - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
    Internal I/O Ports Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    3 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Storage related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
    2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x S/PDIF Out header
    1 x SPI TPM header (14-1pin)
    1 x 20-5pin System Panel header
    1 x Thunderbolt™ (USB4®) Header

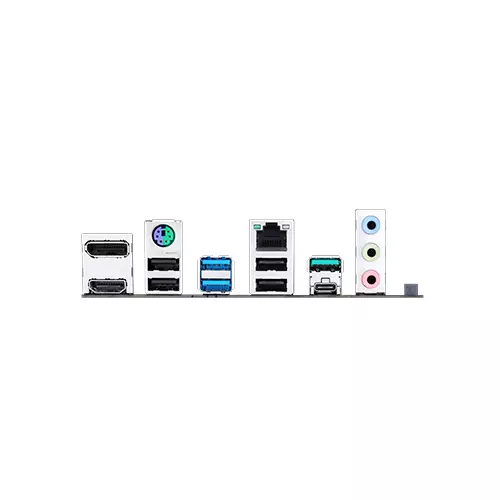

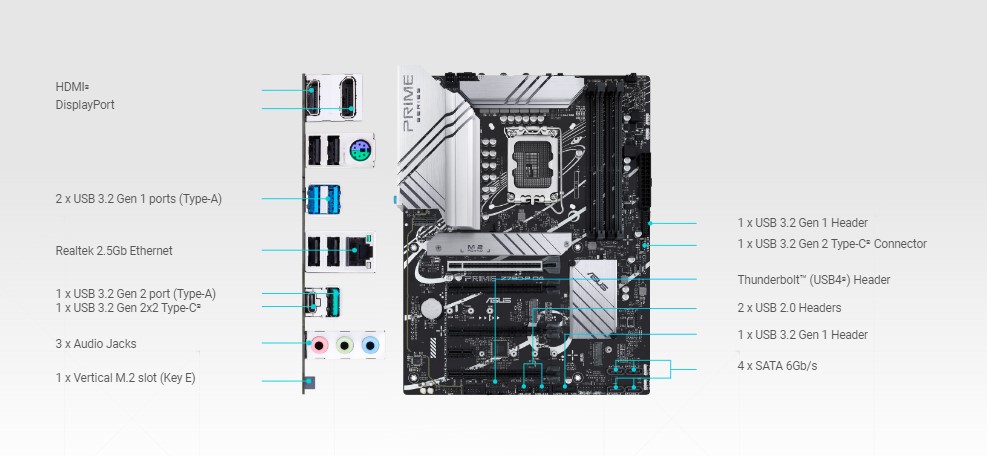

    External I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
    1 x USB 3.2 Gen 2 port (1 x Type-A)
    2 x USB 3.2 Gen 1 ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    1 x HDMI® port
    1 x Vertical M.2 slot (Key E)
    1 x Realtek 2.5Gb Ethernet port
    3 x Audio jacks
    1 x PS/2 Keyboard/Mouse combo port
    USB Rear USB (Total 8 ports)
    1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
    1 x USB 3.2 Gen 2 port (1 x Type-A)
    2 x USB 3.2 Gen 1 ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 9 ports)
    1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
    2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
    * USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
    HDMI 1 x HDMI® port
    Technical Info
    BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
    Special Features
    Special Features ASUS 5X PROTECTION III
    - DIGI+ VRM (- Digital power design with DrMOS)
    - LANGuard
    - Overvoltage Protection
    - SafeSlot Core+
    - Stainless-Steel Back I/O
    ASUS Q-Design
    - Q-DIMM
    - Q-Slot
    - Q-LED Core
    ASUS Thermal Solution
    - Flexible M.2 heatsink
    - VRM heatsink design
    ASUS EZ DIY
    - ProCool
    Aura Sync
    - Aura RGB header
    - Addressable Gen 2 headers
    Software Features ASUS Exclusive Software
    Armoury Crate
    - Aura Sync
    - Fan Xpert 4 (with AI Cooling II)
    - Power Saving
    AI Suite 3
    -TurboV EVO
    -PC Cleaner
    -DIGI+ VRM
    ASUS CPU-Z
    Norton 360 Deluxe (60 Days Free Trial)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    Physical Specification
    Form Factor ATX Form Factor
    Dimension 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
    Others
    Other Features Manageability
    WOL by PME, PXE

    Accessories:

    Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x I/O Shield
    1 x M.2 Rubber Package
    2 x Screw packages for M.2 SSD
    Documentation
    1 x ACC Express Activation Key Card
    1 x User guide
    Operating System: Windows® 11, Windows® 10 64-bit
    Warranty Information
    Warranty 3 Years Warranty

    ASUS PRIME Z790-P D4-CSM 12TH AND 13TH GEN ATX MOTHERBOARD

    The ASUS PRIME Z790-P D4-CSM is an ATX form factor motherboard designed to support the 12th and 13th generation Intel Core processors, Pentium Gold, and Celeron processors. It has an Intel Z790 chipset and supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. The motherboard has four DIMM slots with a maximum capacity of 128GB of DDR4 memory at speeds up to 5333MHz (OC). It also features OptiMem II technology and supports Intel Extreme Memory Profile (XMP). Graphics capabilities include one DisplayPort and one HDMI port, which can support up to 4K@60Hz resolution. Additionally, it has three PCIe 4.0 x16 slots, one PCIe 5.0 x16 slot (supported by 13th & 12th Gen Processors), and one PCIe 3.0 x1 slot. Storage options include three M.2 slots and four SATA 6Gb/s ports. The motherboard also features Realtek 2.5Gb Ethernet, vertical M.2 slot only (Key E, CNVi & PCIe) for wireless and Bluetooth (Wi-Fi module sold separately), and multiple USB ports including one USB 3.2 Gen 2x2 port (1x Type-C), one USB 3.2 Gen 2 port (1x Type-A), two USB 3.2 Gen 1 ports (2x Type-A), and four USB 2.0 ports (4x Type-A). Audio capabilities include Realtek 7.1 Surround Sound High Definition Audio CODEC with dedicated audio PCB layers, premium audio capacitors, and audio shielding. ASUS PRIME Z790-P D4-CSM has ASUS 5X Protection III for security features such as DIGI+ VRM (- Digital power design with DrMOS), LANGuard, Overvoltage Protection, SafeSlot Core+, and Stainless-Steel Back I/O. The motherboard also features ASUS Q-Design such as Q-DIMM, Q-Slot, and Q-LED Core for easy installation and troubleshooting. ASUS Thermal Solution includes a flexible M.2 heatsink and VRM heatsink design. Additionally, it has ASUS EZ DIY features like ProCool and Aura Sync. The motherboard comes with several software features such as Armoury Crate, AI Suite 3, TurboV EVO, PC Cleaner, DIGI+ VRM, ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR, and UEFI BIOS EZ Mode.

    The board has BIOS with 192 (128+64) Mb Flash ROM and UEFI AMI BIOS. It also has various internal I/O connectors including fan and cooling related headers, power-related headers, storage-related headers, and other miscellaneous headers. Accessories included with the motherboard are two SATA 6Gb/s cables, one I/O shield, one M.2 rubber package, two screw packages for M.2 SSD, one ACC Express Activation Key Card, and one user guide. The motherboard supports Windows 11 and Windows 10 64-bit operating systems. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Asus Motherboard available at Techland BD is well recognized. The large selection of Asus Motherboard available at Techland BD is well recognized.


    Review

    Get specific details about this product from customers who own it.

    What is the ASUS PRIME Z790-P D4-CSM 12TH AND 13TH GEN ATX MOTHERBOARD Price in Bangladesh 2024?

    The Asus PRIME Z790-P D4-CSM Price in BD is 30,300৳ in Today's 2024-04-28 Market. This ASUS PRIME Z790-P D4-CSM 12TH AND 13TH GEN ATX MOTHERBOARD Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus PRIME Z790-P D4-CSM by 30,300৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
    Tags: ASUS PRIME , Z790-P , D4-CSM , 12th Gen , 13th Gen , ATX Motherboard , Intel Processor , DDR4 RAM , PCIe 4.0 support , M.2 NVMe SSD support
