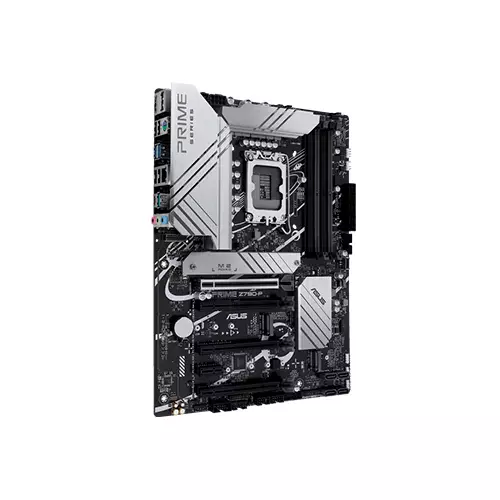

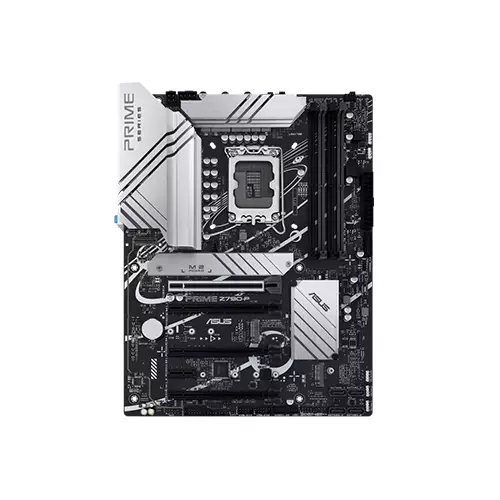

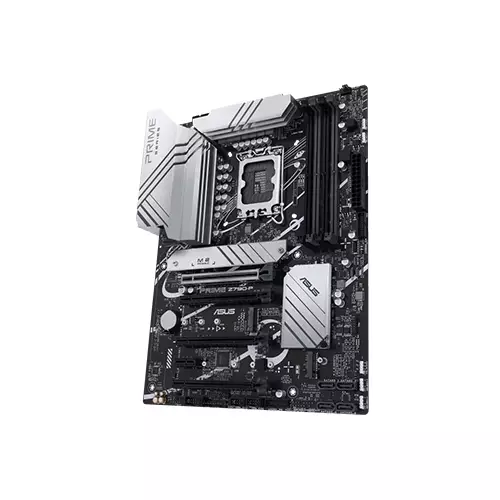

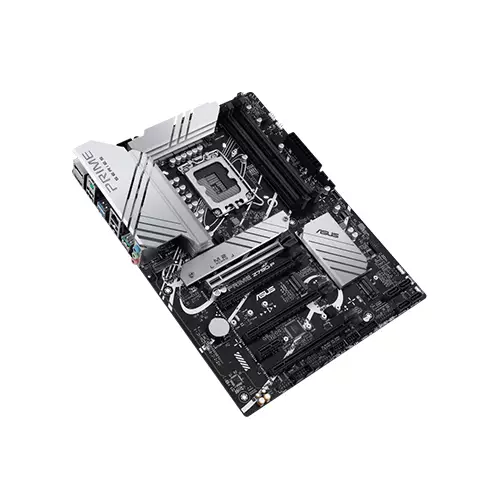

ASUS PRIME Z790-P-CSM 12TH/13TH GEN ATX MOTHERBOARD
- Supported CPU: 13th/12th Gen Processors (LGA1700)
- Supported RAM: 4 x DIMM, Max. 128GB, DDR5 7200+(OC)
- Graphics Output: 1 x DisplayPort, 1 x HDMI
- Features: Realtek 2.5Gb Ethernet
Product Pricing
EMI Start From*
ASUS PRIME Z790-P-CSM 12TH/13TH GEN ATX MOTHERBOARD

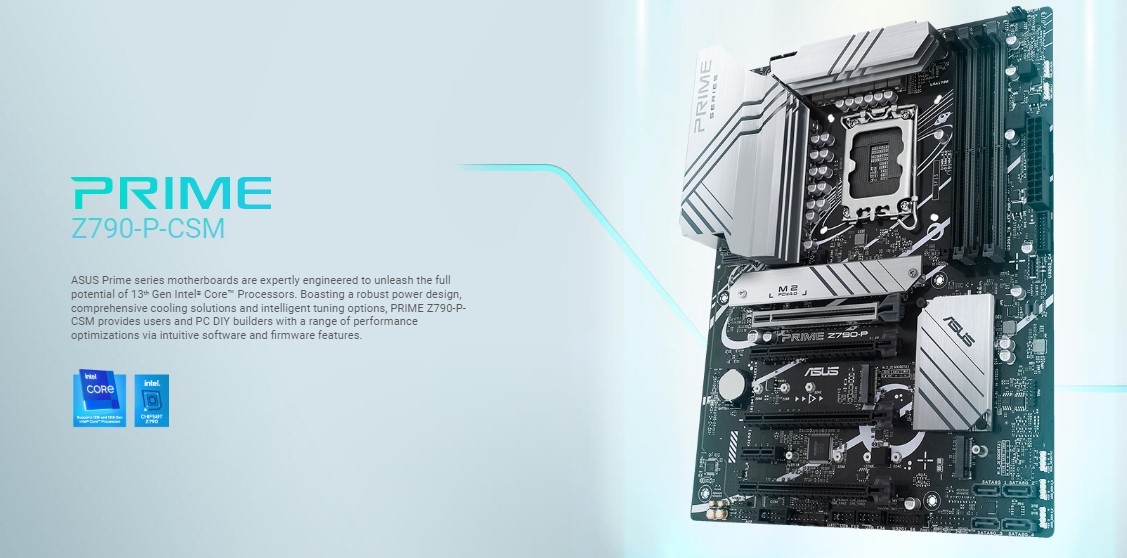

ASUS PRIME Z790-P-CSM 12th/13th Gen ATX Motherboard. The ASUS PRIME Z790-P-CSM is a motherboard designed to support 12th and 13th Gen Intel Core processors, Pentium Gold, and Celeron processors. It has an LGA1700 socket and supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. The chipset used in this motherboard is the Intel Z790 Chipset. It supports up to 128GB DDR5 memory, with a maximum data rate of 7200+ (OC). The motherboard has four DIMM slots and features dual-channel memory architecture, Intel Extreme Memory Profile (XMP), and OptiMem II. The graphics on this motherboard include 1 x DisplayPort and 1 x HDMI port, and they may vary between CPU types. The expansion slots include one PCIe 5.0 x16 slot and three PCIe 4.0 x16 slots (support x4 mode) for Intel 13th and 12th Gen Processors, and one PCIe 3.0 x1 slot for Intel Z790 Chipset.

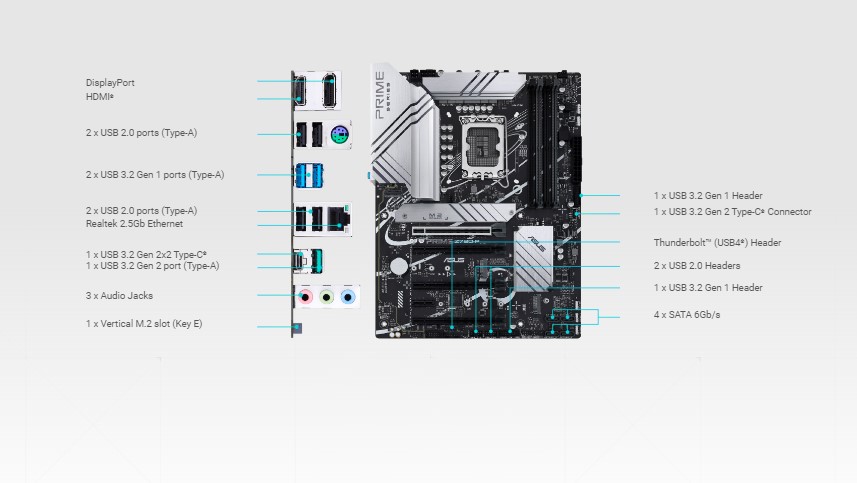

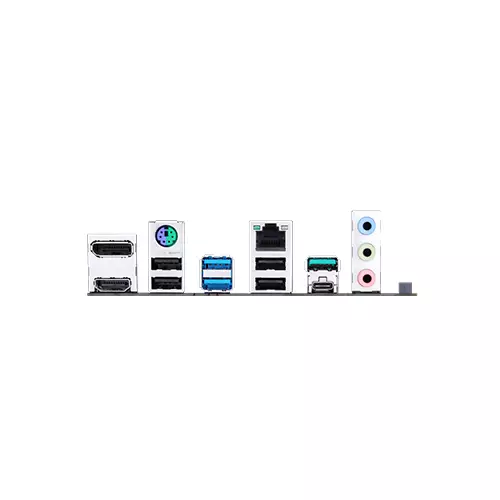

The motherboard supports three M.2 slots and four SATA 6Gb/s ports. It has one Realtek 2.5Gb Ethernet port and a vertical M.2 slot (Key E, CNVi & PCIe) for wireless and Bluetooth connectivity. The ASUS PRIME Z790-P-CSM also features USB ports, including one USB 3.2 Gen 2x2 port, one USB 3.2 Gen 2 port, two USB 3.2 Gen 1 ports, and four USB 2.0 ports on the back panel. It also has one USB 3.2 Gen 2 connector that supports USB Type-C, two USB 3.2 Gen 1 headers, and two USB 2.0 headers on the front panel. The audio codec is the Realtek 7.1 Surround Sound High Definition Audio CODEC, and the motherboard has dedicated audio PCB layers, premium audio capacitors, and audio shielding. The motherboard requires a chassis with an HD audio module in the front panel to support 7.1 Surround Sound audio output. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Asus Motherboard available at Techland BD is well recognized. The large selection of Asus Motherboard available at Techland BD is well recognized.
