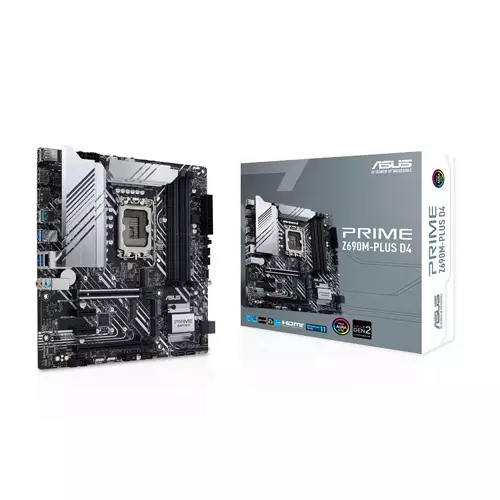

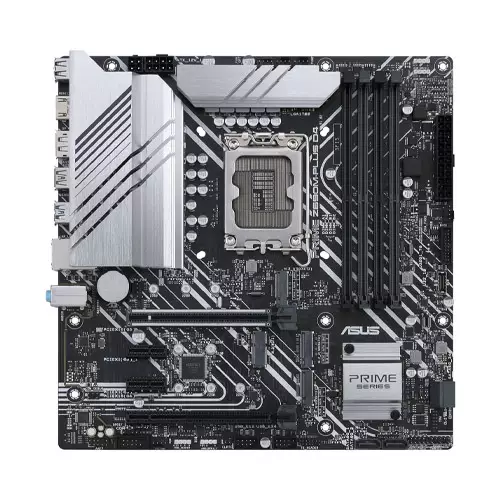

ASUS PRIME Z690M-PLUS D4 mATX LGA 1700 Motherboard
ASUS PRIME Z690M-PLUS D4 mATX LGA 1700 Motherboard
ASUS PRIME Z690M-PLUS D4 mATX LGA 1700 Motherboard - 1
ASUS PRIME Z690M-PLUS D4 mATX LGA 1700 Motherboard - 2

ASUS PRIME Z690M-PLUS D4 mATX LGA 1700 Motherboard

0 Reviews
Stock : Discontinued
PID : P00025063733
Brand : Asus
Model : PRIME Z690M-PLUS D4
Warranty : 3 Years
  • mATX Form Factor
  • Intel Z690 Chipset
  • LGA 1700 Socket
  • PCIe 5.0, Intel 1 Gb Ethernet

SPECIFICATIONS

Processor

Supported CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Mainboard

Chipset Intel Z690 Chipset
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI

BIOS

Memory

Memory 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/
4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/
2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

OptiMem II

Storage

Supported Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® Z690 Chipset**

M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Graphics

Graphics 1 x DisplayPort

1 x HDMI port

Audio & Microphone

Audio Realtek 7.1 Surround Sound High

Definition Audio CODEC*

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Supports up to 24-Bit/192 kHz playback

Audio Features

Audio Shielding

Premium audio capacitors

Dedicated audio PCB layers

Ports

Slots Intel®12th Gen Processors*

1 x PCIe 5.0/4.0/3.0 x16 slot(s)

Intel® Z690 Chipset**

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x4 slot

2 x PCIe 3.0 x1 slots
Internal I/O Ports Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

4 x 4-pin Chassis Fan header(s)

1 x W_PUMP+ header(s)

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x Clear CMOS button

1 x COM Port header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x Power button
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ header

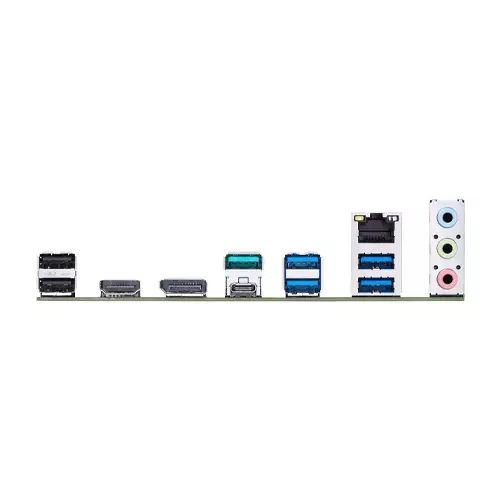

External I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Intel® 1Gb Ethernet port

3 x Audio jacks
USB Rear USB:Total 8 ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 7 ports

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports*

Physical Specification

Form Factor microATX
Dimension 24.4cm x 24.4cm

Warranty Information

Warranty 3 Years

DESCRIPTION

ASUS PRIME Z690M-PLUS D4 Motherboard

The ASUS PRIME Z690M-PLUS D4 Motherboard From ASUS. The ASUS PRIME Z690M-PLUS D4 Motherboard is designed to accommodate 12th-generation Intel processors on the LGA 1700 socket. It will allow the assembly of a powerful and versatile configuration capable of performing all tasks. For gaming, Streaming, intensive multitasking, and multimedia creation, the ASUS PRIME Z690M-PLUS D4 Motherboard is the ideal solution for building a high-performance PC. It also supports DDR4 RAM, PCI-Express 5.0 16x graphics cards, SATA 6 Gb/s, M.2 PCI-E 4.0 drives, and USB 3.1 and USB 3.2 peripherals. 10+1 DrMOS, ProCool sockets, alloy chokes and durable capacitors for stable power delivery.Large VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4. PCIe 5.0, Intel 1 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 1 Type-C connector, Thunderbolt 4 header support. ASUS OptiMem II proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximise system performance




REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASUS PRIME Z690M-PLUS D4 mATX LGA 1700 Motherboard Price in Bangladesh 2026 ?

The Asus PRIME Z690M-PLUS D4 Price in BD is 44,450৳ . This ASUS PRIME Z690M-PLUS D4 mATX LGA 1700 Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus PRIME Z690M-PLUS D4 by 44,450৳ and its regular price is 45,678৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
