ASUS PRIME Z690-A ATX LGA 1700 Motherboard
ASUS PRIME Z690-A ATX LGA 1700 Motherboard
ASUS PRIME Z690-A ATX LGA 1700 Motherboard - 1
ASUS PRIME Z690-A ATX LGA 1700 Motherboard - 2

ASUS PRIME Z690-A ATX LGA 1700 Motherboard

1 Reviews
Stock : Discontinued
PID : P00025063731
Brand : Asus
Model : PRIME Z690-A
Warranty : 3 Years
  • ATX Form Factor
  • Intel Z690 Chipset
  • LGA 1700 Socket
  • 4 x Dual-Channel DDR5 RAM Slots

SPECIFICATIONS

Processor

Supported CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Mainboard

Chipset Intel Z690 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

Storage

Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® 11th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other
Intel® Z590 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Graphics

Graphics 1 x DisplayPort

1 x HDMI port

Audio & Microphone

Audio Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*

Impedance sense for front and rear headphone outputs

Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

Supports up to 32-Bit/192 kHz playback*

Audio Features

Audio Shielding

Power pre-regulator reduces power input noise to ensure consistent performance

Rear optical S/PDIF out port

Premium audio capacitors

Dedicated audio PCB layers

Audio cover

Unique de-pop circuit

Ports

Slots Intel®12th Gen Processors*

1 x PCIe 5.0/4.0/3.0 x16 slot(s)

Intel® Z690 Chipset**

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x4 slot

2 x PCIe 3.0 x1 slots
Internal I/O Ports Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

4 x 4-pin Chassis Fan header(s)

1 x W_PUMP+ header(s)

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x Clear CMOS button

1 x COM Port header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x Power button
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ header

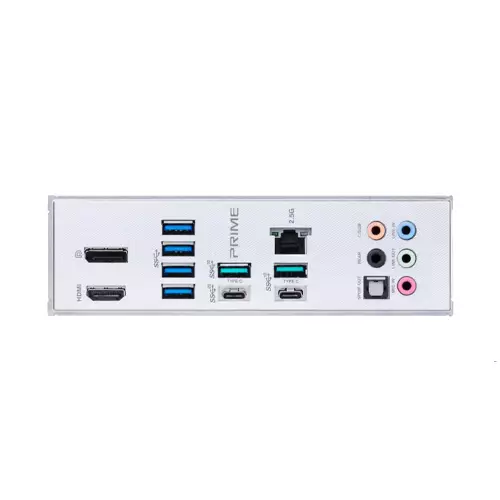

External I/O Ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x Type-C® )

4 x USB 3.2 Gen 1 port(s) (4 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port
USB Rear USB:Total 8 ports

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 port(s) (4 x Type-A)

Front USB:Total 7 ports

1 x USB 3.2 Gen 2 connector(s) (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Physical Specification

Form Factor ATX
Dimension 30.5cm x 24.4cm

Warranty Information

Warranty 3 Years

DESCRIPTION

ASUS PRIME Z690-A Motherboard


The ASUS PRIME Z690-A Motherboard from ASUS. Designed for gaming enthusiasts, the ASUS PRIME Z690-A Motherboard provides robust functionality enabling you to install resource-demanding components such as high-end RAM modules and graphics cards. An Intel Z690 chipset rests as the heart of this motherboard, giving you access to an LGA 1700 socket, four dual-channel DDR4 RAM slots, four SATA III ports, and four M.2 interfaces. Install a wide range of graphics and utility cards with a multitude of expansion slots including one PCIe 5.0 x16, one PCIe 3.0 x16, one PCIe 3.0 x4, and two PCIe 3.0 x1 slots. An array of USB ports and headers allows you to connect resource-demanding peripherals such as external drives and more with USB 3.2 Gen 1 and Gen 2 Type-A and Type-C Ports. The USB 3.2 Gen 2x2 Type-C port provides greater power for devices like audio interfaces and mass storage devices. A Realtek 2.5 Gigabit Ethernet port delivers and enhanced data signal, giving you a solid connection essential for competitive online gaming. The PRIME Z690-A supports Windows 10 (64-Bit) as well as Windows 11 (64-Bit) right out of the box.




REVIEWS

Login to write a review.

Overall Rating

5 out of 5 stars
1
Total Reviews
5 star
1
4 star
0
3 star
0
2 star
0
1 star
0
DIPTO

BEST QUALITY MOTHERBOARD OF 12TH GEN

13 November, 2021

What is the ASUS PRIME Z690-A ATX LGA 1700 Motherboard Price in Bangladesh 2026 ?

The Asus PRIME Z690-A Price in BD is 31,200৳ . This ASUS PRIME Z690-A ATX LGA 1700 Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 1 reviews. Tech Land BD Offers you Asus PRIME Z690-A by 31,200৳ and its regular price is 32,000৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
