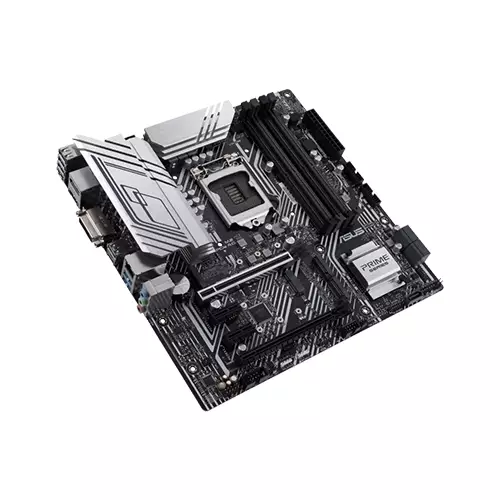

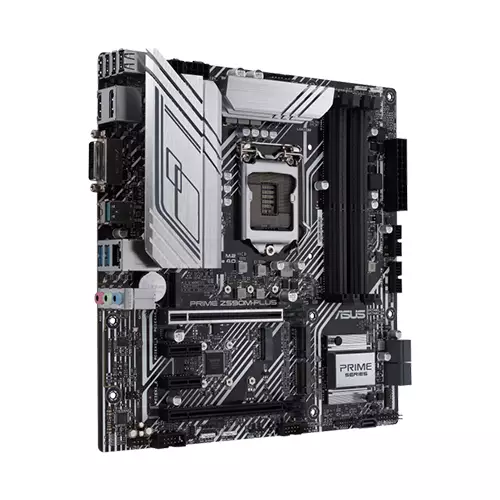

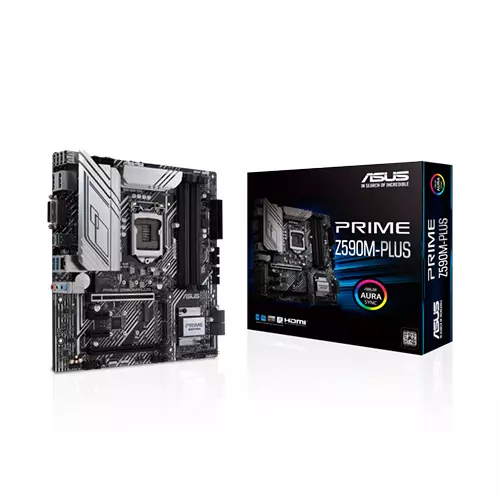

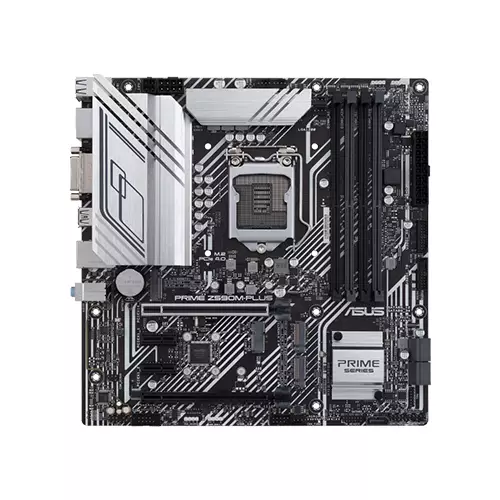

Asus Prime Z590M PLUS 10th and 11th Gen Micro ATX Intel Motherboard
- 8-pin ProCool connector
- Next-gen connectivity
- Enhanced power solution
- Comprehensive cooling
SPECIFICATIONS
Processor
Pentium Gold and Celeron® Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Mainboard
Memory
5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/320
0/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Storage
Intel11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® Z590 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode)
5 x SATA 6Gb/s ports
Graphics
1 x DVI-D
1 x HDMI 1.4 / 2.0
Audio & Microphone
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback"
Audio Shielding
Premium Japanese audio capacitors
Dedicated audio PCB layers

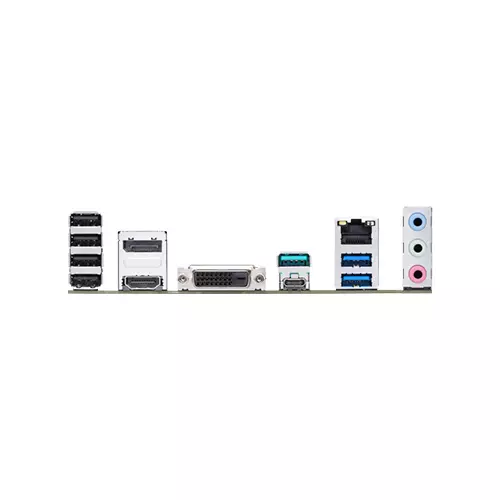

Ports
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 mode
- Intel10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 mode
Intel Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
3 x M.2 slots (Key M)
5 x SATA 6Gb/s ports
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x DVI-D port
1 x HDMITM port
1 x Intel I219V 1Gb Ethernet
3 x Audio jacks
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Physical Specification
Warranty Information
DESCRIPTION
Asus Prime Z590M PLUS ATX Motherboard in Bangladesh
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th-generation Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z590M-PLUS provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
Cool to the Core
Prime Z590 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Build on a Solid Foundation
Prime Z590 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
ProCool Connector
Proprietary connector augment the motherboard's link to the PSU with 8-pin connector that pass 12 volts of power directly to the processors. 8-pin connector features solid pins that can handle more current than hollow-pin connector.
Small Details Make a Big Difference
Prime Z590 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Outstanding Audio
Combined onboard features deliver elevated audio.Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.
