ASUS Prime Z590-P WiFi LGA 1200 Intel 11th & 10th Gen ATX Motherboard
ASUS Prime Z590-P WiFi LGA 1200 Intel 11th & 10th Gen ATX Motherboard
ASUS Prime Z590-P WiFi LGA 1200 Intel 11th & 10th Gen ATX Motherboard - 1
ASUS Prime Z590-P WiFi LGA 1200 Intel 11th & 10th Gen ATX Motherboard - 2

ASUS Prime Z590-P WiFi LGA 1200 Intel 11th & 10th Gen ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025063265
Brand : Asus
Model : Prime Z590-P WiFi
Warranty : 3 Years
  • ATX Form Factor
  • Intel Z590 Socket
  • 4 x Dual-Channel DDR4-5133 (O.C.)
  • 3 x M.2 slots and 4 x SATA

SPECIFICATIONS

Processor

Supported CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Mainboard

Chipset Intel Z590
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Memory

Memory Max Memory Size:128GB
5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.

Storage

Supported Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® Z590 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

Graphics

Graphics Graphics specifications may vary between CPU types.
Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

Audio & Microphone

Audio ALC887/897
Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Dedicated audio PCB layers

Ports

Slots 1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
Intel® 11th & 10th Gen Processors*
1 x PCIe 4.0/3.0 x16 slot
- Intel® 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes
Intel® 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes
Intel Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ header

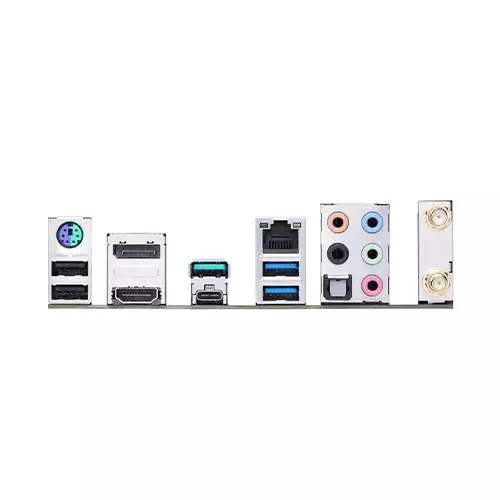

USB Rear USB:Total 6 ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 9 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports*

Physical Specification

Form Factor ATX 30.5cm x 23.4cm

Warranty Information

Warranty 3 Years

DESCRIPTION

ASUS PRIME Z590-P WiFi Motherboard

The ASUS Prime Z590P WiFi motherboard from ASUS. Combining style and utility, the Prime Z590P lets you take advantage of resource-intensive components while delivering a clean look suitable for any builder. With a rugged power supply design, improved cooling, and support for 10th- and 11th-generation Intel processors, the ASUS Prime Z590P WiFi motherboard delivers high-quality performance, whether you're a business professional or a computer enthusiast, and is expertly engineered to get the most out of it. Exploit the potential of the 10th and 11th-generation Intel Core processors. With a rugged power design, comprehensive cooling solutions, and intelligent tuning options, the ASUS Prime Z590P WiFi motherboard offers everyday PC users and DIY enthusiasts a range of performance tuning options through intuitive software and features. The ASUS Prime Z590P WiFi motherboard includes flexible tools to fine-tune every aspect of your system, so you can tailor performance settings to how you work to maximize productivity.



REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASUS Prime Z590-P WiFi LGA 1200 Intel 11th & 10th Gen ATX Motherboard Price in Bangladesh 2026 ?

The Asus Prime Z590-P WiFi Price in BD is 45,540৳ . This ASUS Prime Z590-P WiFi LGA 1200 Intel 11th & 10th Gen ATX Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus Prime Z590-P WiFi by 45,540৳ and its regular price is 55,550৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
