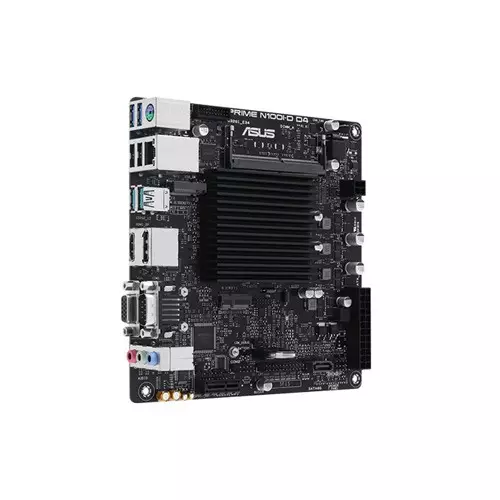

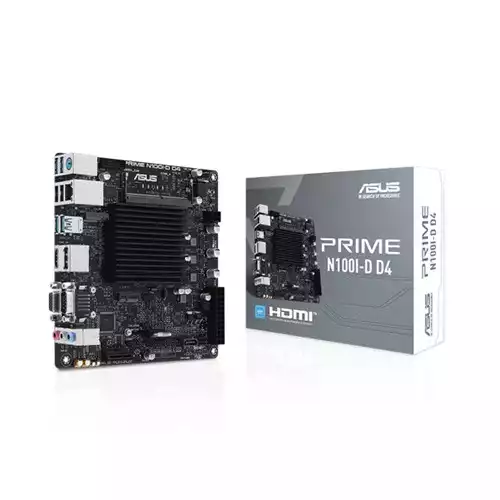

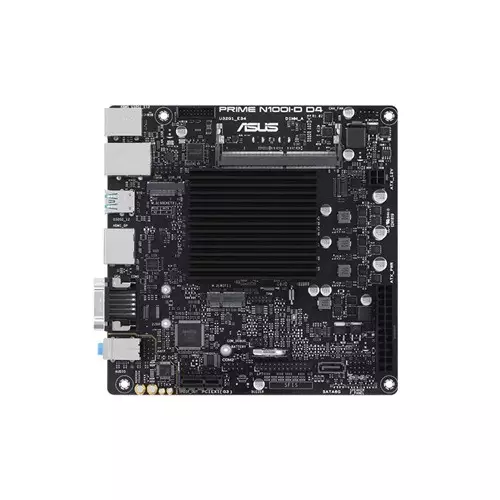

Asus PRIME N100I-D D4 Mini-ITX Motherboard
- Onboard Intel Processor N100
- M.2 slots: 1 x M.2 slot
- Memory: 1 x SO-DIMM, Max. 16GB, DDR4
- USB: 6x Rear, 4x Front
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Supports Intel Turbo Boost Technology 2.0
Mainboard
Memory
3200/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Graphics
1 x VGA port
1 x HDMI port
Networking & Connectivity
ASUS LANGuard
Audio & Microphone
- Supports: Jack-detection, Multi-Recording, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium audio capacitors
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
Ports
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
1 x SATA 6Gb/s port
USB
1 x USB 3.2 Gen 1 (5G) header supports 2
additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x Chassis Intrude header
1 x LPT header
1 x S/PDIF out header
1 x SPI TPM header (14-1pin)
1 x Speaker Header
1 x System Panel connector

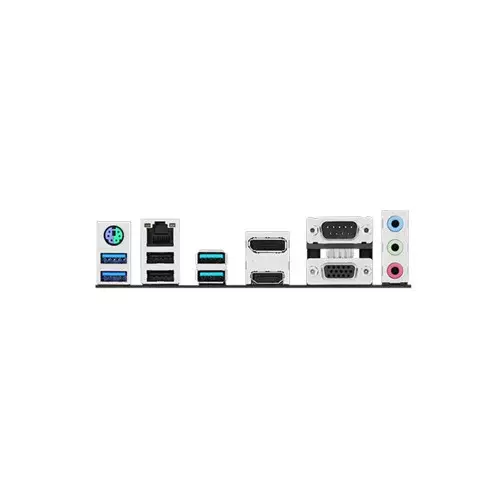

2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMITM Port
1 x COM port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2
additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidt
Special Features
- ESD Guards
- LANGuard
- Overvoltage Protection
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-LED Core
ASUS Thermal Solution
- CPU heatsink design
Software Features
ASUS Exclusive Software
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
Others
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Screw package for M.2 SSD
1 x Screw package for M.2 Key E
Documentation
1 x User guide
Physical Specification
Warranty Information
PRODUCT DESCRIPTION
Asus PRIME N100I-D D4 Mini-ITX Motherboard
ASUS PRIME N100I-D D4 Mini-ITX motherboard is a compact and versatile solution designed for modern computing needs. Featuring an onboard Intel Processor N100 with Intel Turbo Boost Technology 2.0, this motherboard delivers reliable performance for everyday tasks. It supports up to 16GB of DDR4 memory, ensuring smooth multitasking and efficient data processing. The motherboard includes various display options with one DisplayPort, one VGA port, and one HDMI port, supporting up to 4K resolution at 60Hz. For expansion, it provides a PCIe 3.0 x1 slot and an M.2 slot for SSDs, alongside one SATA 6Gb/s port. Connectivity is robust with Realtek 1Gb Ethernet, multiple USB ports, and audio jacks, including 7.1 surround sound support with Realtek High Definition Audio CODEC. This Mini-ITX motherboard is designed with ASUS’s signature quality and durability, featuring ESD Guards, LANGuard, and overvoltage protection.
Availability and Usability
The ASUS PRIME N100I-D D4 Mini-ITX motherboard is available at Tech Land BD, ensuring easy access for customers in Bangladesh. This motherboard is ideal for building compact yet powerful systems, perfect for home, office, or small-scale server applications. Its Mini-ITX form factor makes it suitable for small cases, offering flexibility in system design without compromising on performance or connectivity. The extensive range of ports, including USB 3.2 Gen 2, USB 3.2 Gen 1, and USB 2.0, provides ample connectivity options for peripherals and devices. Additionally, the support for multiple display outputs and advanced audio features makes it a great choice for multimedia setups. With ASUS's proven quality and three-year replacement warranty, customers can rely on the PRIME N100I-D D4 for long-term stability and performance.
Highlights
- Onboard Intel Processor N100 with Turbo Boost Technology 2.0
- Supports up to 16GB DDR4 memory
- Multiple display options with DisplayPort, VGA, and HDMI
- Realtek 1Gb Ethernet and extensive USB connectivity
- Mini-ITX form factor for compact system builds
Buy the ASUS PRIME N100I-D D4 from Tech Land BD Today!
Upgrade your computing setup with the ASUS PRIME N100I-D D4 Mini-ITX Motherboard from Tech Land BD. This motherboard combines compact design, powerful performance, and extensive connectivity options, making it the perfect choice for modern PC builds. Don't miss out on the chance to enhance your system's capabilities with ASUS's renowned quality and reliability. Visit Tech Land BD today and take advantage of our competitive prices and excellent customer service. Get your ASUS PRIME N100I-D D4 motherboard now and experience the best in technology and performance!
