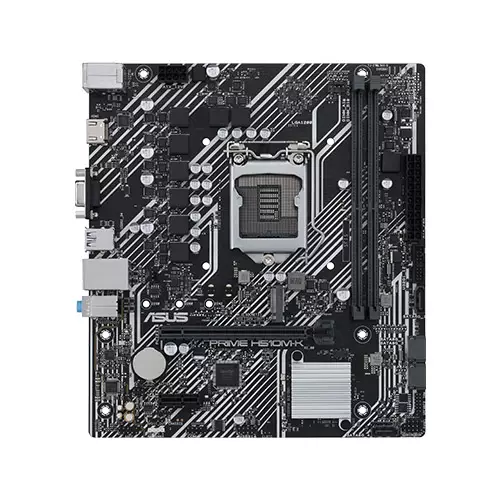

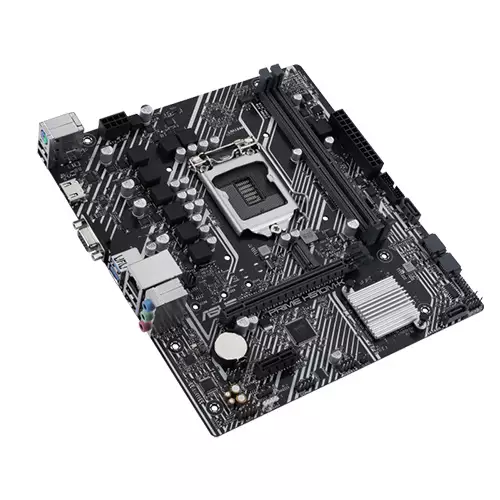

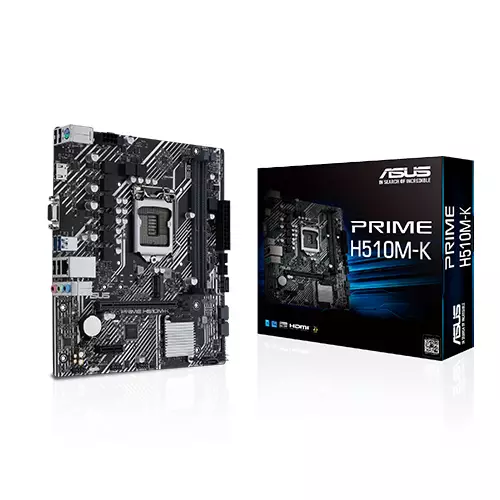

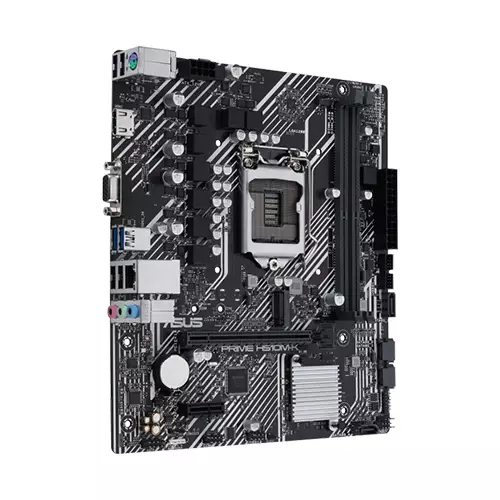

ASUS PRIME H510M-K R2.0 micro ATX motherboard
ASUS PRIME H510M-K R2.0 micro ATX motherboard
ASUS PRIME H510M-K R2.0 micro ATX motherboard - 1
ASUS PRIME H510M-K R2.0 micro ATX motherboard - 2
ASUS PRIME H510M-K R2.0 micro ATX motherboard - 3
ASUS PRIME H510M-K R2.0 micro ATX motherboard - 4

ASUS PRIME H510M-K R2.0 micro ATX motherboard

0 Reviews
Stock : Discontinued
PID : P0122506214
Brand : Asus
Model : H510M-K
  • Intel H510 Chipset
  • Rear 6 USB ports
  • 128 Mb Flash ROM
  • mATX Form Factor

SPECIFICATIONS

Processor

Supported CPU Intel Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron Processors*
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Mainboard

Chipset Intel H510 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Storage

Supported Storage Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H510 ChipsetM.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

Graphics

Graphics 1 x D-Sub
1 x HDMI 1.4 / 2.0

Networking & Connectivity

LAN 1 x Intel® I219-V 1Gb Ethernet
ASUS LANGuard

Audio & Microphone

Audio Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback"

Ports

Slots Intel 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th Gen processors support PCIe 4.0 x16
-Intel 10th Gen processors support PCIe 3.0 x16
Intel H510 Chipset
1 x PCIe 3.0 x1 slot
Internal I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x HDMI™ port
1 x Intel I219-V 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

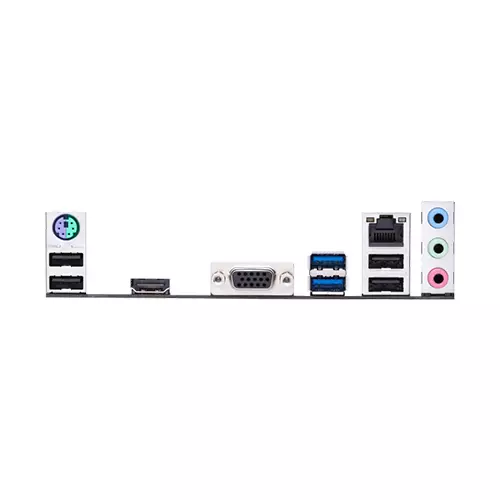

External I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x HDMI port
1 x Intel I219-V 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
USB Rear USB:Total 6 ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB:Total 4 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
HDMI HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max.

Others

Other Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS Lighting Control
- RGB header

Physical Specification

Form Factor mATX Form Factor
22.6cm x 20.3cm
Dimension 10.79 x 10.31 x 2.05 inches

Warranty Information

Warranty 3 Years

DESCRIPTION

ASUS PRIME H510M-K R2.0 Motherboard in Bangladesh


ASUS Prime series motherboards are expertly engineered to unleash the full potential of 11th and 10th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H510M-K provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.


Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H510 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.

Cool to the Core

Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads

Cooler by Design

Prime H510 series features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS

Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

Build on a Solid Foundation

Prime H510 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. ASUS H510 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

M.2 (up to 32 Gbps)

M.2 slot supports data-transfer speeds of up to 32 Gbps via x4 PCI Express 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives.

Small Details Make a Big Difference

Prime H510 series adds the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look.

Outstanding Audio

Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
