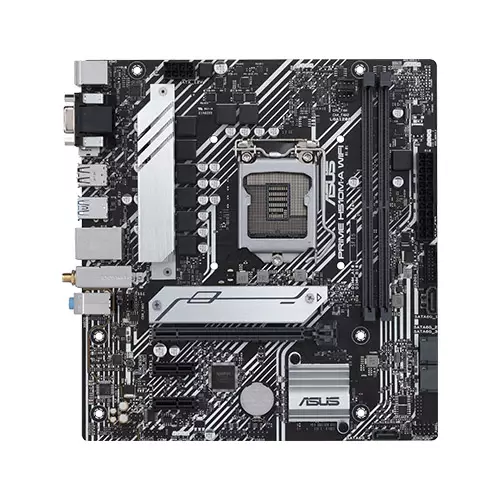

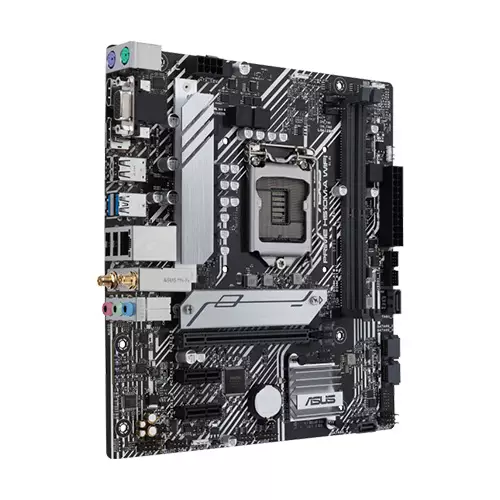

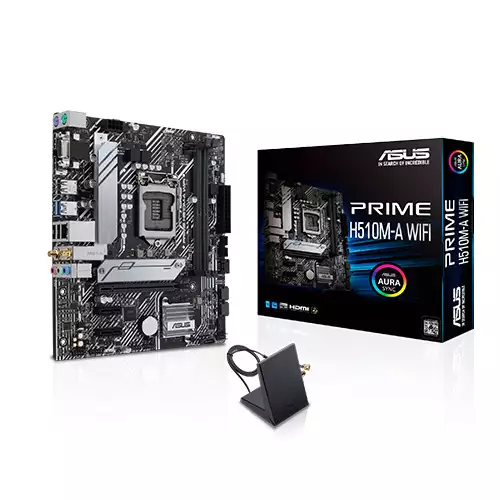

ASUS PRIME H510M-A micro ATX WIFI motherboard

ASUS PRIME H510M-A micro ATX WIFI motherboard
ASUS PRIME H510M-A micro ATX WIFI motherboard
ASUS PRIME H510M-A micro ATX WIFI motherboard
ASUS PRIME H510M-A micro ATX WIFI motherboard
Save: 1000৳
ASUS PRIME H510M-A micro ATX WIFI motherboard
ASUS PRIME H510M-A micro ATX WIFI motherboard
ASUS PRIME H510M-A micro ATX WIFI motherboard
ASUS PRIME H510M-A micro ATX WIFI motherboard
ASUS PRIME H510M-A micro ATX WIFI motherboard
product price12,000৳
special price11,000৳
Stock Status
In Stock
Product ID
17690
Brand
Asus
Product modelH510M-A
Total Reviews
11,000৳

Cash Discount Price

Check available payment method
Contact for bulk quantity: 09613828201
11,572৳

EMI Price*

Starting from 3,857৳/month. For Discount Price
Click here to view 27 banks EMI Plans
Short Description
  • Intel H510 Chipset
  • DDR4 3200(OC)
  • Intel  Wi-Fi 5
  • 128Mb Flash ROM
  • Stock availability is subject to change. Please confirm availability before shopping by calling us.
  • The product image is for illustration purposes only. The actual product may vary in size, color, and layout. No claim will be accepted for an image mismatch.
  • Tech Land BD can change the price of any product at any moment due to the volatile price of the technology.
  • We cannot guarantee that the information on this page is 100% correct. Tech Land BD is not responsible for the results obtained from the use of this information.
Processor
Supported CPU Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel 14 nm CPU
Mainboard
Chipset Intel H510 Chipset
Memory
Memory DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Storage
Supported Storage Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Graphics
Graphics 1 x DisplayPort 1.4 1 x D-Sub 1 x HDMI 1.4 / 2.0
Audio & Microphone
Audio Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback
Networking & Connectivity
WiFi Intel Wi-Fi 5 9462NGW Wi-Fi 5 (802.11 a/b/g/n/ac) Supports 2.4/5GHz frequency band Bluetooth v5.1
Ports
Slots Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel® 11th Gen processors support PCIe 4.0 x16 - Intel® 10th Gen processors support PCIe 3.0 x16 Intel® H510 Chipset 2 x PCIe 3.0 x1 slots
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header

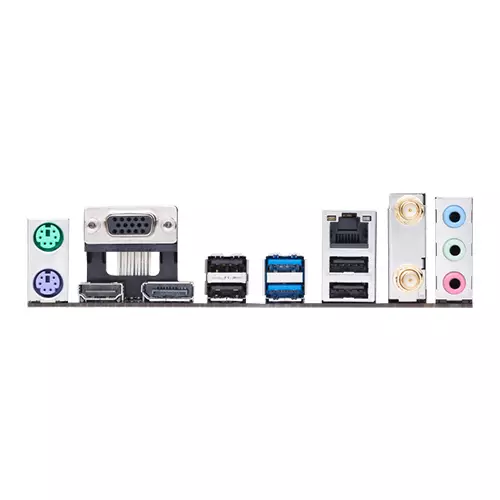

External I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI™ port 1 x ASUS Wi-Fi Module 1 x Intel® I219-V 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port
USB Rear USB:Total 6 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB:Total 5 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports
HDMI Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4k 60hz others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz
Technical Info
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Physical Specification
Form Factor mATX Form Factor 22.6cm x 21.1cm
Others
Other Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers
Warranty Information
Warranty 3 Years

ASUS Prime H510M-A WIFI motherboard in Bangladesh

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 11th and 10th Generation Intel Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H510M-A WIFI provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.


Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H510 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.

Cool to the Core

Prime H510 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

M.2 Heatsink

An M.2 drive sits under a passive heatsink to ward off the throttling that can occur with sustained transfers. The heatsink is held in place by easily-removable captive screws.


Build on a Solid Foundation

ASUS H510 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

M.2 (up to 32 Gbps)

The M.2 supports x4 PCI Express 3.0 bandwidth, up to 32Gb/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.


mall Details Make a Big Difference

Prime H510 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Aura Sync

Outshine the Competition,A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers and it can all be synced with an ever-growing portfolio of Aura-capable hardware.


[product_table id="34" limit="10" type="filter" filter_category="6082"]

Review

Get specific details about this product from customers who own it.

What is the ASUS PRIME H510M-A micro ATX WIFI motherboard Price in Bangladesh 2024?

The Asus H510M-A Price in BD is 11,000৳ in Today's 2024-04-27 Market. This ASUS PRIME H510M-A micro ATX WIFI motherboard Manufacturing by Asus Comes With Based on 0 reviews. Tech Land BD Offers you Asus H510M-A by 11,000৳ and its regular price is 12,000৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
