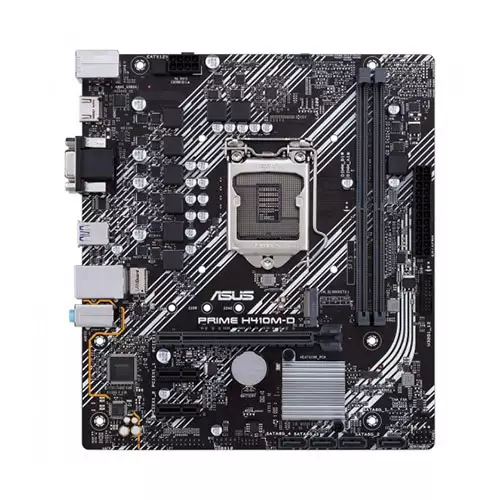

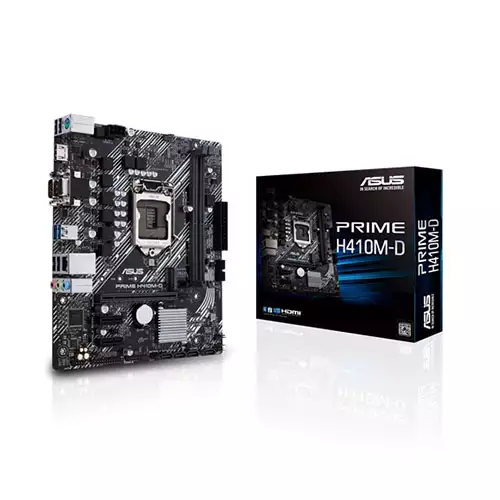

Asus Prime H410M-D Intel 10th Gen Micro-ATX Motherboard
Asus Prime H410M-D Intel 10th Gen Micro-ATX Motherboard
Asus Prime H410M-D Intel 10th Gen Micro-ATX Motherboard - 1
Asus Prime H410M-D Intel 10th Gen Micro-ATX Motherboard - 2

Asus Prime H410M-D Intel 10th Gen Micro-ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025063263
Brand : Asus
Model : Prime H410M-D
Warranty : 3 Years
  • 10th Gen Intel Core processors
  • 5X Protection III
  • 4 x SATA 6Gb/s port(s)
  • USB 3.2 Gen 1 Type-A

SPECIFICATIONS

Processor

Supported CPU Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Mainboard

Chipset Intel H410
BIOS 128 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory Type
Dual Channel Memory Architecture
Slots
2 x DIMM
Supported Memory
DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
OptiMem
Maximum Memory
Max. 64GB

Storage

Supported Storage Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H410 Chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*1
4 x SATA 6Gb/s port(s)

Graphics

Graphics Integrated Graphics Processor

Networking & Connectivity

LAN Realtek® RTL8111H

Audio & Microphone

Audio Realtek ALC887/897 7.1-Channel High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers

Ports

Slots PCI
Intel 10th Gen Processors: 1 x PCIe 3.0 x16 (x16 mode)
Intel H410 Chipset: 2 x PCIe 3.0 x1
M.2 Socket
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
Internal I/O Ports 1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector

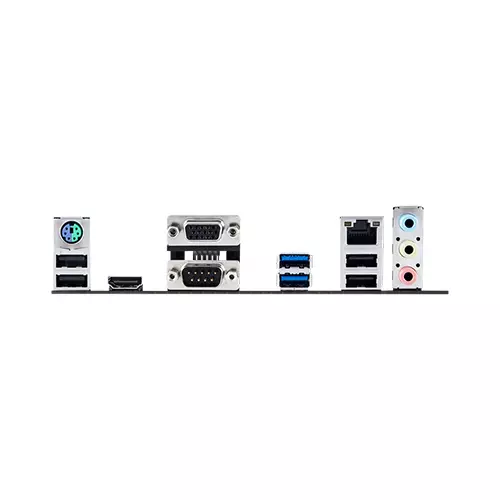

USB Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 4 )
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)

Physical Specification

Form Factor mATX Form Factor
8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )

Warranty Information

Warranty 3 Years

DESCRIPTION

ASUS PRIME H410M-D Motherboard

The Asus PRIME H410M-D motherboard from Asus. The ASUS Prime series was developed by experts to unlock the full potential of Intel's 10th generation Core processors. With a robust power supply design, comprehensive cooling solutions and intelligent tuning options, the mainboards of the Prime H410 series offer everyday PC users and DIY enthusiasts a range of performance tuning options through the included software and hardware Intel Socket 1200 for Intel Core, Pentium Gold and Celeron processors of the 10th generation Supports 14 nm Intel CPUs It has a dual-channel memory architecture and supports 2 x DIMM, max. 64 GB, DDR4 2933/2800/2666/2400/2133 MHz NonECC, unbuffered Storage. Fully compatible with 4 SATA 6Gb / s ports. It also features M.2, 1 Gb Ethernet, USB 3.2 Gen 1 Type A for ultra-fast connectivity.


[product_table id="34" limit="10" type="filter" filter_category="6082"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Asus Prime H410M-D Intel 10th Gen Micro-ATX Motherboard Price in Bangladesh 2026 ?

The Asus Prime H410M-D Price in BD is 44,500৳ . This Asus Prime H410M-D Intel 10th Gen Micro-ATX Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus Prime H410M-D by 44,500৳ and its regular price is 46,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
