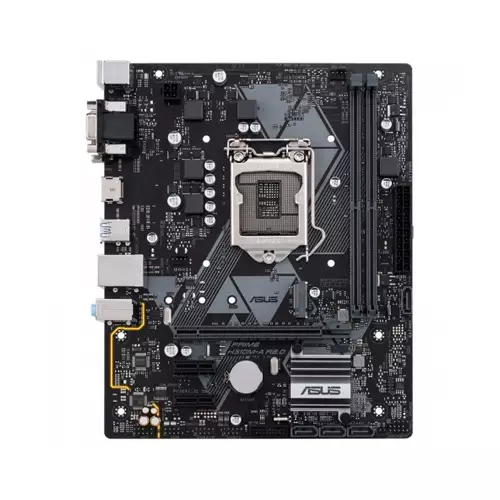

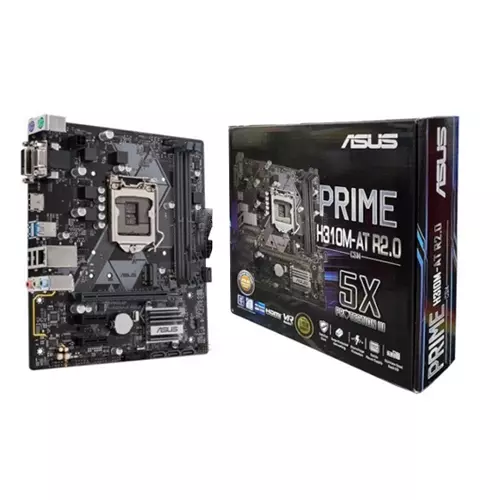

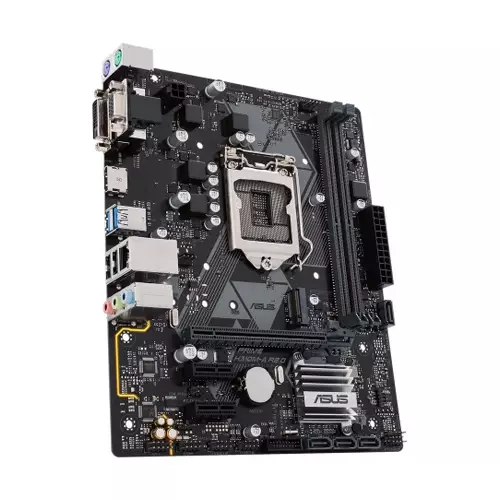

ASUS PRIME H310M-AT R2.0 9TH AND 8TH GEN MATX INTEL MOTHERBOARD

ASUS PRIME H310M-AT R2.0 9TH AND 8TH GEN MATX INTEL MOTHERBOARD

0 Reviews

Stock : Discontinued

PID : P00025064585

Brand : Asus

Model : PRIME H310M-AT R2.0

Warranty : 3 Years

Intel Socket 1151 9th / 8th Gen
Chipset Intel H310
BIOS : 128 Mb Flash ROM
mATX Form Factor

SPECIFICATIONS

Processor

Supported CPU Intel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors

Supports Intel 14 nm CPU

Supports Intel Turbo Boost Technology 2.0

Mainboard

Chipset Intel H310

BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified
log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information

Memory

Memory 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

Storage

Supported Storage Intel H310 Chipset :

1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1

4 x SATA 6Gb/s port(s), gray,

Graphics

Graphics Integrated Graphics Processor- Intel HD Graphics support

Multi-VGA output support : HDMI/DVI-D/D-Sub ports

- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz

Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Networking & Connectivity

LAN Realtek RTL8111H, 1 x Gigabit LAN

Audio & Microphone

Audio Realtek ALC887 8-Channel High Definition Audio CODEC

- Supports: Jack-detection, Front Panel Jack-retasking

Audio Feature:

- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Ports

Slots 1 x PCIe 3.0/2.0 x16 (x16 mode, gray)

2 x PCIe 2.0 x1

Internal I/O Ports 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)

1 x COM port(s) connector(s)

4 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x Chassis Fan connector(s) (1 x 4 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Clear CMOS jumper(s)

1 x System panel connector

1 x Speaker connector

External I/O Ports HDMI :
1 x HDMI

D-Sub (s) :
1 X D-sub

DVI-D (s) :
1 x DVI-D

USB (s)
Intel H310 Chipset :
4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)

Intel H310 Chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

LAN Port (s)
Realtek RTL8111H, 1 x Gigabit LAN

Supported Storage

Intel H310 Chipset :

1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1

4 x SATA 6Gb/s port(s), gray,
Audio

3 x Audio jack(s)

USB Intel H310 Chipset :

4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)

Intel H310 Chipset :

6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

HDMI 1 x HDMI

Physical Specification

Form Factor mATX Form Factor

Dimension 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )

Warranty Information

Warranty 3 years

DESCRIPTION

ASUS PRIME H310M-AT R2.0 9TH AND 8TH GEN MATX INTEL MOTHERBOARD price in Bangladesh

ASUS PRIME H310M-AT R2.0 mATX Intel Motherboard is the perfect choice for users in Bangladesh looking for reliable, high-performance computing, available at Techland BD. Designed to support 8th and 9th Gen Intel Core, Pentium Gold, and Celeron processors with Intel Socket 1151, this motherboard delivers efficient performance with support for Intel Turbo Boost Technology 2.0 and 14nm CPUs. Built on the Intel H310 chipset, the PRIME H310M-AT R2.0 features a robust memory architecture supporting dual-channel Non-ECC DDR4 memory at speeds of 2666/2400/2133 MHz, along with Intel Extreme Memory Profile (XMP) support for enhanced memory performance. Storage options are versatile, offering 1 x M.2 Socket 3 (2242/2260/2280) compatible with SATA and PCIe x2 devices, alongside 4 x SATA 6Gb/s ports, enabling fast data access and storage expansion. Graphics capabilities are impressive with integrated Intel HD Graphics supporting multiple outputs including HDMI 1.4b (up to 4K at 24Hz), DVI-D (1920x1200 at 60Hz), and D-Sub (1920x1200 at 60Hz), alongside Intel InTru 3D, Quick Sync Video, and Clear Video HD technologies for smooth multimedia performance. Networking is powered by Realtek RTL8111H Gigabit LAN for stable and fast connectivity. Audio is elevated with the Realtek ALC887 8-channel High Definition Audio CODEC, featuring LED-illuminated traces, dedicated audio PCB layers, audio shielding, and premium Japanese capacitors for immersive, clear sound quality. Expansion and connectivity are well-covered with 1 PCIe 3.0/2.0 x16 slot, 2 PCIe 2.0 x1 slots, multiple USB ports including 4 x USB 3.1 Gen 1 and 6 x USB 2.0 ports, and comprehensive internal I/O including CPU and chassis fan headers, COM port, S/PDIF out, and front panel audio connector. The compact mATX form factor (22.6 cm x 18.5 cm) ensures compatibility with a wide range of cases while maintaining excellent performance. The ASUS PRIME H310M-AT R2.0 combines cutting-edge features, reliable build quality, and versatile connectivity, making it an ideal motherboard for gaming, office productivity, and multimedia applications, available now in Bangladesh through Techland BD for users seeking a dependable Intel-based motherboard solution. This description is SEO-optimized for keywords like “ASUS PRIME H310M-AT R2.0,” “Intel motherboard Bangladesh,” “Techland BD motherboard,” “mATX Intel motherboard,” and “8th and 9th Gen Intel motherboard.” If you want, I can also create a catchy 155-character meta description for search engines. Do you want me to do that?

REVIEWS

No reviews yet

Be the first to share your thoughts about this product.

What is the ASUS PRIME H310M-AT R2.0 9TH AND 8TH GEN MATX INTEL MOTHERBOARD Price in Bangladesh 2026 ?

The Asus PRIME H310M-AT R2.0 Price in BD is 30৳ . This ASUS PRIME H310M-AT R2.0 9TH AND 8TH GEN MATX INTEL MOTHERBOARD Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus PRIME H310M-AT R2.0 by 30৳ and its regular price is 33,330৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
