Asus Prime B860M-K-CSM Intel B860 LGA1851 DDR5 M-ATX Motherboard
Asus Prime B860M-K-CSM Intel B860 LGA1851 DDR5 M-ATX Motherboard

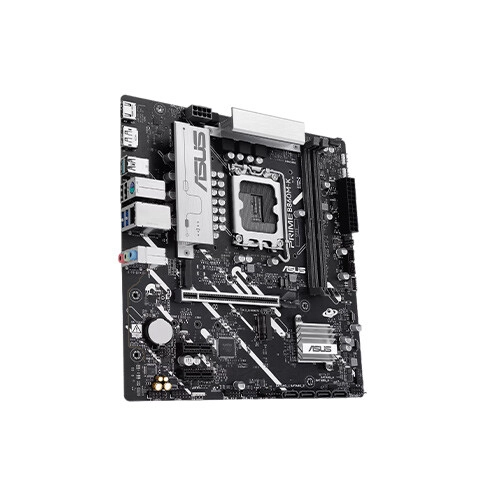

Asus Prime B860M-K-CSM Intel B860 LGA1851 DDR5 M-ATX Motherboard - 1

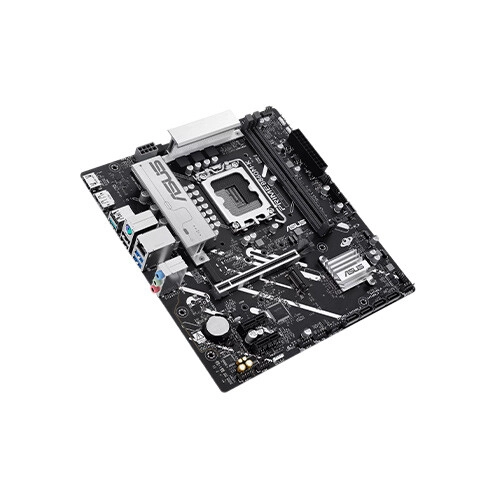

Asus Prime B860M-K-CSM Intel B860 LGA1851 DDR5 M-ATX Motherboard - 2
Asus Prime B860M-K-CSM Intel B860 LGA1851 DDR5 M-ATX Motherboard - 3

Asus Prime B860M-K-CSM Intel B860 LGA1851 DDR5 M-ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0082604001
Brand : Asus
Model : Prime B860M-K-CSM
Warranty : 3 Years
  • Chipset - Intel B860 Chipset
  • Memory size - 128GB
  • Memory type - DDR5
  • Form Factor - M-ATX

Product Pricing

Discount Price

৳19,400 ৳20,200
+ Available Payment Method

EMI Start From*

৳683

SPECIFICATIONS

Processor

Supported CPU

Supports Intel Core Ultra Processors (Series 2), LGA1851

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset

Intel B860 Chipset

Mainboard

BIOS

256(128+128) Mb Flash ROM, UEFI AMI BIOS

Memory

Memory

2 x DIMM slots, max. 128GB, DDR5

Supports up to 8800+MT/s (OC),
Non-ECC, Un-buffered ,
Clocked Unbuffered DIMM (CUDIMM)*

Dual channel memory architecture

DIMM Fit

Supports Intel® Extreme Memory
Profile (XMP) memory module

ASUS Enhanced Memory Profile III(AEMPIII)

Storage

Supported Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel Core Ultra Processors (Series 2)

M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)

Intel B860 Chipset

M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

Graphics

Graphics

1 x DisplayPort

1 x HDMI port

Graphics specifications may vary
between CPU types. Please
refer to www.intel.com for any updates.

Supports max. 4K@60Hz as specified
in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.

VGA resolution support depends on
processors' or graphic cards' resolution.

Networking & Connectivity

LAN

1 x Realtek 2.5Gb Ethernet

ASUS LANGuard

Audio & Microphone

Audio

Realtek 7.1 Surround Sound High
Definition Audio CODEC

- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

 A chassis with an HD audio module in
the front panel is required to
support 7.1 Surround Sound audio output.

Ports

Slots

Intel Core Ultra Processors (Series 2)

1 x PCIe 4.0 x16 slot

Intel B860 Chipset

2 x PCIe 4.0 x1 slots
Internal I/O Ports

Fan and Cooling Related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

1 x 8-pin +12V CPU Power connector

Storage Related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 5Gbps connector
(supports USB Type-C )

1 x USB 5Gbps header supports 2
additional USB 5Gbps ports

2 x USB 2.0 headers support 4
additional USB 2.0 ports

Miscellaneous

2 x Addressable Gen2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x S/PDIF Out header

1 x SPI TPM header (14-1 pin)

1 x 10-1 pin Front Panel System header

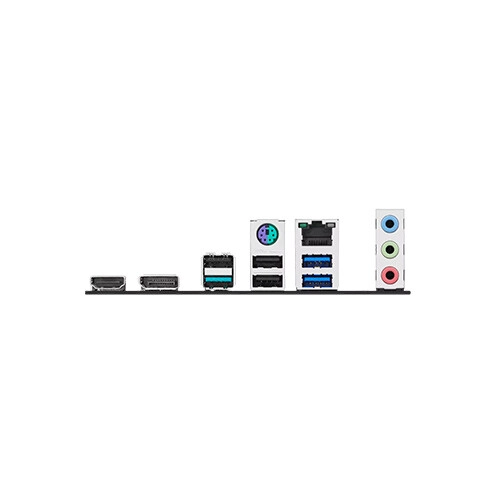

External I/O Ports

1 x USB 10Gbps port (1 x Type-A)

2 x USB 5Gbps ports (2 x Type-A)

3 x USB 2.0 ports (3 x Type-A)

1 x DisplayPort

1 x HDMITM port

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port
USB

Rear USB (Total 6 ports)

1 x USB 10Gbps port (1 x Type-A)

2 x USB 5Gbps ports (2 x Type-A)

3 x USB 2.0 ports (3 x Type-A)

Front USB (Total 7 ports)

1 x USB 5Gbps connector
(supports USB Type-C)

1 x USB 5Gbps header supports 2
additional USB 5Gbps ports

2 x USB 2.0 headers support 4
additional USB 2.0 ports

USB Type-C power delivery
output: max. 5V/3A.

USB_E1 port, USB_E2 port,
USB_E3 port and USB_E4 port
share the bandwidth.

Software

Operating System

Windows 11(22H2 & later),
Windows 10 64-bit(21H2 & later)
Software Features

ASUS Exclusive Software

Armoury Crate

- Aura Sync

- Fan Xpert 2+

- Power Saving

ASUS AI Advisor

ASUS DriverHub

ASUS CPU-Z

Norton 360 Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash

- ASUS UEFI BIOS EZ Mode

- ASUS MyHotkey

Special Features

Special Features

ASUS 5X PROTECTION III

- DIGI+VRM

- LANGuard

- Overvoltage protection

- SafeSlot Core+

- Stainless-steel back I/O

ASUS Q-Design

- Q-Dashboard

- Q-DIMM

- Q-LED Core

- Q-Slot

ASUS Thermal Solution

- VRM heatsink design

ASUS EZ DIY

- ProCool

Aura Sync

- Aura RGB header

- Addressable Gen2 headers

Others

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O shield

1 x M.2 anchor package

Documentation

1 x Quick start guide

1 x ACC Express activation key card

Physical Specification

Form Factor

micro-ATX Form Factor

9.6 inch x 8.75 inch (24.4cm x 22.2cm)

Warranty Information

Warranty

3 years

DESCRIPTION

Asus Prime B860M-K-CSM Intel B860 LGA1851 DDR5 M-ATX Motherboard in Bangladesh

Asus Prime B860M-K-CSM Motherboard is a modern and powerful motherboard for Intel Core Ultra processors. It supports LGA1851 socket and Intel B860 chipset. This board delivers stable performance for gaming and productivity. It supports DDR5 memory with up to 128GB capacity. You can reach speeds above 8800MT/s with overclocking. The dual-channel memory design improves speed and responsiveness. It supports Intel XMP and ASUS AEMP III profiles. These features help boost memory performance easily. The motherboard includes two M.2 slots for fast NVMe SSDs. One slot supports PCIe 5.0 for ultra-fast storage speed. It also includes four SATA ports for extra storage devices. The PCIe 4.0 x16 slot supports powerful graphics cards. This ensures smooth gaming and rendering performance. The board offers HDMI and DisplayPort outputs. It supports up to 4K resolution at 60Hz. The Realtek 2.5Gb Ethernet ensures fast and stable internet. ASUS LANGuard improves network protection and reliability. The board includes multiple USB ports for flexible connectivity. You get USB 10Gbps, USB 5Gbps, and USB 2.0 support. It also supports front USB Type-C connection. The BIOS uses UEFI AMI interface for easy control. ASUS EZ DIY tools simplify installation and updates. You get Q-LED and Q-Slot for easy troubleshooting. The board includes strong protection features like DIGI+ VRM. It also has SafeSlot Core+ for GPU safety. The thermal design helps keep components cool. It supports Aura Sync RGB for lighting customization. You can connect RGB and ARGB devices easily. The micro-ATX form factor fits compact builds. It is ideal for gaming and professional systems. This motherboard offers future-ready performance and stability. It suits users who want upgrade flexibility and reliability.

Buy Asus Prime B860M-K-CSM Intel B860 LGA1851 DDR5 M-ATX Motherboard in Bangladesh from Tech Land BD:

Tech Land BD offers the best price for the Asus Motherboard in Bangladesh. They provide genuine ASUS products with official warranty support. You get trusted after-sales service and expert guidance. Their pricing stays competitive in the local market. They ensure fast delivery across Bangladesh. Customers trust Tech Land BD for reliable PC components. Their team helps you choose compatible parts easily. They also provide support for gaming and workstation builds. You can shop with confidence and safety. For best value and service, Tech Land BD is a smart choice.

FAQs:

1. Which processors does this motherboard support?

It supports Intel Core Ultra Series 2 processors with LGA1851 socket.

2. Does it support DDR5 RAM?

Yes, it supports DDR5 up to 128GB with high overclock speeds.

3. How many M.2 slots are available?

It has two M.2 slots, including one PCIe 5.0 slot.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Asus Prime B860M-K-CSM Intel B860 LGA1851 DDR5 M-ATX Motherboard Price in Bangladesh 2026 ?

The Asus Prime B860M-K-CSM Price in BD is 19,400৳ . This Asus Prime B860M-K-CSM Intel B860 LGA1851 DDR5 M-ATX Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus Prime B860M-K-CSM by 19,400৳ and its regular price is 20,200৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
