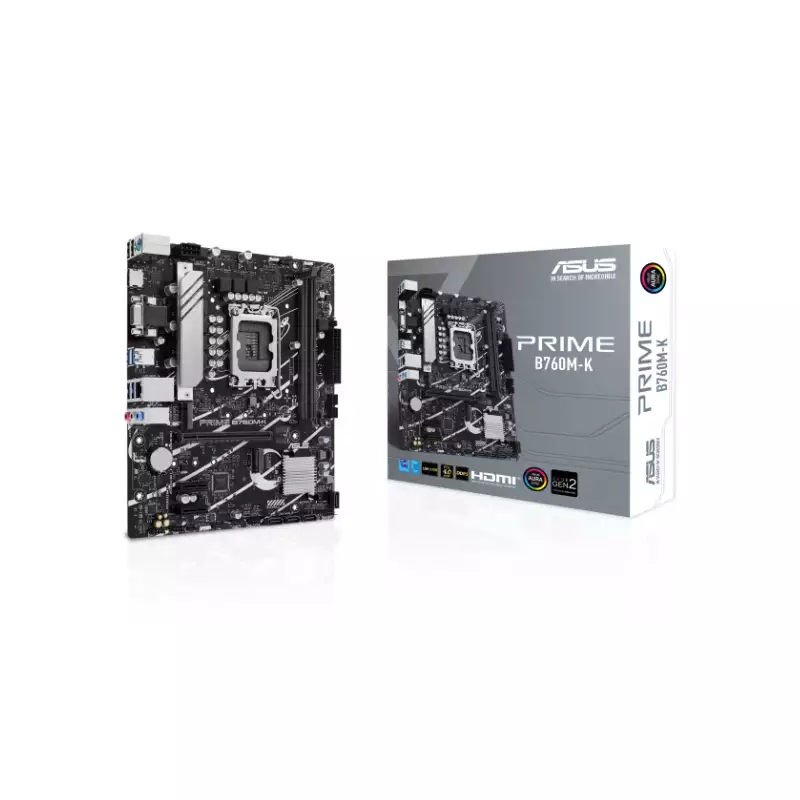

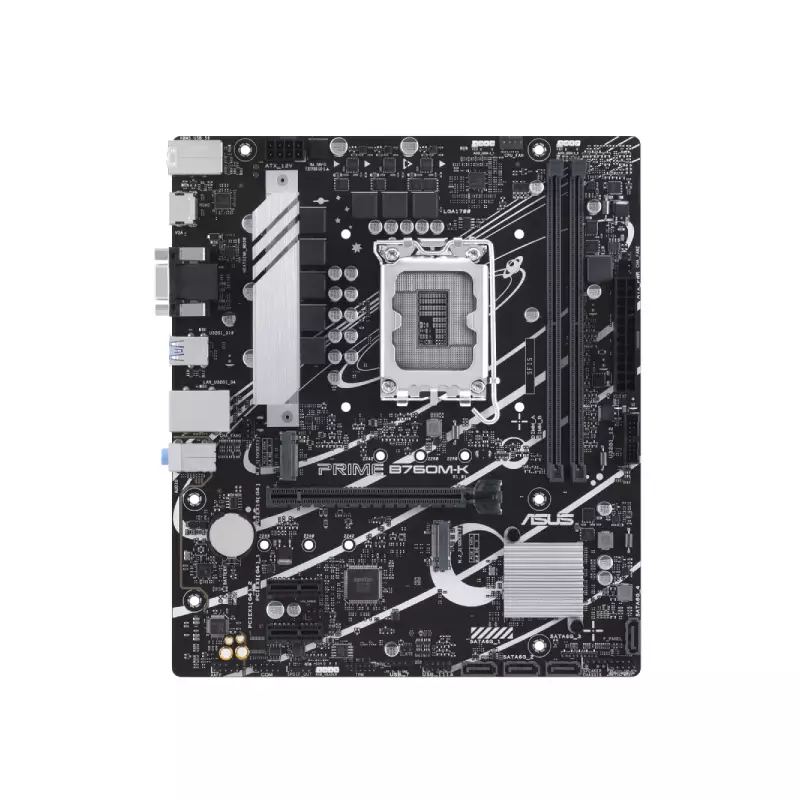

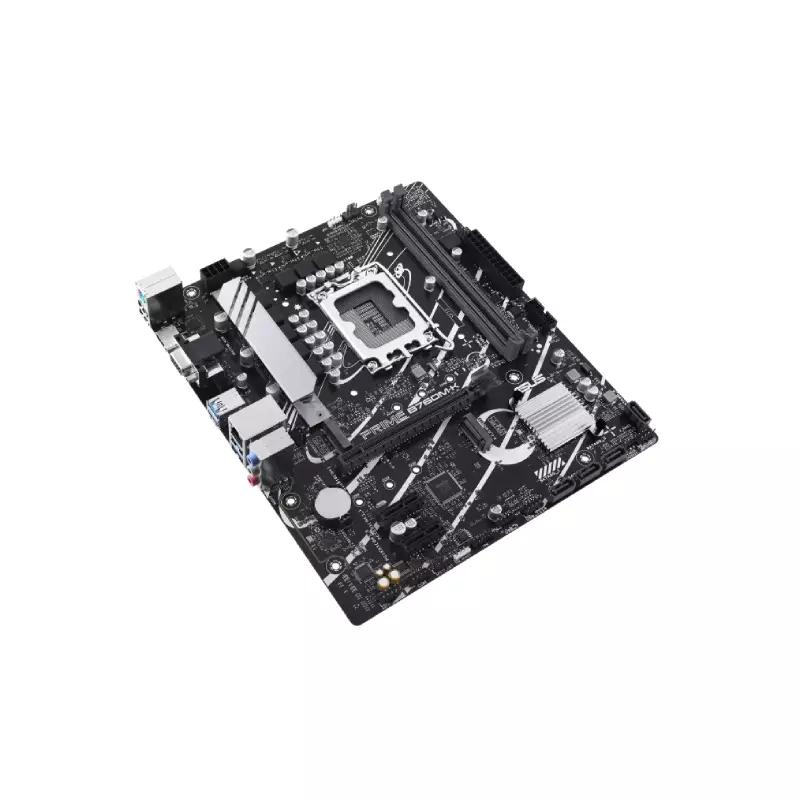

ASUS PRIME B760M-K DDR5 12TH AND 13TH GEN MICRO-ATX MOTHERBOARD
ASUS PRIME B760M-K DDR5 12TH AND 13TH GEN MICRO-ATX MOTHERBOARD
ASUS PRIME B760M-K DDR5 12TH AND 13TH GEN MICRO-ATX MOTHERBOARD - 1
ASUS PRIME B760M-K DDR5 12TH AND 13TH GEN MICRO-ATX MOTHERBOARD - 2
ASUS PRIME B760M-K DDR5 12TH AND 13TH GEN MICRO-ATX MOTHERBOARD - 3

ASUS PRIME B760M-K DDR5 12TH AND 13TH GEN MICRO-ATX MOTHERBOARD

0 Reviews
Stock : Discontinued
PID : P0122506524
Brand : Asus
Model : PRIME B760M-K
Warranty : 3 Years
  • Chipset: Intel B760
  • CPU Support: Intel 12th Gen & 13th Gen
  • Memory: 2 x DIMM slots, Max. 96GB, DDR5
  • Ethernet: 1 x Realtek 2.5Gb

SPECIFICATIONS

Processor

Supported CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Mainboard

Chipset Intel® B760 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI

Memory

Memory 2 x DIMM slots, Max. 96GB, DDR5
8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

Storage

Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports



Intel® 13th & 12th Gen Processors:

- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)



Intel® B760 Chipset:

- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

- 4 x SATA 6Gb/s ports

Graphics

Graphics 1 x VGA port

1 x HDMITM port

Audio & Microphone

Audio Realtek 7.1 Surround Sound High Definition Audio CODEC:

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback



Audio Features:

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

Ports

Slots Intel® 13th & 12th Gen Processors: 1 x PCIe 4.0 x16 slot

Intel® B760 Chipset: 2 x PCIe 4.0 x1 slots
Internal I/O Ports Fan and Cooling related:

- 1 x 4-pin CPU Fan header

- 2 x 4-pin Chassis Fan headers



Power related:

- 1 x 24-pin Main Power connector

- 1 x 8-pin +12V Power connector



Storage related:

- 2 x M.2 slots (Key M)

- 4 x SATA 6Gb/s ports



USB:

- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

- 2 x USB 2.0 headers support 3 additional USB 2.0 ports



Miscellaneous:

- 2 x Addressable Gen 2 headers

- 1 x Aura RGB header

- 1 x Clear CMOS header

- 1 x COM Port header

- 1 x Front Panel Audio header (AAFP)

- 1 x S/PDIF Out header

- 1 x Speaker header

- 1 x SPI TPM header (14-1pin)

- 1 x 10-1 pin System Panel header
USB Rear USB (Total 6 ports)

- 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)

- 2 x USB 2.0 ports (2 x Type-A)



Front USB (Total 5 ports)

- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

- 2 x USB 2.0 headers support 3 additional USB 2.0 ports

Software

Software Features Armoury Crate:

- Aura Sync

- Fan Xpert 2+

- Power Saving

- Two-Way AI Noise Cancellation



AI Suite 3:

- DIGI+ VRM

- PC Cleaner



ASUS CPU-Z:

Norton 360 Deluxe (60 Days Free Trial)

WinRAR



ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

Special Features

Special Features ASUS 5X PROTECTION III:

- DIGI+ VRM

- LANGuard

- Overvoltage Protection

- SafeSlot Core

- Stainless-Steel Back I/O



ASUS Q-Design:

- Q-DIMM

- Q-LED Core

- Q-Slot



ASUS EZ DIY:

- ProCool



ASUS Thermal Solution:

- VRM heatsink design



Aura Sync:

- Aura RGB header

- Addressable Gen 2 headers

Others

Other Features Ethernet: 1 x Realtek 2.5Gb

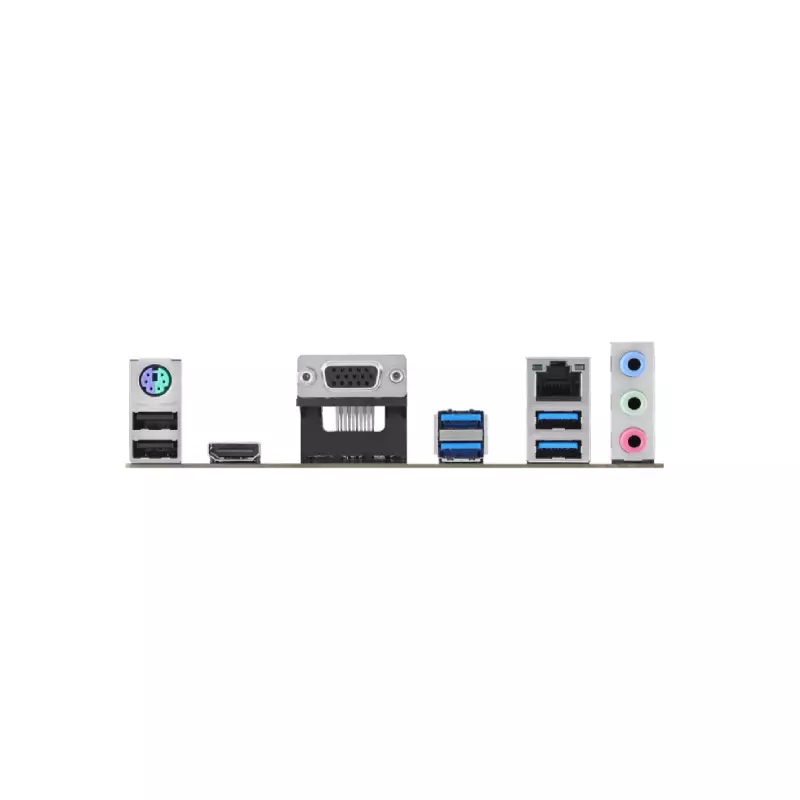

Back Panel I/O Ports:

- 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)

- 2 x USB 2.0 ports (2 x Type-A)

- 1 x VGA port

- 1 x HDMITM port

- 1 x Realtek 2.5Gb Ethernet port

- 3 x Audio jacks

- 1 x PS/2 Keyboard/Mouse combo port



Manageability: WOL by PME, PXE



Cables: 2 x SATA 6Gb/s cables



Operating System: Windows® 11, Windows® 10 64-bit

Physical Specification

Form Factor mATX Form Factor

9.6 inch x 8.3 inch (24.4cm x 21.1cm)

Warranty Information

Warranty 3 Years

DESCRIPTION

ASUS PRIME B760M-K DDR5 12TH AND 13TH GEN MICRO-ATX MOTHERBOARD PRICE IN BD


The DDR5 Micro-ATX now available at  It is a high-performance motherboard designed for 13th G® Core™, 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors. It features an Intel® B760 Chipset and supports DDR5 memory modules with speeds up to 8000 MT/s. The motherboard has 2 DIMM slots, supporting up to 96 GB of system memory. The motherboard comes with an integrated graphics processor, supporting a maximum resolution of 4096x2160@60 Hz on HDMI. It also supports VGA output. For audio, it uses a Realtek 7.1 Surround Sound High Definition Audio CODEC and supports jack detection, multi-streaming, and front-panel jack retasking. The motherboard has multiple expansion slots, including a PCIe 4.0 x16 slot and two PCIe 4.0 x1 slots. It also has multiple storage interfaces, including two M.2 slots and four SATA 6Gb/s ports. The motherboard supports USB 3.2 Gen 1 and USB 2.0 ports, both on the back panel and through internal USB headers. The motherboard uses ASUS’s exclusive software like Armoury Crate, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancellation, AI Suite 3, DIGI+ VRM, PC Cleaner, ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), and WinRAR.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASUS PRIME B760M-K DDR5 12TH AND 13TH GEN MICRO-ATX MOTHERBOARD Price in Bangladesh 2026 ?

The Asus PRIME B760M-K Price in BD is 16,800৳ . This ASUS PRIME B760M-K DDR5 12TH AND 13TH GEN MICRO-ATX MOTHERBOARD Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus PRIME B760M-K by 16,800৳ and its regular price is 21,000৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
