ASUS PRIME B760M-A D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD
ASUS PRIME B760M-A D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD
ASUS PRIME B760M-A D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD - 1
ASUS PRIME B760M-A D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD - 2
ASUS PRIME B760M-A D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD - 3

ASUS PRIME B760M-A D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD

0 Reviews
Stock : Discontinued
PID : P0122506455
Brand : Asus
Model : PRIME B760M-A D4
Warranty : 3 Years
  • Chipset: Intel® B760 Chipset
  • Memory: 4 x DIMM, Max. 128GB
  • Graphics: 1 x DisplayPort
  • BIOS: 128 Mb Flash ROM

SPECIFICATIONS

Processor

Supported CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Mainboard

Chipset Intel® B760 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(
OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/
2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

Storage

Supported Storage Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*

Intel® 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® B760 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Graphics

Graphics 1 x DisplayPort**

2 x HDMI® ports***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI® 2.1.

Networking & Connectivity

LAN 1 x Realtek 2.5Gb Ethernet

Audio & Microphone

Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

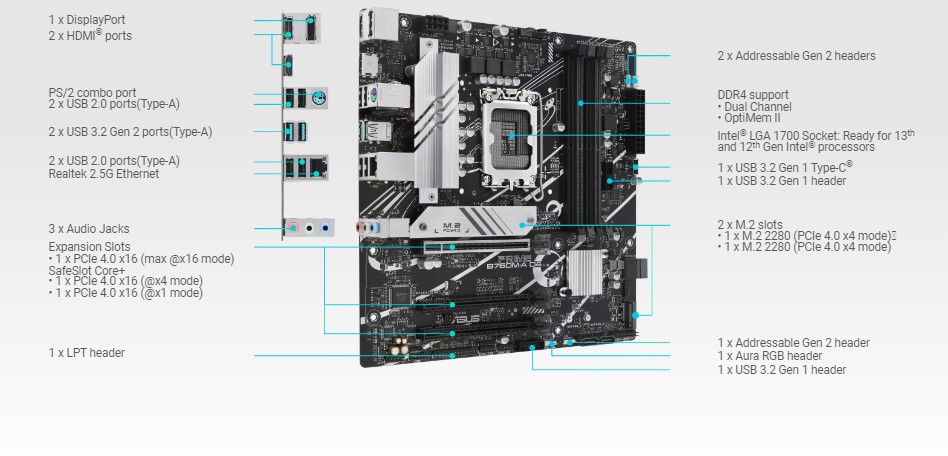

Ports

Slots Intel® 13th & 12th Gen Processors

1 x PCIe 4.0 x16 slot

Intel® B760 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 4.0 x16 slot (supports x1 mode)
Internal I/O Ports Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

2 x USB 2.0 headers support 4 additional USB 2.0 ports

1 x USB 2.0 header supports 1 additional USB 2.0 port

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x LPT header

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

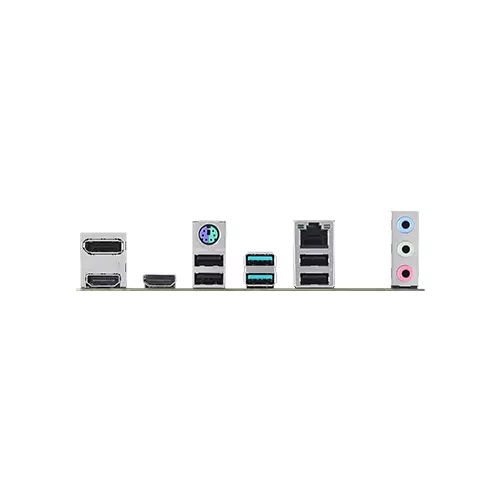

External I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A )

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

2 x HDMI® ports

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port
USB Rear USB (Total 6 ports)

2 x USB 3.2 Gen 2 ports (2 x Type-A )

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 10 ports)

2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

2 x USB 2.0 headers support 4 additional USB 2.0 ports

1 x USB 2.0 header supports 1 additional USB 2.0 port
HDMI 2 x HDMI® ports

Software

Software Features ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- Fan Xpert 2+

- Power Saving

AI Suite 3

- Digi+ VRM

- PC Cleaner

ASUS CPU-Z

Norton Deluxe (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

Special Features

Special Features ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage Protection

- SafeSlot Core+

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-LED Core

- Q-Slot

ASUS Thermal Solution

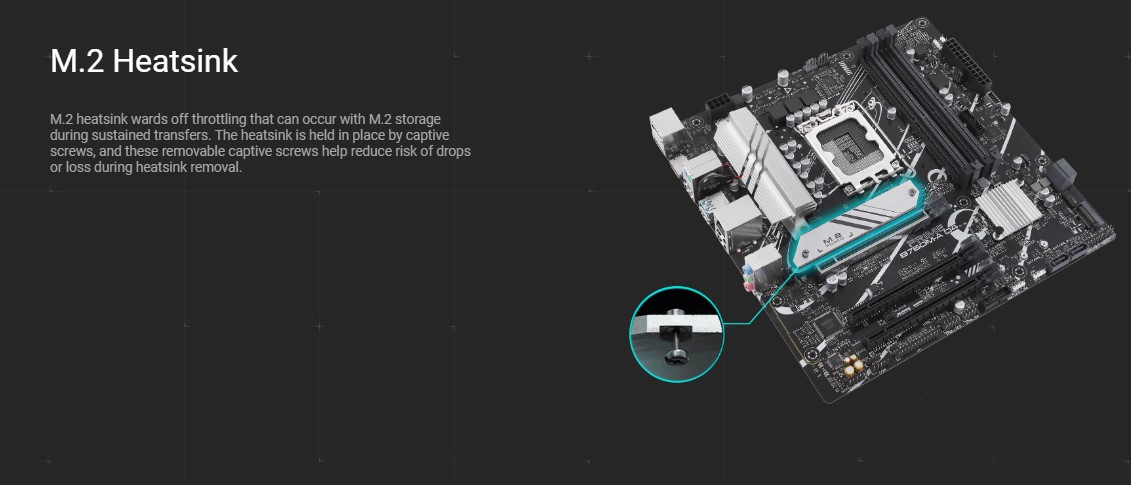

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- ProCool

Aura Sync

- Aura RGB header

- Addressable Gen 2 headers

Others

Other Features Manageability: WOL by PME, PXE



Accessories:



Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 Rubber Package

1 x Screw package for M.2 SSD

Documentation

1 x User guide



Operating System: Windows® 11, Windows® 10 64-bit

Physical Specification

Form Factor mATX Form Factor
Dimension 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Warranty Information

Warranty 3 Years Warranty

DESCRIPTION

ASUS PRIME B760M-A D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD

The ASUS PRIME B760M-A D4 DDR4 12th and 13th Gen ATX Motherboard is a high-performance motherboard designed for Intel Socket LGA1700 processors. It features the Intel B760 chipset, which supports up to 128GB of DDR4 memory with speeds up to 5333MHz (OC). The motherboard also includes dual-channel memory architecture, Intel Extreme Memory Profile (XMP), and OptiMem II for improved stability and performance. In terms of graphics, the motherboard has one DisplayPort and two HDMI ports, which support 4K@60Hz and are ideal for gaming or multimedia applications. Expansion slots include one PCIe 4.0 x16 slot for 13th & 12th Gen processors, and an additional PCIe 4.0 x16 slot and PCIe 4.0 x1 slot for the Intel B760 Chipset. The motherboard also offers plenty of storage options with two M.2 slots and four SATA 6Gb/s ports, which support both Intel Rapid Storage Technology and SATA RAID 0/1/5/10.

Additionally, it features a Realtek 2.5Gb Ethernet port and a range of USB ports, including front and rear USB 3.2 Gen 2 ports, front and rear USB 2.0 ports, and headers for additional USB ports. Other key features of the ASUS PRIME B760M-A D4 DDR4 12th and 13th Gen ATX Motherboard include Realtek 7.1 Surround Sound High Definition Audio CODEC, ASUS 5X PROTECTION III for enhanced durability and reliability, ASUS EZ DIY for easy installation and management, and Aura Sync for customizable RGB lighting. The motherboard comes in the mATX form factor with dimensions of 9.6 inches by 9.6 inches (24.4cm x 24.4cm) and is compatible with Windows 11 and Windows 10 64-bit operating systems. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Asus Motherboard available at Techland BD is well recognized. The large selection of Motherboard available at Techland BD is well recognized.
