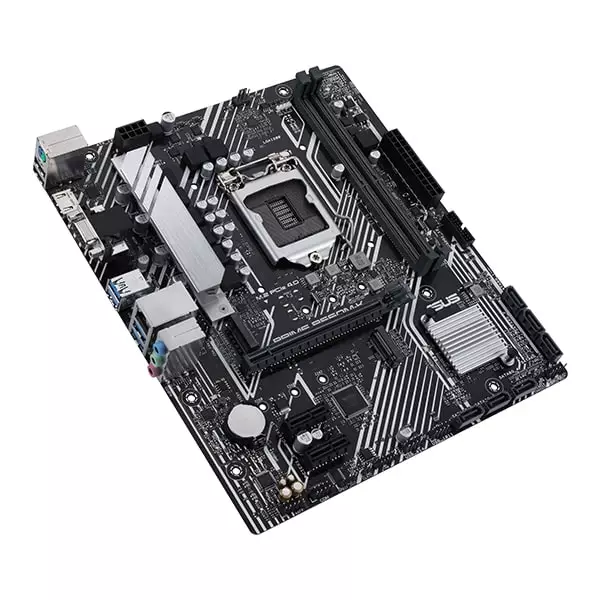

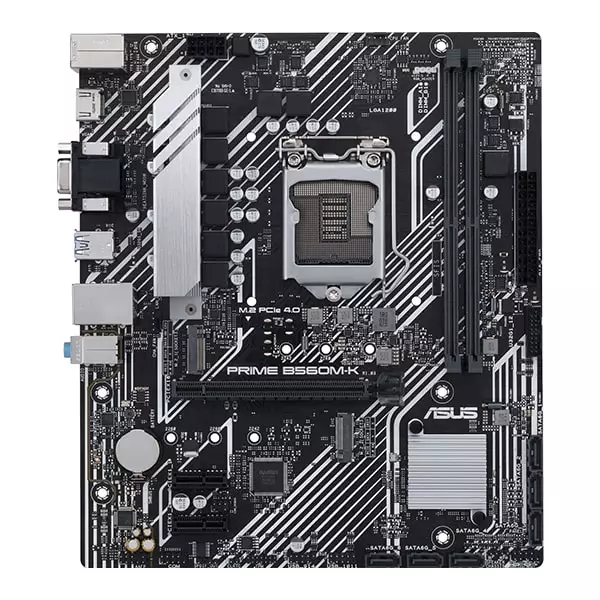

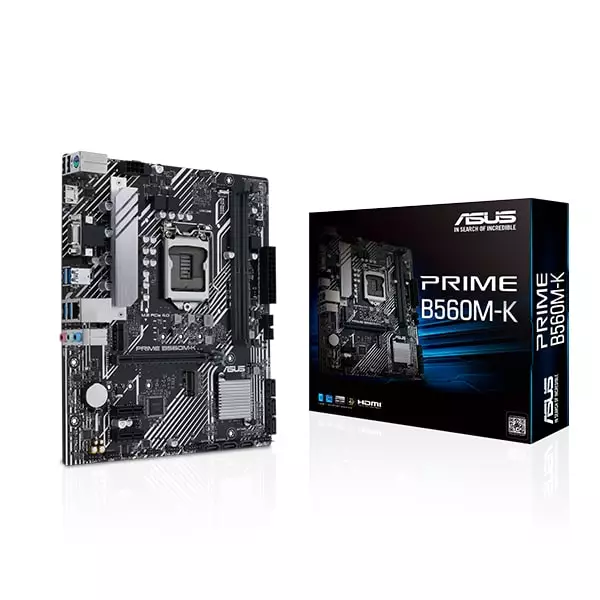

Asus PRIME B560M-K Motherboard Specification
|
Socket and chipset
| - Socket: Intel 1200
- Chipset: Intel B560
|
Format & functions
| - Motherboard form factor: mATX (Micro ATX)
- Basic functions: Integrated network card, Integrated sound card, M.2 , PCI Express 4.0, For CPU with integrated GPU, Serial ATA III
|
Memory
| - Design: DIMM
- Memory type: DDR4
- Number of RAM slots: 2 ×
- Connection Mode: Dual-channel
- Max. frequency (OC): 5,000 MHz
|
Advanced parameters
| - Sound card type: Realtek ALC897
- Number of sound card channels: 8
|
Connectors
| External: - HDMI, Jack, PS/2, RJ-45 (LAN) 1Gbps, USB 2.0, USB 3.2 Gen 1, VGA (D-Sub)
Internal: - COM bracket, M2 Socket, RGB LED Header, S/PDIF bracket, Serial ATA III, TPM, USB 2.0 bracket, USB 3.2 Gen 1 bracket
- PCI Express: x16 1×
- PCI Express: x1 2×
- M.2 slots: 2piece(s)
- USB 2.0: 2×
- USB 3.2: Gen1(USB 3.0) 4×
- Serial ATA III: 6x
|
Special Features
| ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS Lighting Control -RGB header |
BIOS
| 128 Mb Flash ROM, UEFI AMI BIOS
|
Asus PRIME B560M-K Motherboard Comes with 3 Years Warranty
|
ASUS PRIME B560M-K Motherboard Overview:
ASUS PRIME B560M-K Motherboard is expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. Boasting a robust power design, comprehensive cooling solutions, and intelligent tuning options, ASUS PRIME B560M-K Motherboard provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. This motherboard by ASUS is built on the Intel B560 chipset, and it uses the Intel 1200 for inserting the processor. Classically, it is also equipped with a sound card that handles 8 channels When housing this particular model, it is necessary to use a PC chassis which will fit the mATX (Micro ATX) format. It combines smaller dimensions with a host of connectors for the ideal home computer setup.
ASUS PRIME B560M-K Motherboard Key Features
- Utilizes Intel 1200 socket and the Intel B560 chipset
- Format of ASUS PRIME B560M-K: mATX (Micro ATX)
- Integrated sound card for 8 channels
- For random access memory type DDR4 in DIMM form
- The motherboard can hold 2 × memory modules, which use Dual-channel
ASUS PRIME B560M-K Motherboard Connectivity
For the very important RAM, this motherboard by ASUS has a total of 2 slots. You'll be able to attach DDR4 type RAM in DIMM format. One can connect them in Dual-channel mode. It can support models with a frequency of up to 5000 MHz.
The ASUS PRIME B560M-K and its adaptors
The motherboard will have no problem connecting to your graphics card with the PCI Express 16x slot. The internal interface also has the popular M.2 connector. It has 2.
