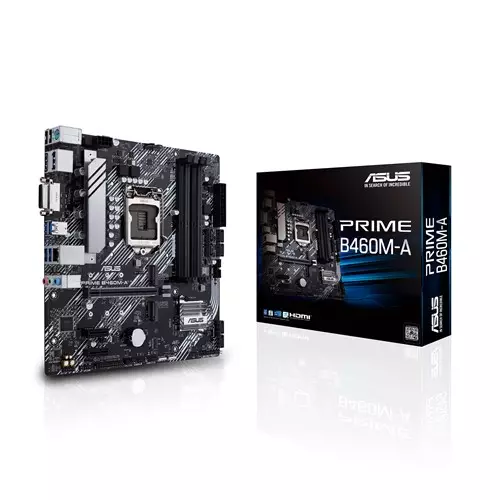

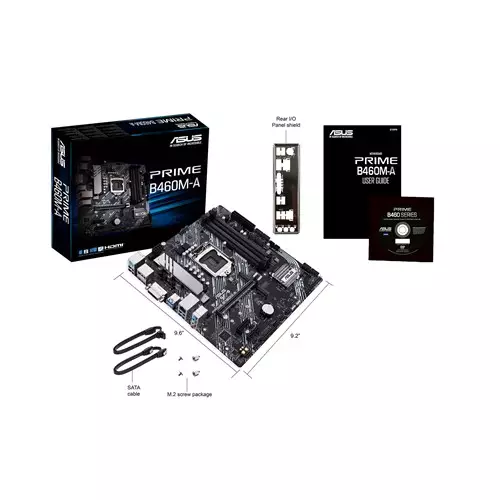

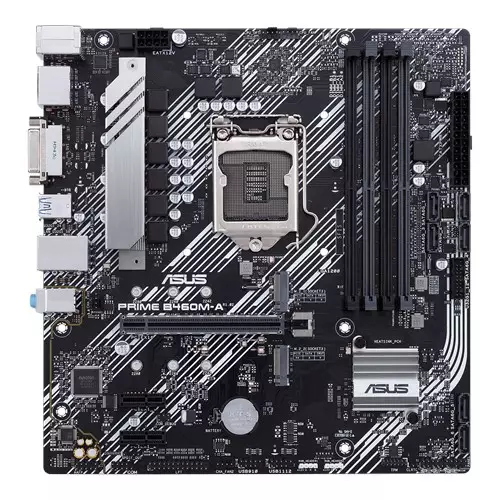

ASUS PRIME B460M-A Intel 10th gen Motherboard
ASUS PRIME B460M-A Intel 10th gen Motherboard
ASUS PRIME B460M-A Intel 10th gen Motherboard - 1
ASUS PRIME B460M-A Intel 10th gen Motherboard - 2
ASUS PRIME B460M-A Intel 10th gen Motherboard - 3

ASUS PRIME B460M-A Intel 10th gen Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061878
Brand : Asus
Model : PRIME B460M-A
Warranty : 3 Years
  • Chipset: Intel B460
  • Supported CPU: Intel 10th Gen
  • LAN: Realtek RTL8111H
  • Form Factor: mATX Form Factor

SPECIFICATIONS

Processor

Supported CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Mainboard

Chipset Intel® B460
BIOS 128 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory Intel® B460 Chipset
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Supports Intel® Extreme Memory Profile (XMP)
OptiMem

Storage

Supported Storage Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® B460 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready

Graphics

Graphics Integrated Graphics Processor- Intel® UHD Graphics support
1 x DisplayPort 1.4
1 x HDMI 1.4b
1 x DVI-D

Networking & Connectivity

LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard

Audio & Microphone

Audio Realtek® ALC887 7.1-Channel High Definition Audio CODEC *
- Supports: Jack-detection, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Ports

Internal I/O Ports 1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3
1 x SPI TPM header
1 x LPT header
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header

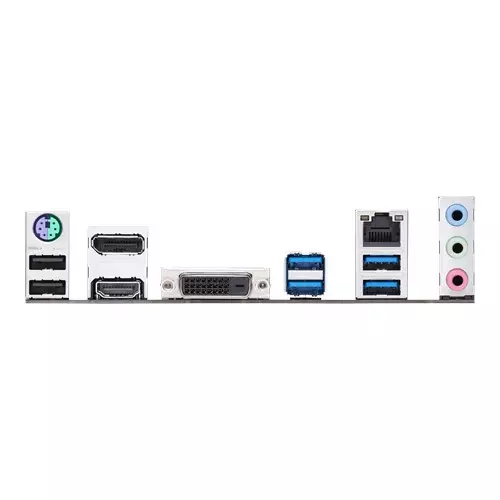

External I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
USB Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
4 x USB 2.0 port(s)

Physical Specification

Form Factor mATX Form Factor
Dimension 9.6 inch x 9.2 inch ( 24.4 cm x 23.4 cm )

Warranty Information

Warranty 03 Years Warranty

DESCRIPTION

ASUS PRIME B460M-A Motherboard Price in Bangladesh


The ASUS Prime series was designed to maximize the performance of Intel® Core processors from the 10th generation. Prime B460 series motherboards provide everyday users and DIY PC builders with a variety of performance-tuning choices via included software and hardware, as well as robust power architecture, extensive cooling solutions, and intelligent tuning options. The ASUS Prime series starts with a solid foundation of controls. The Prime B460 motherboard comes with a variety of tools for fine-tuning every area of your system, allowing you to adjust performance parameters to suit your workflow and increase productivity. Multiple onboard heatsinks and a variety of hybrid fan headers are built into the Prime B460 series to keep your machine cool and stable even under the most demanding workloads. THE PRIMARY B460 SERIES COOLING SYSTEM.The B460 series is designed to support the additional cores and greater bandwidth of Intel Core CPUs from the 10th Generation. Your system will be ready for action with reliable power, intelligent cooling, and versatile transfer options thanks to a B460 motherboard, which provides the foundation to increase daily productivity. The latest Intel processors now have free access to memory bandwidth thanks to changes to the motherboard's trace routing.
